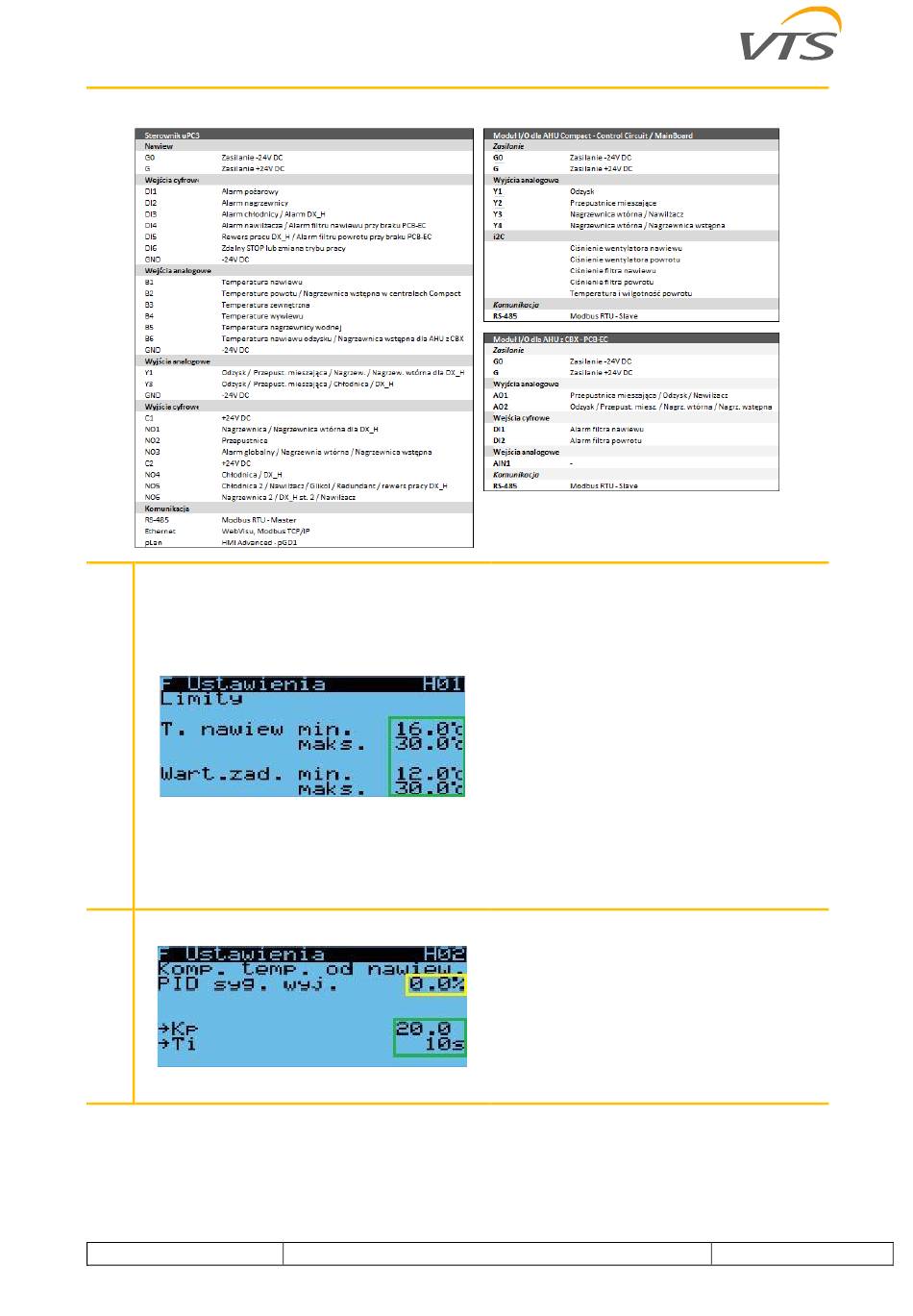

H01
H02
www.vtsgroup.com
Inputs / outputs uPC3
•
•
•
•
•
•
•
OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
"Minimum supply air
minimum supply air temperature (sensor B2),
which is the reference for the supply air
temperature compensation
room/exhaust temperature control (minimum
supply air temperature that the controller can
automatically set)
"Maximum supply air temperature" -
maximum supply air temperature, which is the
reference for the supply air temperature
compensation controller for room/exhaust
temperature control (maximum supply air
temperature that the
automatically set) and above which an alarm
will occur
"Minimum setpoint" - minimum possible
leading temperature setting
"Maximum setpoint" - maximum settable
leading temperature setpoint
"PID output signal" - current control of the
supply air temperature compensation PID
controller for room/extract air temperature
control
"Kp" - supply air temperature compensation
PID controller gain factor for room/exhaust
temperature control
"Ti" - doubling time of the supply air
temperature compensation PID controller for
room/extract air temperature control
temperature" -
controller for
controller can
