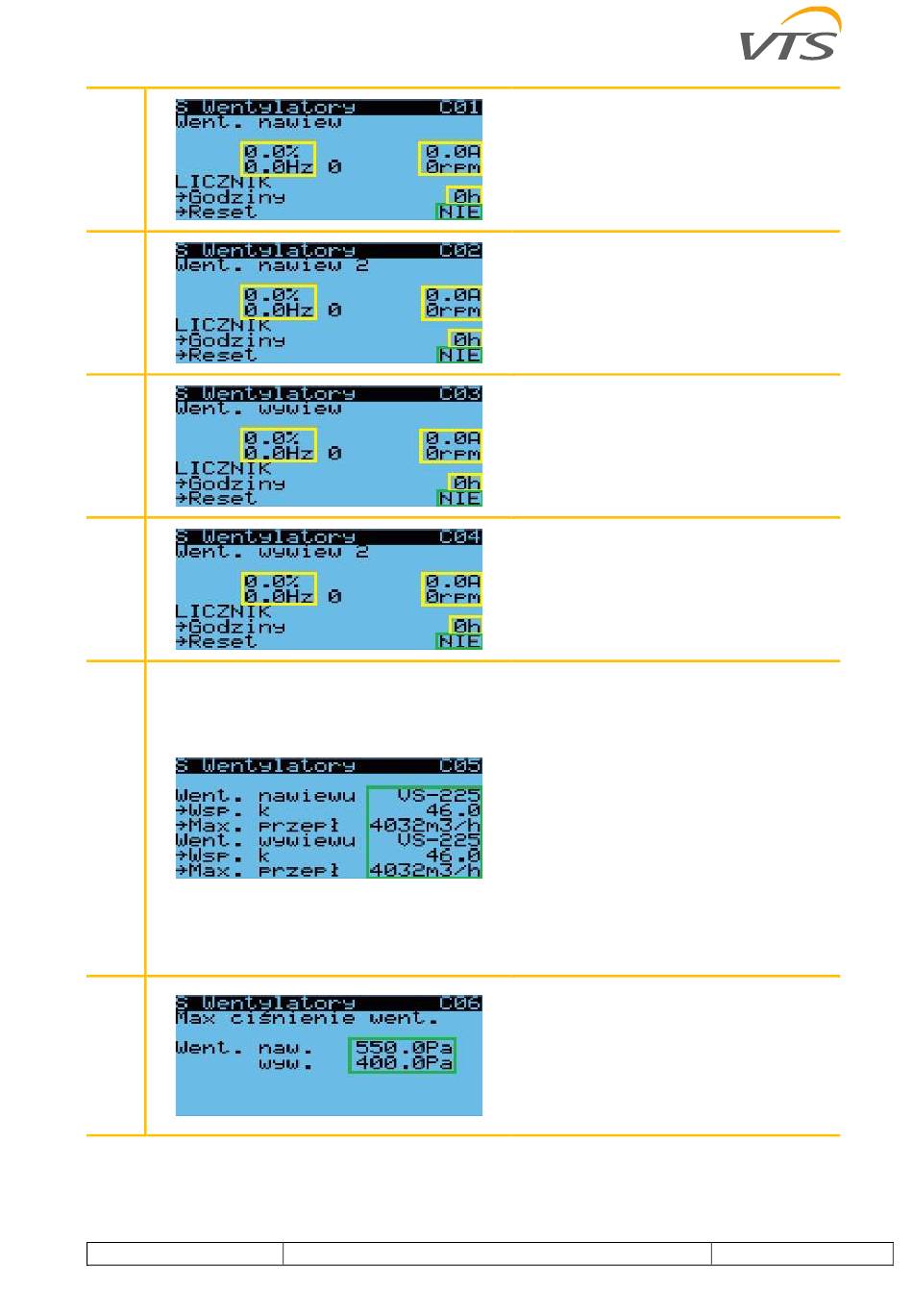

"Supply fans" -
parameters of the supply fans (control,
current, frequency, speed)
•
"Hours" - counter of operating time of
supply fans
•
"Reset" - resetting the operating time
counter of the supply fans
•
"Supply fan 2" -
parameters of the redundant supply fan
(control, current, frequency, speed)
•
"Hours" - operating time counter for the
redundant supply fan
•
"Reset" - resetting the operating time
counter of the redundant supply fan
•
"Exhaust fans" -
parameters of the exhaust fans (control,
current, frequency, speed)
•
"Hours" - extractor fan operating time
counter
•
"Reset" - resetting the operating time
counter of the exhaust fans
•
"Supply fan 2" -
parameters of the redundant exhaust fan
(control, current, frequency, speed)
•
"Hours" - operating time counter of the
redundant exhaust fan
•
"Reset" - resetting the operating time
counter of the redundant exhaust fan
•
"Supply fan" - type of supply fan
•
"k-factor" - correction factor for the selected
type of supply fan (it is possible to enter a
value manually after selecting "Adjusted" as
the value of the "Supply/exhaust fan"
parameter)
•
"Maximum flow" - the maximum flow in the
supply path of a given AHU, as read from its
technical data sheet, which is the reference
for the CAV controller
•
"Exhaust fan" - type of exhaust fan
•
"k-factor" - correction factor for the selected
type of extractor fan
•
"Maximum flow" - the maximum flow in the
extract duct of a given AHU, as read from its
technical card, which is the reference for the
CAV controller
•
"Supply fan" - the maximum supply
pressure of a given AHU, as read from its
technical data sheet, which is the reference
for the VAV controller
•
"Exhaust fan" - the maximum exhaust
pressure of a given AHU, as read from its
technical data sheet, which is the reference
for the VAV controller
current operating
current operating
current operating
current operating
