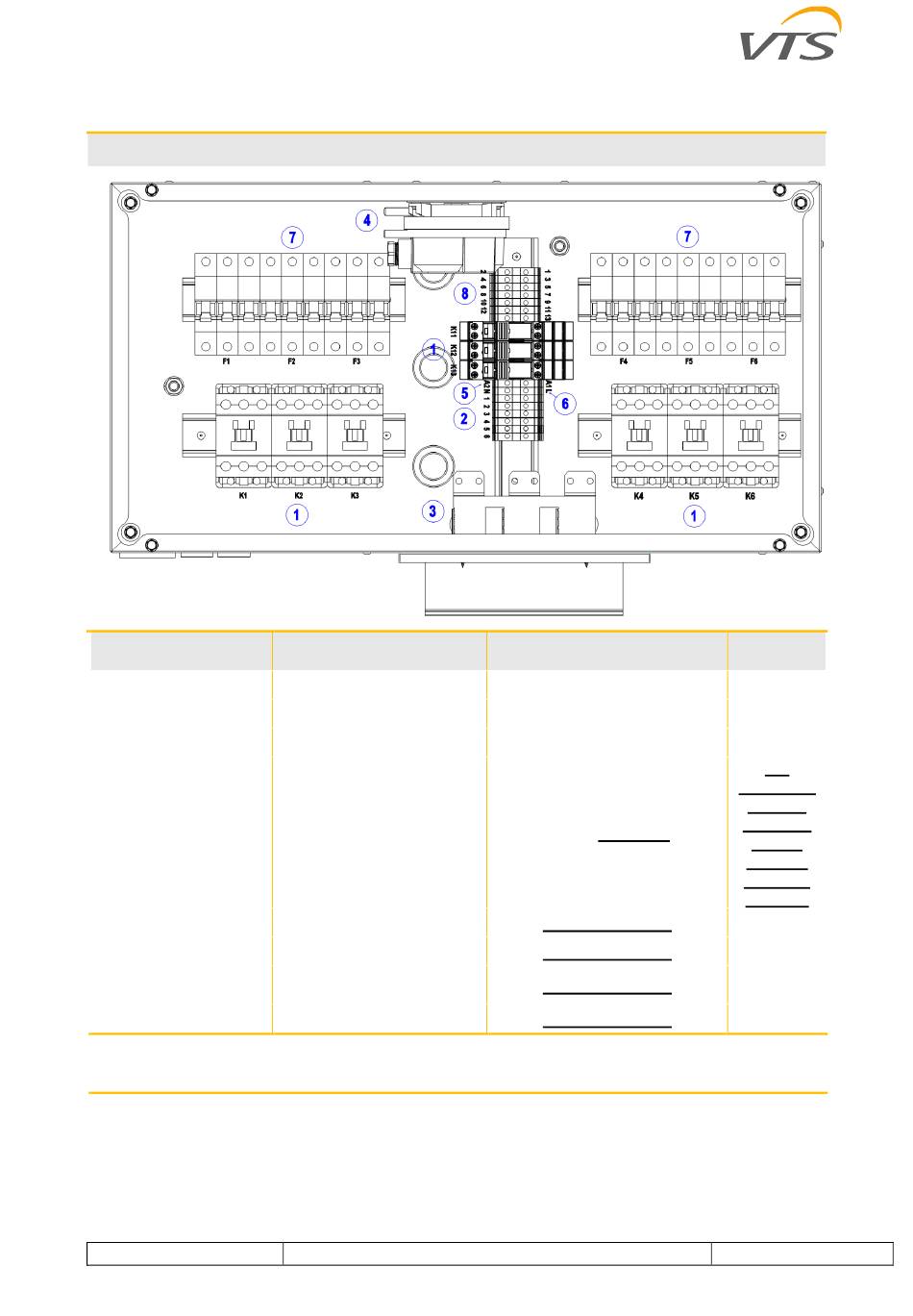

CONNECTION OF ELECTRIC HEATER WITH 4X18KW SWITCHBOARD
Designation
1
2
3
4
5
6
7
8
The switchgear views shown are intended to illustrate the arrangement of components inside the
switchgear enclosure. Please note that they are for illustrative purposes only - when making
electrical connections, always refer to the electrical diagrams.
www.vtsgroup.com
Description
relays / contactors
heater terminals
heaters
pressure switch
signal terminals - alarm
power terminals 1f
overcurrent circuit
breakers
signal terminals - control
OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
Connection
factory
factory
factory
factory / installer
on site / installer
on site / installer
on site / installer
on site / installer
Comment
s
-
-
-
the
connectio
n of the
pressure
switch
tubes is
made by
the user
-
-
-
-
33
