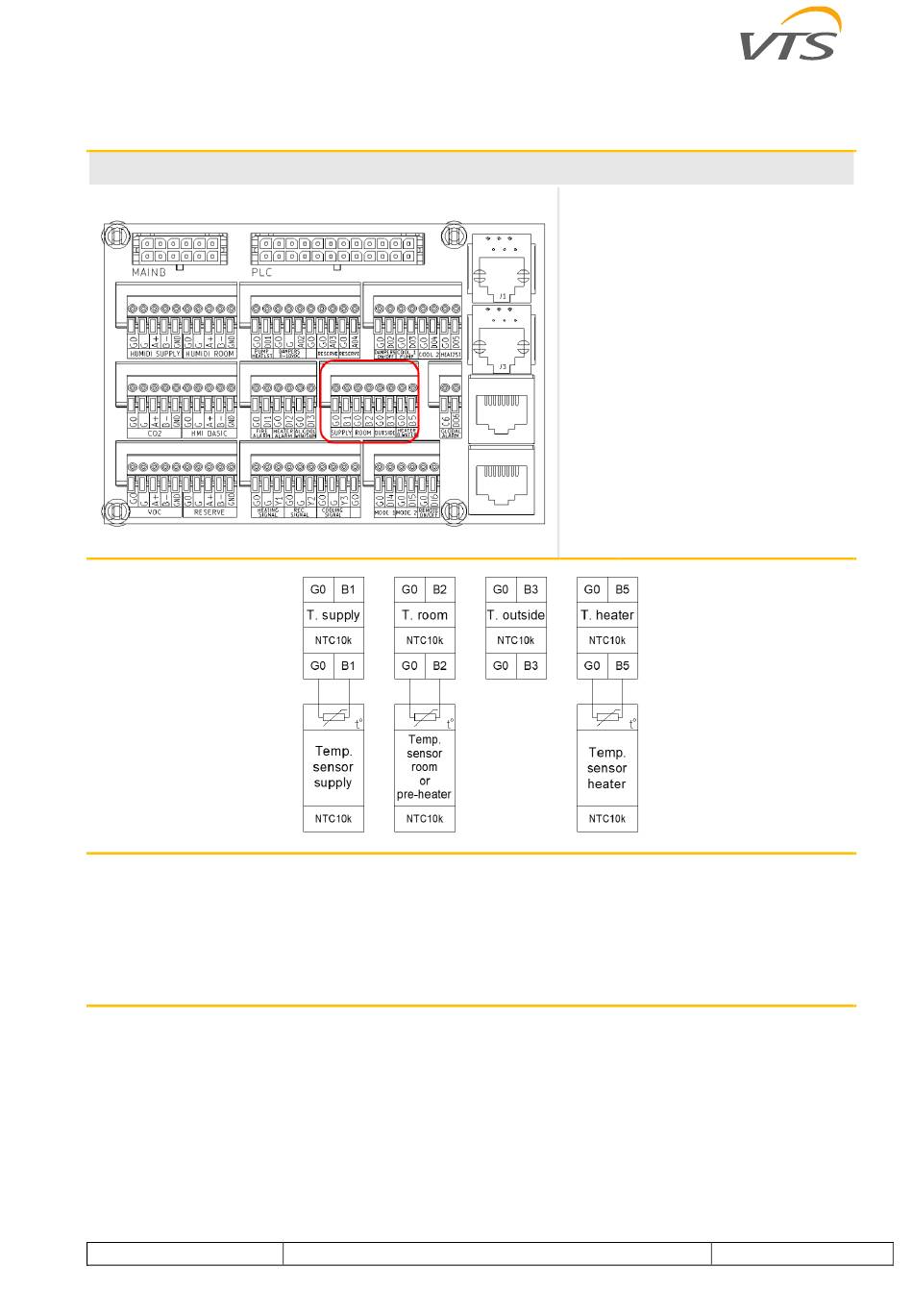

6.4 ANALOGUE INPUTS (NTC10K)

ANALOGUE INPUTS (NTC10K)
B2* - Exhaust air temperature sensor which is factory fitted at the heat recovery. If a room sensor is
used as the lead sensor (other than HMI BASIC), this sensor must be connected to B2 on terminal
1 T1
B3** - Factory connections are made outside the T1 terminal directly at the uPC3 controller
B5*** - Touch sensor for water heater temperature which is assigned to one heater only (pre- or
main heater). Priority of use is given to the pre-heater.
www.vtsgroup.com
OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
Duct temperature sensor -
B1
supply air
B2*
Temperature sensor - exhaust
air
Duct sensor behind the pre-
B2/6
heater
B3**
Temperature sensor - outside
air
Touchscreen water heater
B5***
temperature sensor.
42
