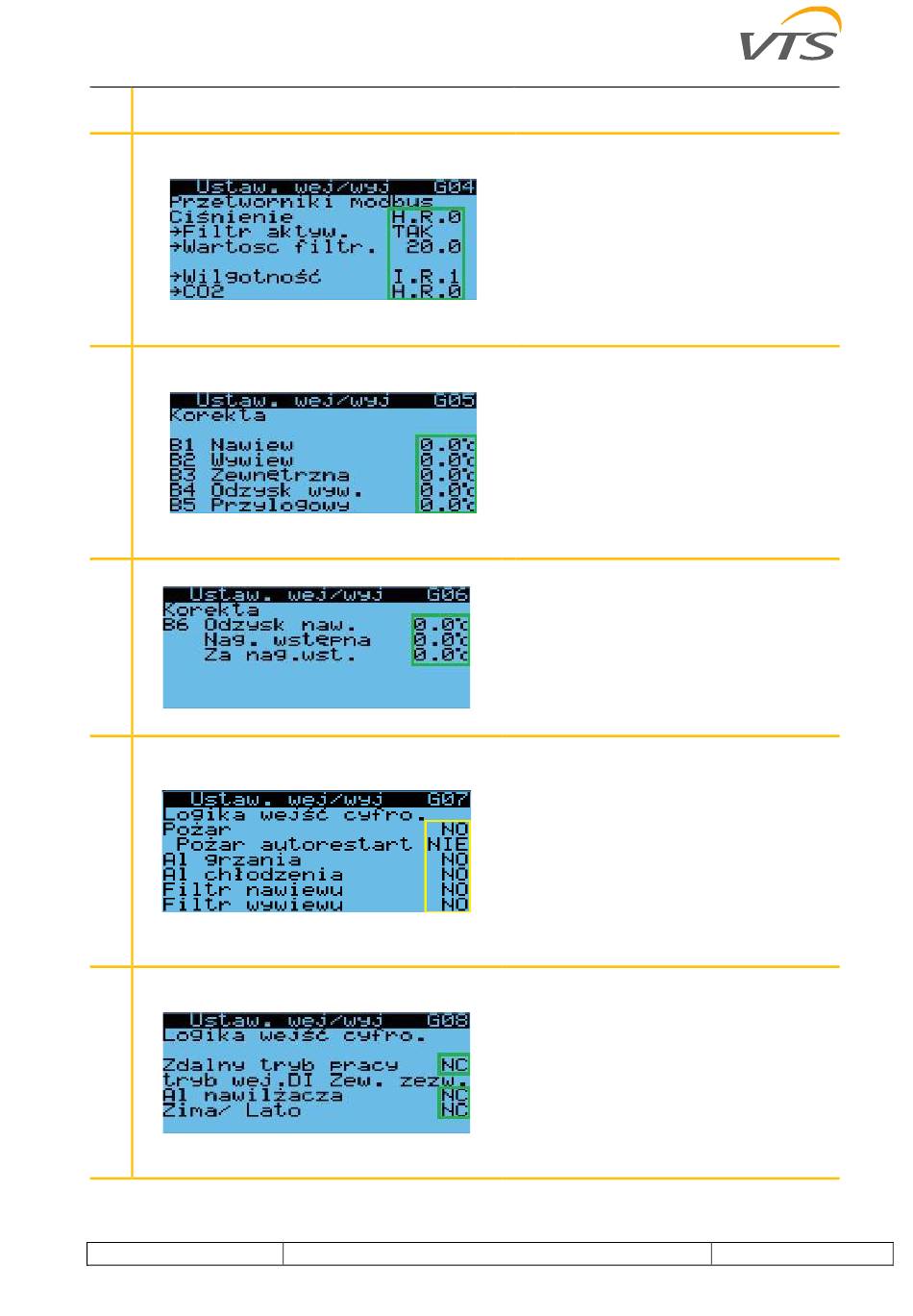

"Exhaust humidity" - activation of the
ducted exhaust humidity transmitter
"Pressure" - type of supply and exhaust
duct pressure transmitters
"Filter
activation"
consecutive
readings
transducers
"Filter value" - maximum value of pressure
change during successive readings for the
averaging function
"Humidity" - type of ducted supply and
extract humidity transmitters
"CO2" - CO2 channel level transmitter type
"B1 Supply air" - correction (offset) of the
supply air temperature sensor
"B2 Exhaust" - correction of the exhaust
temperature sensor
"B3 External" - correction of the external
temperature sensor
"B4 Recovery Exhaust" - correction of the
exhaust temperature sensor after recovery
"B5
Contact"
-
temperature sensor for the return flow
medium of the main water heater
"B6 Recovery air supply" - correction (offset)
of the supply air temperature sensor after
recovery
"Pre-heater" - correction of the temperature
sensor of the return flow medium of the water
pre-heater (B5)
"Behind the pre-heater" - Correction of the
temperature sensor behind the pre-heater
(B2/B6)
"Fire" - digital fire alarm input logic
"Fire autorestart" - fire alarm autoreset
function
"Heating alarm" - digital input logic of the
heater
"Cooling alarm" - cooler digital input logic
"Supply air filter" - logic of the digital input of
the supply air filter pressure switch (for uPC3
or EC-PCB depending on configuration - not
used when Control Circuit is active)
"Supply air filter" - digital input logic of the
exhaust filter pressure switch
"Remote operating mode" - Digital input
logic for remote mode change
"DI input mode" - Mode activated by the
digital
input
responsible
overriding the AHU operating mode (Eco /
Opty / Comf / external operation authorisation)
"Humidifier alarm" - digital humidifier alarm
input logic
"Winter / Summer" - logic of the digital input
responsible for the external AHU mode
override signal
-
averaging
of
from
pressure
Correction
of
the
for
remotely
110
