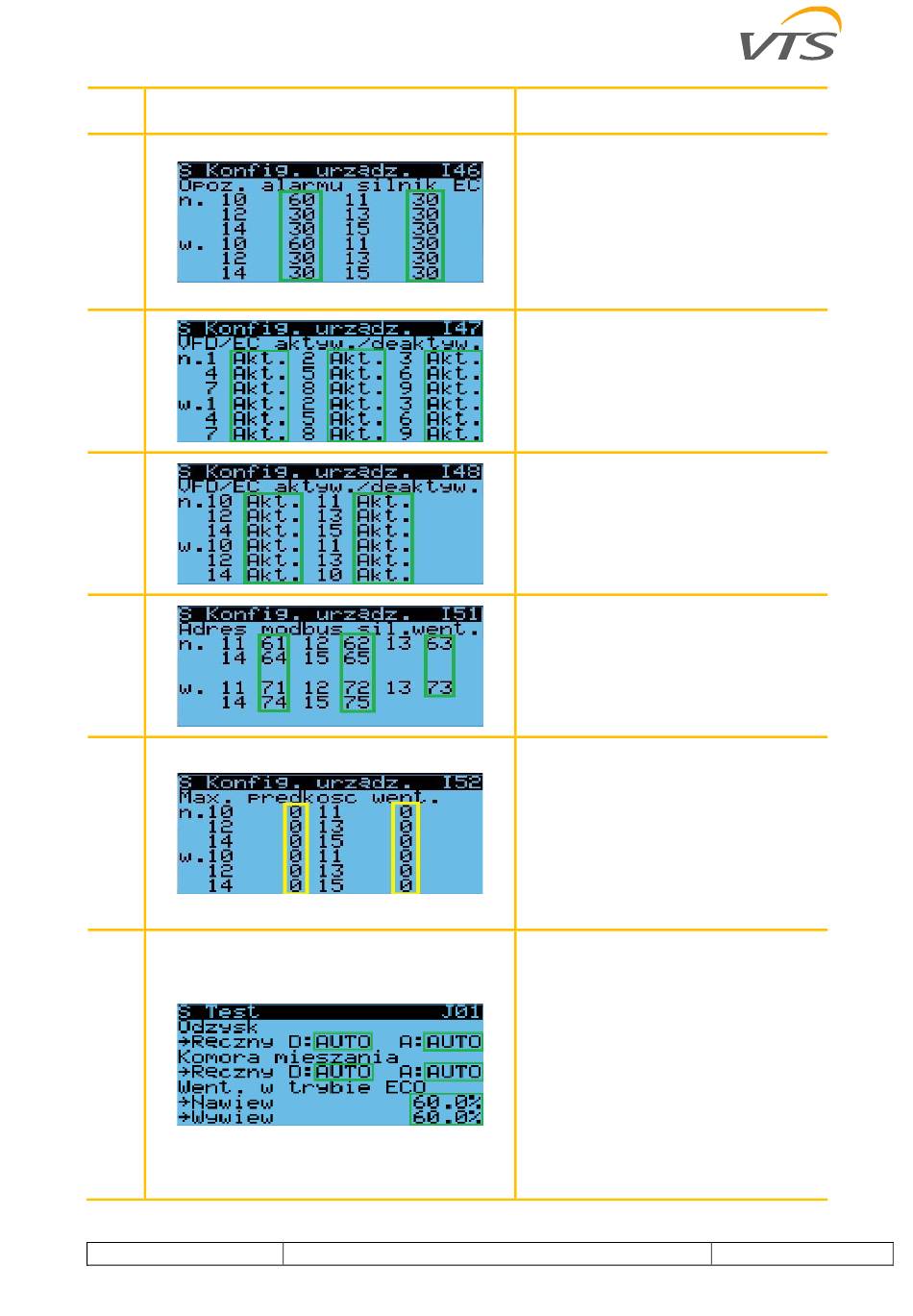

given exhaust EC motors in relation to
the time of their cause
•
"Air supply EC motor alarm delay" -
delay of activation of selected alarms
(lack of communication, IGBT, overload)
for given air supply EC motors in relation
to the time of their cause
•
"Exhaust EC motor alarm delay" -
delay of activation of selected alarms for
given exhaust EC motors in relation to
the time of their cause
•
"VFD / EC air supply activation /
deactivation" - activation or deactivation
of selected EC air supply motors in the
AHU
•
"VFD / EC activation / deactivation
exhaust" - activation or deactivation of
selected exhaust EC motors in the AHU
•
"VFD / EC air supply activation /
deactivation" - activation or deactivation
of selected EC air supply motors in the
AHU
•
"VFD / EC activation / deactivation
exhaust" - activation or deactivation of
selected exhaust EC motors in the AHU
•
"Modbus address
motors" - address of individual supply
fan motors on Modbus
•
"Modbus address of exhaust fan
motors" - address of individual exhaust
motors on Modbus
•
"Maximum speed of the supply fans" -
the maximum speed of the individual
supply EC motors set in their controllers,
which is the reference for adjustment by
the AHU controller
•
"Maximum speed of the exhaust fans"
- maximum speed of the individual
exhaust EC motors
controllers, which is the reference for the
control by the AHU controller
•
"Manual recovery
assignment of a value of 0/1 to the digital
output responsible for authorising the
recovery operation
•
"Manual recovery
assignment of 0-100% values to the
analogue output responsible for the
recovery control level
•
"Mixing chamber manual D" - manual
assignment of 0/1 value to the digital
output responsible for permitting the
operation of the mixing chamber (signal
for dampers)
•
"Mixing chamber manual A" - manual
assignment of 0-100% values to the
of supply fan
set in their
D" - manual
A" - manual
