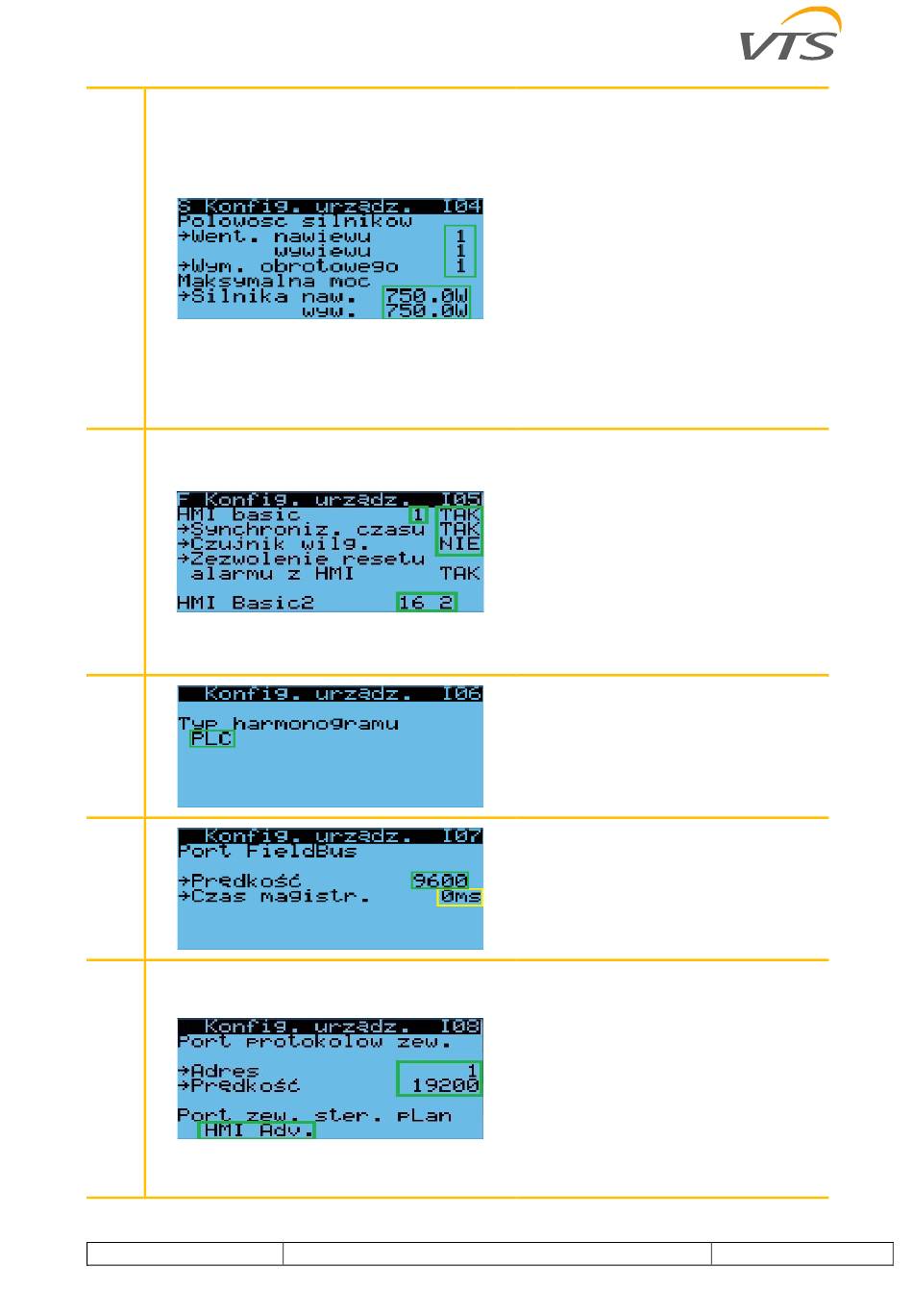

"Supply fan" - polarity of the supply fan
motors (the polarity setting is used to
display the frequency value in the
information screens accordingly - its
value can be read from the motor
nameplate)
•
"Exhaust fan" - exhaust fan motor
polarity
•
"Exhaust fan" - rotary recovery drive
motor polarity
•
"Supply motor" - maximum rated power
of the supply motors (the maximum
power setting is used to calculate the
current consumption of the motor in the
visualisation application accordingly)
•
"Extractor motor" - maximum rated
power of extractor motors
•
"HMI Basic" - address and activation of
HMI Basic
•
"Time synchronisation" - synchronising
the time of the HMI Basic with the AHU
controller
•
"Humidity sensor" - activation of the
HMI Basic humidity sensor (outside the
VTS offer)
•
"Permission of alarm reset from HMI".
- Activation of the possibility of resetting
AHU alarms from the HMI Basic
•
"HMI Basic 2" - address and stop bit of
HMI Basic 2
•
"Schedule type" - Selection of the
source of the work schedule executed by
the AHU between HMI Basic, controller
and no schedule
•
"Speed" - speed (baudrate) of the
Modbus RTU protocol of the controller
(correct value is 9600)
•
"Bus time" - Modbus RTU bus response
time
•
"Address" - address of the controller
used for communication using
external protocol
•
"Speed" - speed (baudrate) of the
external controller protocol
•
"External port of the pLan controller" -
type of protocol used by the controller's
pLan port (RJ11 socket)
[depending on the HMI selected, the value
of the pLan port parameter should be set
to HMI Advanced, HMI Touch or pGDx
respectively].
