setpoint is reached, after which it shuts
down
•
"Active freecoling / freeheating" -
activation of the freecoling / freeheating
option, which is the first cooling / heating
stage in favourable external conditions
(use of the relevant external temperature
to reach the setpoint)
[it is not possible to activate only cyclic
wake-ups or only night-time wake-ups -
increasing the StandBy time above 0
activates both of these functionalities].
•

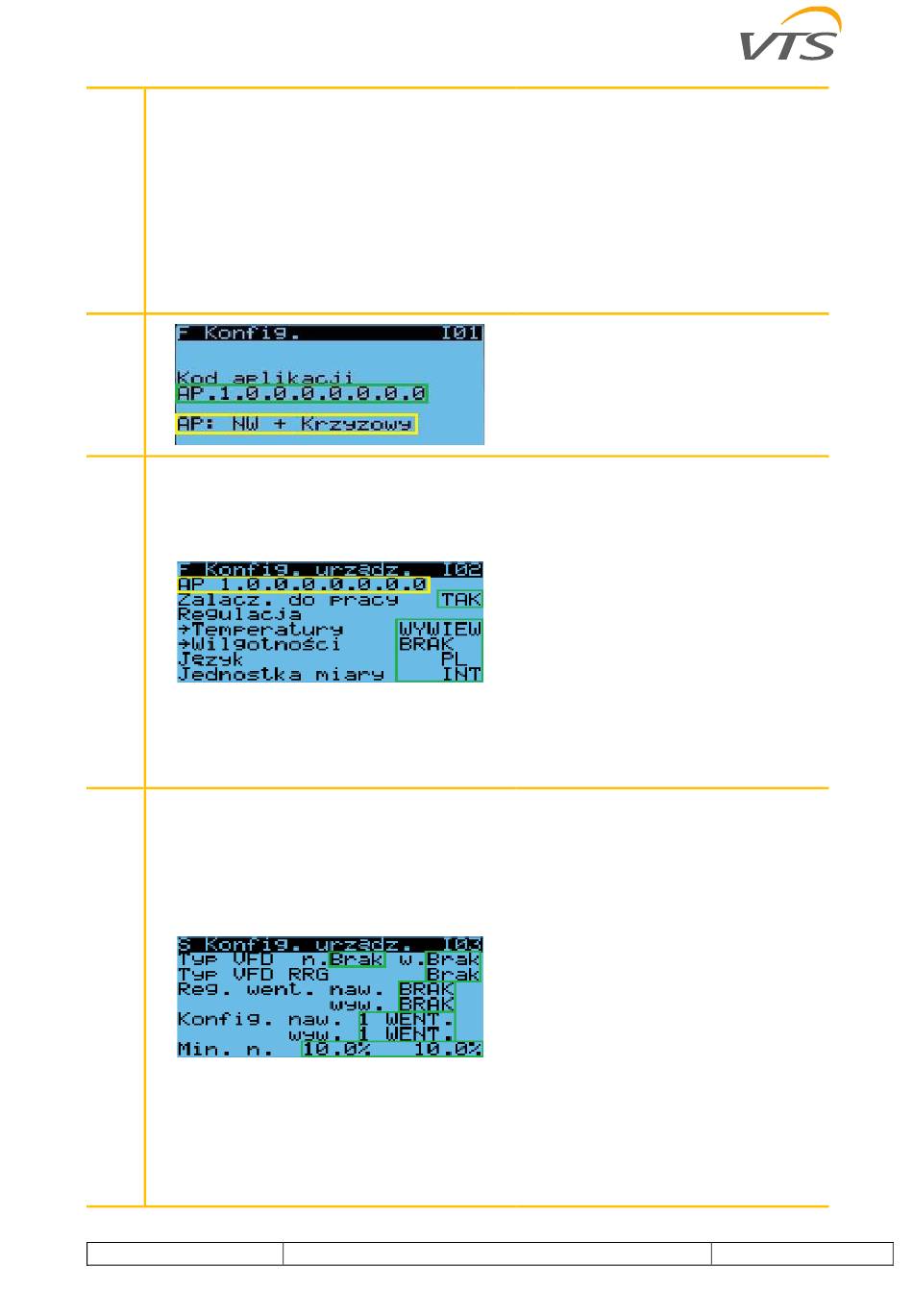

"Application code" - The code that
defines the type of control panel and the
functions it contains (read from the AHU
data sheet)
•
"Application code" - The code that
defines the type of control panel and the
functions it contains (read from the AHU
data sheet)
•
"Switch on for operation" - selection
between putting the control panel into
operation and switching it off
•
"Temperature control"
temperature sensor, used to determine
operating settings
•
"Moisture control" - a leading moisture
sensor, used to determine operating
settings
•
"Language" - language of the HMI
Advanced menu
•
"Unit of measurement" - system of
measurement units displayed in the
menu
•
"Supply VFD type" - type of supply fan
drive
•
"Exhaust VFD type" - exhaust fan drive
type
•
"Type VFD RRG" - rotary recovery drive
type
•
"Supply fan controller" - type of
controller responsible for regulating the
speed of the supply fans
•
"Exhaust fan controller" - type of
controller responsible for regulating the
speed of the exhaust fans
•
"Supply configuration" - number of
fans / definition of the presence of a
redundant fan in the supply path
•
"Exhaust configuration" - number of
fans / definition of the presence of a
redundant fan in the exhaust line
•
"Minimum setting" - the smallest
achievable control of the fans (if a value
lower than this is set in the Set module,
the fans will continue to operate with the
setting from the I03 screen)
- leading
