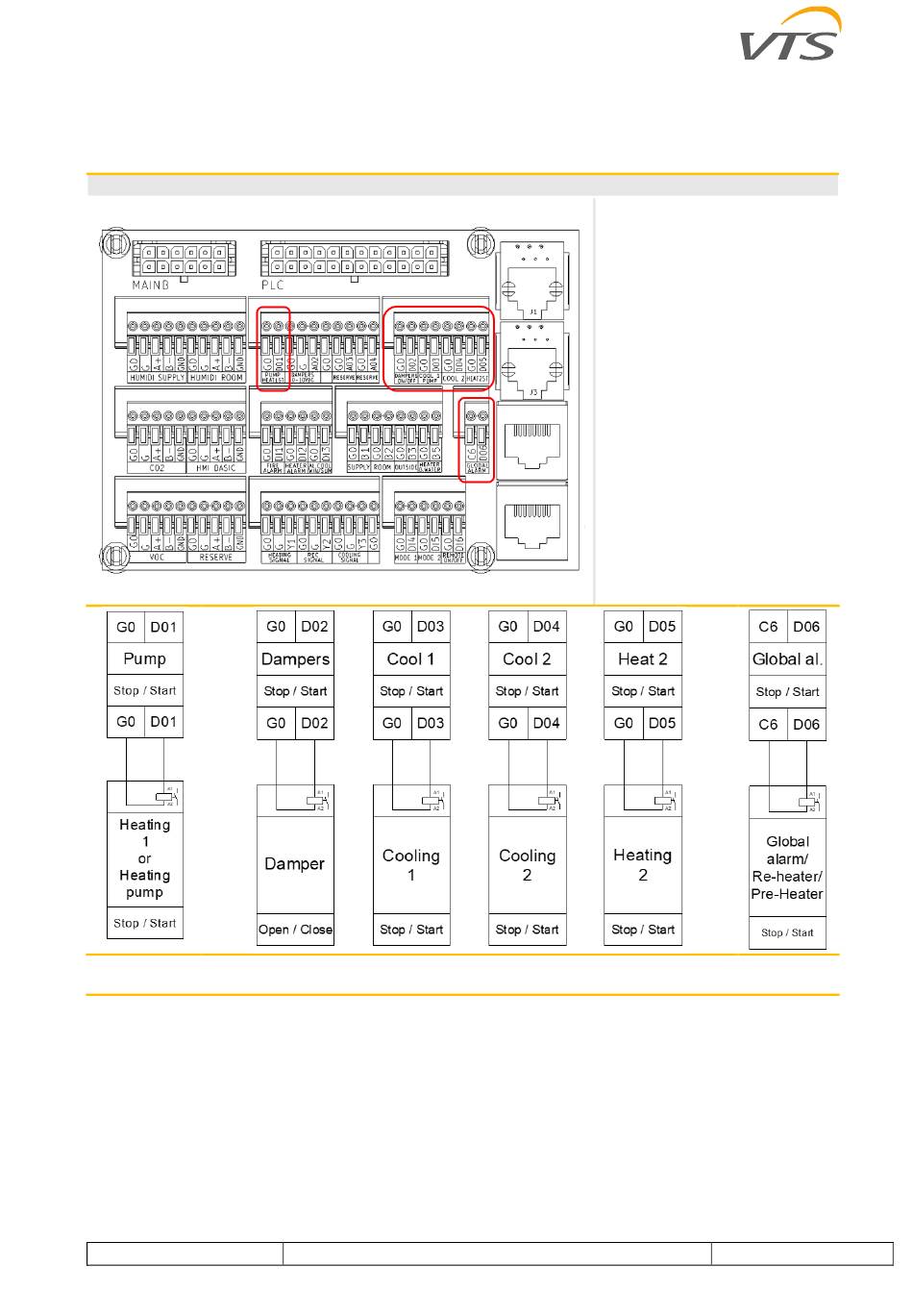

6.7 DIGITAL OUTPUTS (24V DC)

DIGITAL OUTPUTS (24V DC)
If 230V AC or potential-free contacts are required for the output signals, an isolating relay with
a coil supplied at 24V DC from the controller's relay outputs must be used.
www.vtsgroup.com
OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
D01
Main heater (or
secondary heater if
DX-H)
D02
Air inlet and outlet
passes
D03
Radiator stage 1 or
DX-H signal
D04
Stage 2 cooler or
stage 1 DX-H or
humidifier or glycol
recovery or redundant
dampers
D04
Heater stage 2 or DX-
H stage 2
D06
Pre-heater or
secondary heater or
general alarm
50
