VTS Medical Systems VENTUS COMPACT HP VVS021c Instructions For Use Manual

Floor mounted air handling units with reversible heat pump.
Hide thumbs Also See for VENTUS COMPACT HP VVS021c:

Advertisement

Quick Links

Download this manual

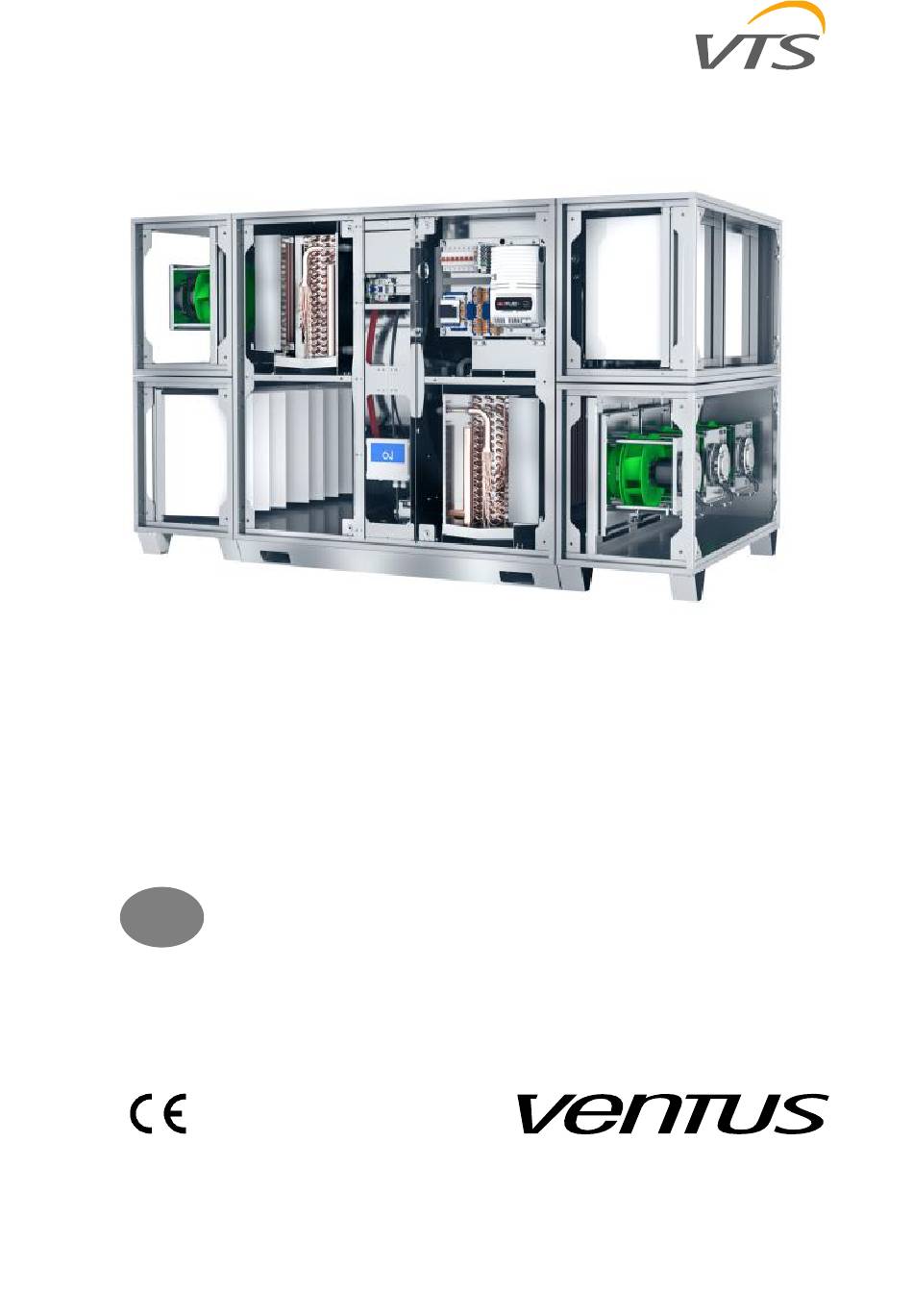

Instructions for use
(Technical and Operational
EN
Documentation)
Floor mounted air handling units with reversible heat
pump.
VENTUS COMPACT HP VVS021c-VVS075c
IOMM VENTUS - ver. 5.0.9 (10.2024)

Advertisement

loading
Need help?

Need help?

Do you have a question about the VENTUS COMPACT HP VVS021c and is the answer not in the manual?

Questions and answers

Related Manuals for VTS Medical Systems VENTUS COMPACT HP VVS021c

Summary of Contents for VTS Medical Systems VENTUS COMPACT HP VVS021c

  • Page 1 Instructions for use (Technical and Operational Documentation) Floor mounted air handling units with reversible heat pump. VENTUS COMPACT HP VVS021c-VVS075c IOMM VENTUS - ver. 5.0.9 (10.2024)
  • Page 2 Content GENERAL INFORMATION ........................5 HEAT PUMP SYSTEM .......................... 9 HEAT PUMP CONTROL ......................12 2.1.1 EXCHANGER DEFROSTING ....................13 2.1.2 FAILURE PROTECTION SYSTEM ..................14 BEFORE INSTALLING THE DEVICE ..................... 15 TRANSPORT AND STORAGE ...................... 15 PREPARATION FOR INSTALLATION ................... 17 3.2.1 LOCATION OF THE DEVICE ....................
  • Page 3 7.5.2 WATER HEATER FREEZE SENSOR DI2................52 7.5.3 COLD SOURCE ALARM DI3 ....................53 ANALOGUE OUTPUTS (0-10V DC) ..................... 54 7.6.1 VALVE ACTUATOR OF THE WATER MAIN HEATER AND CONTROL SIGNAL OF THE ELECTRIC MAIN HEATER Y1 ......................55 7.6.2 VALVE ACTUATOR FOR WATER PRE- OR POST-HEATER AFTER DX-H Y1 ......
  • Page 4 10.2 CONSUMABLES ........................102 10.3 CONNECTION DIAGRAM OF THE DEVICE ................104 10.3.1 VENTUS COMPACT HP AHU (1/11) ................. 104 10.3.2 VENTUS COMPACT HP AHU (2/11) ................. 105 10.3.3 VENTUS COMPACT HP AHU (3/11) ................. 106 10.3.4 VENTUS COMPACT HP AHU (4/11) ................. 107 10.3.5 VENTUS COMPACT HP AHU (5/11) .................
  • Page 5 GENERAL INFORMATION Thorough familiarisation with the contents of this manual, as well as the installation, commissioning and operation of the air handling unit according to the instructions given and in compliance with all health and safety regulations will guarantee a solid basis for efficient, safe and trouble-free operation of the unit. This document does not cover all possible configurations of these units, does not give all examples of their assembly and installation, nor does it discuss all aspects of their commissioning, operation, repair and maintenance.
  • Page 6 VENTUS COMPACT HP floor mounted AHU with heat pump (AHUs - air handling units can be installed either indoors or outdoors. The low height of the unit makes the units fit perfectly into standard ceiling voids or spaces above the suspended ceiling. The units are designed to work with air duct systems supplying and extracting air from rooms according to the ventilation design for the parameters indicated in the unit selection sheet.
  • Page 7 OTHER DESIGNATIONS IN THE CONTROL PANEL Air damper FLX.CON Flexible duct connection Inlet (feed e.g. medium) Outlet (return e.g. medium) VENTUS COMPACT HP units have inspection panels located at the front of the unit. BASE SECTION Exhaust fan section Recovery section: rotary heat exchanger and heat pump Exhaust air filter Supply air filter Supply fan...
  • Page 8 MARKING OF THE AIR INLET AND OUTLET OF THE AIR HANDLING UNIT INSPECTION SIDE VIEW - RIGHT-HAND VERSION Exhaust air inlet. Fresh air intake Room supply air outlet Exhaust air outlet MARKING OF THE AIR INLET AND OUTLET OF THE AIR HANDLING UNIT INSPECTION SIDE VIEW - LEFT-HAND DESIGN Exhaust air inlet.
  • Page 9 HEAT PUMP SYSTEM heat pump pressurised system built inside handling unit. It is a reversible system with direct evaporation, which consists of: a DX evaporator, a DX condenser, a compressor, a DX tank and complete refrigeration fittings. The heat pump is designed to cool or heat the supply air to the space depending on the control setting resulting from the operating mode and the current demand of the installation (room).
  • Page 10 Reversible heat pump system designed to operate with R410A refrigerant. For units equipped with a freon installation - check the applicable regulations relating to the obligations of the installer, owner/operator of the heat pump or DX installation before installing the unit (see F-Gas Act). The refrigerant must not be released into the atmosphere! If the addition or extraction of refrigerant is required, then the service technician performing this operation must comply with all local, national, EU and industry regulations.
  • Page 11 COMPRESSOR OPERATING ENVELOPE DESCRIPTION OF COMPRESSOR WORK ZONES 1 Zone inside the operating limits (protection function is activated to avoid exceeding the limits) 2 Maximum compression ratio 3 Maximum condensing pressure Maximum non-standard threshold value of condensing pressure DEDICATED AREAS 4 Maximum motor current 5 Maximum evaporation pressure 6 Minimum compression ratio...
  • Page 12 RATED COMPRESSOR PERFORMANCE COMPRESSOR C-6RZ210H1BDF ATF400 ATQ580 Number of compressors Compressor type Hermetic rotary Hermetic rotary Hermetic rotary Power supply Inverter Inverter Inverter Displacement volume 39,8 57,9 [cm3] Cooling capacity [kW] Refrigerant R410A R410A R410A Rated current 9.8A 16.7A 17.8A Engine type BLDC BLDC...
  • Page 13 2.1.1 EXCHANGER DEFROSTING DEFROSTING PROCEDURE • Increase in compressor power when Description of the heat pump defrosting process: entering the defrost phase • Exceeded Min Vapour Pressure Threshold • Defrosting process • Delayed activation of defrost mode • Reduction in compressor power when •...
  • Page 14 2.1.2 FAILURE PROTECTION SYSTEM The field control function is integrated into the internal control system. This prevents exceeding the safe conditions for any of the components. Signals from the high and low pressure transducers provide information to ensure maximum performance without exceeding the set value.
  • Page 15 BEFORE INSTALLING THE DEVICE 3.1 TRANSPORT AND STORAGE The air handling units are packaged for easy internal transport and storage at the installation site. Upon delivery of the unit, all components must be checked to ensure that no damage has occurred in transit. Detailed instructions for this are included in the table Checklist on receipt.
  • Page 16 RULES FOR THE TRANSPORT OF CENTRAL SECTIONS The air handling units must be transported in the position and in the manner marked on the original manufacturer's packaging. Equipment packaging: • should be placed in paved, dry locations protected from precipitation, •...
  • Page 17 The equipment as well as its components should be: • stored in rooms with the following conditions: relative humidity: φ < 80 %, at t = (+20) °C, ambient temperature: (-40) °C < t < (+60) °C. • protected from contact with corrosive...
  • Page 18 3.2.2 INSTALLATION OF VENTUS COMPACT HP POSITIONING LAYOUT VVS021c (STANDARD DIMENSIONS) The dimensions of the base block and additional functions are available in the unit's technical data sheet www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 19 VVS030C UNIT POSITIONING LAYOUT (STANDARD DIMENSIONS) The dimensions of the base block and additional functions are available in the unit's technical data sheet www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 20 VVS040C UNIT POSITIONING LAYOUT (STANDARD DIMENSIONS) The dimensions of the base block and additional functions are available in the unit's technical data sheet www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 21 VVS055C UNIT POSITIONING LAYOUT (STANDARD DIMENSIONS) The dimensions of the base block and additional functions are available in the unit's technical data sheet www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 22 POSITIONING LAYOUT VVS075c (STANDARD DIMENSIONS) The dimensions of the base block and additional functions are available in the unit's technical data sheet www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 23 FIXING OF THE FRAME/FOOTPLATE TO THE GROUND The frame should be fixed through the extreme holes in the feet/frame. CONDENSATE DRAINAGE When planning the foundation of the unit, provision must made drain condensate from the drip trays. H [mm] = total fan discharge in mm water column (Pa*0.1) The dimensions of the base block and additional functions are available in the unit's technical data sheet...
  • Page 24 3.2.3 CONNECTING AIR DUCTS INSTALLATION OF AIR DUCTS Air ducts should be connected to the air handling unit with flexible connections (optional equipment) that dampen unit vibrations compensate misalignment of duct and air handling unit outputs. Flexible connections are fitted with sealed flanges.
  • Page 25 3.2.4 CONNECTING BASE BLOCK SECTIONS ASSEMBLY OF BASE BLOCK SECTIONS www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 26 CONNECTING THE CHANNEL MODULE CONNECTING THE FAN SECTION The base configuration of the VENTUS COMPACT HP with heat pump is supplied as a wired unit with the Controls system connected configured. Using the supplied connectors (electrical cable, pneumatic cable), connect the fan and air filtration sections to the base section (with heat pump).
  • Page 27 CONNECTION OF WATER HEATER 4.1 CONNECTION OF WATER HEATERS The unit should be equipped with a water or electric heater (optional) to support the heat recovery (rotary heat exchanger and heat pump) and to provide space heating during the heat pump defrost period.
  • Page 28 QUALITY REQUIREMENTS FOR THE SUPPLY MEDIUM WATER EXCHANGERS Oil and grease < 1 mg/l ! pH at (+25) °C 8-9. Oxygen < 0.1 mg/l (as low as possible). Minimum radiator temperature (+3) °C. Maximum operating temperature (+130) °C. Maximum operating pressure 16 bar. At sub-zero flow temperatures, a freezing point-lowering additive, e.g.
  • Page 29 SUPPLY PRINCIPLE FOR WATER EXCHANGERS OUTSIDE THE BASE SECTION OF THE CONTROL PANEL exchanger fluid supply return connections should be configured so that the exchanger operates countercurrent mode. The co- current mode of operation of the exchanger provides a lower average temperature difference, affecting its operating efficiency.
  • Page 30 4.2 CONDENSATE DRAINAGE Moisture can condense on the surfaces of the air coolers and heat recovery exchanger. from the air. The condensed moisture (condensate) flows into the drip tray located below these functions. The installer must connect the drip trays to the drainage system, including the use of traps. Condensate drainage is led outside the air handling unit casing.
  • Page 31 5 ELECTRICAL CONNECTION TO THE CONTROL PANEL 5.1 ELECTRICAL CONNECTION VENTUS COMPACT HP units are pre-wired at the factory and are equipped with advanced control and safety Controls. The Controls system is based on built-in and integrated and integrated controllers: uPC3 and C.CPCO MINI, which ensures complete control and protection of the unit together with the heat pump system (system: OSSTDmCOMN).
  • Page 32 CONNECTING THE POWER SUPPLY 3~400V AC+N+PE 50Hz Max. number Built-in Size of fans up to Rated Fan code Heater Security Power cable 0.75kW per current electric section [3 400V AC+N+P] VVS021c 250|0.7kW|1.58x1 C40/3 5x 10 mm 5x 10 mm VVS021c 225|0.74kW|1.33x2 C40/3 5x 10 mm...
  • Page 33 ELECTRIC HEATER 6.1 GENERAL INFORMATION The electric heater can be an optional accessory (separate section) or built into the base block of the air handling unit (VVS021c, VVS030c). If the heater is built into the base block, the heater is connected at the factory to the main supply point of the air handling unit.
  • Page 34 Modulating Supply Voltage Depending on Heating Power Demand (First Heating Slice). The first slice is controlled steplessly 0-10V, each remaining slice (ON/OFF) ON-OFF. Each time a regulated slice reaches full output, the demand is passed on to the next slice, which starts operating at full capacity.
  • Page 35 6.2 HEATER POWER CONNECTION AND CURRENT PROTECTION The power supply connection must be made using a separate switchboard, which is not supplied by VTS. The heater connection should be made in such a way that the heater cannot be switched on when the fan is not switched on - this is ensured by factory-fitted, series-connected safety devices in the form of a thermostat and pressure switch, which prevent the heater from being switched on if the temperature and air flow conditions are not met.
  • Page 36 CONNECTION OF ELECTRIC HEATER WITH 1X18KW SWITCHBOARD Designation Description Connection Comments relays / contactors factory factory heater terminals factory heaters the connection of the pressure switch factory / installer pressure switch tubes is made by the user signal terminals - alarm on site / installer power terminals 1f on site / installer...
  • Page 37 CONNECTION OF ELECTRIC HEATER WITH 2X18KW SWITCHBOARD Designation Description Connection Comments relays / contactors factory factory heater terminals factory heaters the connection of the pressure pressure switch factory / installer switch tubes is made by the user signal terminals - alarm on site / installer power terminals 1f on site / installer...
  • Page 38 CONNECTION OF ELECTRIC HEATER WITH 4X18KW SWITCHBOARD Designation Description Connection Comments relays / contactors factory factory heater terminals factory heaters the connection of the pressure pressure switch factory / installer switch tubes is made by the user signal terminals - alarm on site / installer power terminals 1f on site / installer...
  • Page 39 6.3 THERMAL CUT-OFF (THERMIC) The functionality of the thermostat is based on the properties of the bimetallic element - it causes the contacts of the heater control circuit to open when the air temperature near the thermostat is 65°C. After an emergency shutdown, the heater automatically switches on when the air temperature drops by 20°C.
  • Page 40 6.4 DIFFERENTIAL PRESSURE SWITCH The differential pressure switch is another safety element, in addition to the thermostat, which prevents the heater from operating under unallowable conditions. It prevents the heater from switching on if the pressure generated by the fan units on the supply side of the air handling unit is insufficient to ensure safe operation of the heating elements.
  • Page 41 DIFFERENTIAL PRESSURE SWITCH - CHARACTERISTICS Differential pressure Connection Comments switch protection of the heater against overheating Function (control of pressure difference between supply air and atmospheric pressure) • plastic casing, • two screw terminals, Construction • diaphragm connected to mechanical module Rated operating 30 V DC...
  • Page 42 CONNECTION OF ELECTRIC HEATER AUTOMATICS - CONTACTS: 1, 3, 4, L, N, A1, A2 Termin Terminal Connection terminal on the Signal name Control Box al No. name control box* CBX VTS Plug & Play  Grounding Other than CBX VTS Power Plug &...
  • Page 43 CONNECTION OF ELECTRIC HEATER AUTOMATICS - CONTACT 5 Terminal No. Connection terminal Termin Terminal Signal name Control Box on the al No. name Number of sections control box* Main K1.24** K1.24** Preheater  CBX VTS Reheater with DXH K1.24** Reheater with humidifying Reheater - Other case Degree...
  • Page 44 7 PLUG&PLAY CONTROLS COMPONENTS The VENTUS COMPACT TOP base unit including hexagonal exchanger, fans and air filters and optional water heater is supplied as a pre-wired unit with the configured Controls system connected. The Controls system is based on the factory-programmed and built-in uPC3 controller. Peripheral Controls components whose specifics require installation outside the base unit (room or duct mounted sensors, actuators, valves) are supplied in separate packages.
  • Page 45 7.1 STANDARD EQUIPMENT WITH FACTORY-FITTED CONTROLS ELEMENTS STANDARD CONTROLS COMPONENTS - ASSEMBLY AND CONNECTION AT THE FACTORY Designation Name Location uPC3 controller Controls switchgear Terminal 1 (T1) Connection terminal for peripheral Controls components Security Controls switchgear (according to the diagram) Temperature sensor Return air from the room (extract before recovery)
  • Page 46 7.2 CONNECTION TERMINAL 1 (T1) Terminal 1 (T1) is connected at the factory to the uPC3 controller and is a dedicated terminal for the connection of peripheral Controls elements that exist outside the base unit of the unit and therefore could not be connected at the factory. Additional control elements outside the VTS range can also be connected to Terminal 1 (T1).
  • Page 47 7.3 CABLE STANDARDS TYPE APPLICATION WIRING [mm] WIRED Fire alarm relay 2x0,75 Multifunction switch 2x0,75 Optional multifunction switch 2x0,75 Supply air temperature sensor 2x0,75 Room/extract air temperature sensor 2x0,75 Return water temperature sensor for water heater 2x0,75 Electric heater (HE) alarm relay 2x0,75 Air-side antifreeze thermostat to protect the water heater from freezing 2x0,75...
  • Page 48 7.4 ANALOGUE INPUTS (NTC10K) ANALOGUE INPUTS (NTC10K) Duct temperature sensor - supply air Temperature sensor - exhaust B2/6 Duct sensor behind the pre- heater B3** Temperature sensor - outside Touchscreen water heater B5*** temperature sensor. • B2* - Exhaust air temperature sensor which is factory fitted at the heat recovery. If a room sensor is used as the lead sensor (other than HMI BASIC), this sensor must be connected to B2 on terminal 1 T1 •...
  • Page 49 7.4.1 SUPPLY AIR TEMPERATURE SENSOR B1 SUPPLY AIR TEMPERATURE SENSOR T. upply TC 10K Terminal T1 ensor T. upply The sensor should be placed in the supply air duct behind the last section of the air handling unit, in a place representative of the temperature measurement (in a homogeneous air stream with a uniform temperature distribution).
  • Page 50 7.4.2 TOUCHSCREEN WATER HEATER TEMPERATURE SENSOR B5 TOUCHSCREEN WATER HEATER TEMPERATURE SENSOR B5 www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 51 7.5 DIGITAL INPUTS DIGITAL INPUTS Fire alarm DI2* Heater alarm (freezing) Radiator alarm Humidifier alarm Cold source alarm Programmable external Remote input (enabling the panel or overriding selected operating mode) DI2* - Heater alarm (freezing). If there is no water heater and an electric heater is present, the alarm signal is used for the electric heater operation confirmation signal (A1/A2).
  • Page 52 7.5.1 FIRE ALARM SIGNAL DI1 FIRE ALARM SIGNAL DI1 7.5.2 WATER HEATER FREEZE SENSOR DI2 WATER HEATER FREEZE SENSOR DI2 www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 53 7.5.3 COLD SOURCE ALARM DI3 COLD SOURCE ALARM www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 54 7.6 ANALOGUE OUTPUTS (0-10V DC) ANALOGUE OUTPUTS (NTC10K) AO1* Heat recovery Air mixing Humidification or secondary heater Pre- or post-heater Main heater or Y1** secondary heater behind DX-H or mixing chamber Aftercooler or after- heater after DX-H or Y3*** mixing chamber •...
  • Page 55 7.6.1 VALVE ACTUATOR OF THE WATER MAIN HEATER AND CONTROL SIGNAL OF THE ELECTRIC MAIN HEATER Y1 MAIN WATER HEATER Y1 For the water heater, the control is connected to the valve actuator 7.6.2 VALVE ACTUATOR FOR WATER PRE- OR POST-HEATER AFTER DX-H WATER PRE- OR RE-HEATER BEHIND THE DX-H Y1 For the water heater, the control is connected to the valve actuator www.vtsgroup.com...
  • Page 56 7.7 DIGITAL OUTPUTS (24V DC) DIGITAL OUTPUTS (24V DC) Main heater (or secondary heater if DX-H) Air inlet and outlet passes Radiator stage 1 or DX-H signal Stage 2 cooler or stage 1 DX-H or humidifier or glycol recovery or redundant dampers Heater stage 2 or DX- H stage 2...
  • Page 57 7.8 CONNECTION OF CONDENSING UNIT SIGNALS DX EXCHANGER (0-10V CONTROL) DX EXCHANGER (ON-OFF CONTROL) Cooling2 Cooling1 Heating2 Cool A . tart / top tart / top tart / top O/ C tep 1 tep 2 Cool A . Cool/Heat top tart top tart tart / top tart / top...
  • Page 58 7.9 CONNECTION OF THREE-WAY VALVES HEATER VALVE CONNECTION RADIATOR VALVE CONNECTION www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 59 7.10 GSM COMMUNICATION The device is equipped with automatic remote identification, configuration and data exchange mechanisms with external manufacturer systems as standard. A GSM gateway is installed inside the device. The GSM gateway is equipped with a SIM card if the device installation has been declared in EU countries.
  • Page 60 MODBUS RTU RS485 COMMUNICATION Humidity sensor - air supply Humidity sensor - room (extract air)* HMI Basic CO2 sensor • Factory assembly www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 61 7.12 CONNECTION OF OPERATOR PANELS 7.12.1 HMI ADVANCED HMI ADVANCED www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 62 7.12.2 HMI BASIC (2HY) HMI BASIC 2HY HMI connections are powered by 110-230V AC mains voltage. To ensure correct operation, separate power and control cables must be used, not exceeding the recommended length of 500m. The following cable types are recommended: •...
  • Page 63 7.12.3 WebHMI and VMS VENTUS MANAGEMENT SYSTEM VMS - Ventus Management System - http:/192.168.1.111 visualisation of panel operation with WebHMI function service service A fixed address is required to connect controller 192.168.1.xxx, where xxx is different from 111. Subnet mask 255.255.255.0 www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 64 7.12.4 mHMI APPLICATION - BLUETOOTH DEVICE PAIRING See chapter "BLUETOOTH MODULE AND mHMI APPLICATION". INITIAL START-UP 8.1 PREPARATION FOR THE FIRST START UP Before proceeding with the activities leading to the first start-up, read the operating instructions for the operator panels. The air handling unit may only be operated with the filters installed.
  • Page 65 Check that the hydraulic systems and the freon installation are complete Connection of external ready sources of cooling and and ready for operation and that the correct amount of heating or cooling process heat medium has been introduced to start up the unit. OPERATIONS BEFORE STARTING UP (cont'd) Check that earthing cables are in place, connecting the control systems Grounding system...
  • Page 66 8.1.2 POWER CONFIGURATION OF OPTIONAL ELECTRIC HEATERS If the unit is equipped with an electric heater, the heater's heating sections must be configured. CONFIGURATION OF ELECTRIC HEATER POWER STAGES Read the power distribution from the diagram or technical data sheet. For example, we have: 0-10V DC = 25%, ST2 = 25%, ST3 = 50% This notation means that the step-adjustable part of a given heater is 25% of its power (0-10V DC).
  • Page 67 8.2 FIRST START-UP 8.2.1 FACTORY PARAMETERS The control unit, which is supplied as a Plug&Play standard, has its Controls configured according to the parameters and criteria specified in the unit's selection sheet. No additional configurations on site are required to commission the control unit in Plug&Play standard factory parameter...
  • Page 68 BASIC FACTORY CONFIGURATION - OPERATING PROFILES (MODE) WORK PROFILES PARAMETER Comfort** Optimum Economic StandBy Comfort** Ekono StandBy °C Temperature Relative humidity - RH Air quality - CO2 content Supply capacity Exhaust capacity • Work profiles: Comfort, Optimum, Economic require the time and date of their validity to be set in the calendar. •...
  • Page 69 8.2.2 START UP PLUG&PLAY CONTROL PANEL COMMISSIONING Switch on the power supply to the control panel Physical Virtual Enable http:/192.168.1.111 Advanced* Change in device status (operating mode) Panel operation switched off (voltage reaching the panel) One of the user configuration profiles Switch to OPTI One of the user configuration profiles...
  • Page 70 8.2.3 HMI ADVANCED HMI ADVANCED - NAVIGATION Simulation of equal pressures in the WEB HMI Arrows to navigate up and down and to change parameter values "Alarm" button (calling up active and archived alarms, clearing alarms). When • Moving up through the menu screens (when an alarm is active, the button is the cursor remains in the top left corner) illuminated in red.
  • Page 71 HMI ADVANCED NAVIGATION cont. Current date and time. HMI Advanced work module: • Info" module (viewing the operating status of Current work profile the control panel - available without logging in), • Set" module (change of settings of the Current fan controls operating parameters: capacity, temperatures, Air handling unit status (fans humidity, CO2 and setting of the timer -...
  • Page 72 8.2.4 HMI BASIC 2HY HMI BASIC 2 HY The HMI Basic 2 HY is a basic control panel designed to operate VTS air handling units equipped with the uPC3 controller. The functions realised are: • starting and stopping the control panel, •...
  • Page 73 In the absence of communication with the controller, the HMI Basic 2 HY will only display the current room temperature. Activation of the panel in the air handling unit controller settings The panel is intended for air handling units equipped with the uPC3 controller with...
  • Page 74 Access to individual settings depends on the configuration of the control panel and its actual components. Changes are made with , confirmed with . Exit to the home screen automatically after a moment of inactivity or by pressing . SETTING THE OPERATING SCHEDULE FOR THE CONTROL PANEL The HMI Basic 2 HY panel is equipped with the ability to set and modify the schedule of the air handling unit.
  • Page 75 The MI Basic 2 HY allows active alarms to be viewed and cleared. If an alarm is present, the bell symbol is shown on the main screen and the alarm number is displayed in place of the time. The alarm is cancelled, once the cause of the alarm has been removed, by holding down PROGRAMMING MODE With the display switched off by holding down the button, hold down the button to enter the programming mode (change of advanced parameters).
  • Page 76 In the absence of communication with the controller, the HMI Basic 2 HY will only display the current room temperature. Activation of the panel in the settings of the air handling unit controller The panel is intended for air handling units equipped with the uPC3 controller with software version 1.0.019 or higher. In order to activate its operation, it is necessary to go from the HMI Advanced (physical, connected to the controller's pLAN port, or virtual, being part of the visualisation application) to the service menu and, on the I01 screen, change the last digit of the application code to 7.
  • Page 77 8.2.5 BLUETOOTH MODULE AND mHMI APPLICATION The Bluetooth module is designed for low-power Bluetooth V5.0 connectivity to mobile devices. The module transmits an RS485 serial transmission signal [Modbus RTU] from the master controller to the mobile device using a Bluetooth connection, thus eliminating the transmission cable. To use the Bluetooth module to control the VTS Controls panel, install the dedicated mHMI application on the mobile device and connect to the dedicated mHMI Bluetooth module that has been connected to the VTS Controls panel.
  • Page 78 REQUIREMENTS: • Controls software uPC3 from 1.0.26 • Smartphone with systems from versions: Android 9, iOS 11 • Assignment of rights and activation: o location (linked to a Bluetooth connection) o bluetooth connections BT MODULE SUPPORT The unit allows other units to connect via the broadcast system. The default name of the module by which broadcasts factory...
  • Page 79 CONFIGURATION OF THE UPC3 CONTROLLER - mHMI and HMI ADVANCED • "Address" - address of the controller used for external protocol communication • "Speed" - speed (baudrate) of the external controller protocol • "External port of the pLan controller" - type of protocol used by the controller's pLan port (RJ11 socket) [for mHMI, the value of the pLan port parameter...
  • Page 80 ADDING A DEVICE If a Plug&Play VENTUS COMPACT device has been ordered together with an mHMI module, it already has a factory-programmed number in the application. ACTIVATION OF THE DEVICE Select a paired device Then, in the Menu, select one operating modes Operation Mode "On":...
  • Page 81 OVERVIEW OF SELECTED ASPECTS OF THE mHMI APPLICATION • The app includes a tutorial for pairing and connecting the device. PANEL OVERVIEW The PBX View contains the basic operating parameters of the PBX • outdoor air temperature, • indoor air temperature, •...
  • Page 82 OPERATING MODE PARAMETERS The Mode window presents the basic parameters relating to a particular mode and allows them to be edited quickly. WORK SCHEDULE - CALENDAR When the Schedule icon is selected, there is an option: • to edit the days of switching on/off the control panel, •...
  • Page 83 ALARMS The list of alarms is visible under the icon Alarms can be opened in one of two views: • Current alerts, • Historic alarms. The list of historical alarms shows a preview of alarms that are not currently active. situation occurs that...
  • Page 84 FUNCTION SETTINGS - ADVANCED FUNCTIONS FUNCTION SETTINGS - this menu section gives you the possibility to view edit operating parameters associated control panel. In addition, it is possible to access the control of individual inputs outputs located on the control panel and also on the expansion board.
  • Page 85 FUNCTION SETTINGS - ADVANCED FEATURES (cont'd) I/O. - Configurable digital and analogue inputs and outputs as well as ModBus signals. and analogue inputs and outputs as well as ModBus signals. The inputs and outputs are labelled with the functions they are assigned, e.g.
  • Page 86 MONITORING MONITORING The user can define a quick-view list of selected parameters. To use this functionality, the user must save the selected parameters in MONITORING section APPLICATION SETTINGS APPLICATION SETTINGS General settings section, which is not related to operating parameters. Here it is possible to min: •...
  • Page 87 8.2.6 OPERATING MODES OF THE CONTROL PANEL OPERATING MODES OF THE CONTROL PANEL Air handling unit switched off - fans stopped, air dampers and control valves closed all sensors and measuring devices remain active - to protect the unit from damage, e.g. fire alarm, anti-freeze protection. AUTO Panel operation dependent on calendar programming Lower economy mode - Fan speed as well as the dead zone in temperature...
  • Page 88 8.2.7 VERIFICATION OF OPERATION DURING INITIAL START-UP During the initial start-up, it is recommended that the steps listed below be carried out. CHECKING THE OPERATION OF THE FANS Check that the fans do not make excessive noise (make sure that the impeller does not rub against the hopper and that there are no foreign bodies within the fans' operating range, which may be caused by improper transport or storage conditions), CHECKING THE OPERATION OF THE AIR DAMPERS ACTUATORS...
  • Page 89 CHECK OF SENSOR READINGS • check readings from temperature, pressure, CO2 and humidity sensors are correct (at the beginning, when the air handling unit is powered but not operating, temperatures sent to the controller from temperature sensors should oscillate within the ambient temperature range of the air handling unit's air, while the remaining transmitters and...
  • Page 90 CHECKING THE OPERATION OF THE WATER HEATER VALVE ACTUATORS Check that the heater valve actuator responds to the control signal - manually actuate the valve from the controller's service menu and observe whether it causes the valve to open/close accordingly. To do this, set parameter D to ON and parameter A to the desired percentage in the corresponding screen in the service menu, depending on the type of heater you have and the function it performs [screens A01, A03, A05, A06.
  • Page 91 8.2.9 THE MOST COMMON ADAPTATIONS OF PARAMETERS TO THE NEEDS OF THE FACILITY SCOPE OF THE FUNCTION SCREEN WHEN TO CHANGE CHANGES MAIN HEATER unstable temperature control compressor switch-on DXH MAINTAIN unstable temperature control thresholds SECONDARY unstable temperature control HEATER PID, post-heat temp.
  • Page 92 SCOPE OF THE FUNCTION SCREEN NOTES CHANGES PRE-HEATER supply air heating support object sensitive to low air temperature next min. air temp. and switch- CENTRAL object sensitive to low air temperature off delay. DX MAINTAIN compressor runtime setting VENTILATORS fire settings matching of object properties Lack of heat source capacity or object RECOVERY DEVICE...
  • Page 93 FUNCTION SCREEN SCOPE OF THE COMMENTS CHANGES PRE-HEATER logic of work permit exit matching the properties of the heater SECONDARY logic of work permit exit matching the properties of the humidifier HEATER TRANS. VENT. adjustment to control characteristics logic of work permit exit REDUN.
  • Page 94 9 READING AND CONFIGURATION OF PARAMETERS 9.1 uPC3 Masks Description A full description of the uPC3 controller masks is available in the dedicated manual "AHU uPC3 Controller Masks Description upc3" 9.2 READING OF HEAT PUMP PARAMETERS HMI ADVANCED www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 95 WEB HMI Web HMI Web HMI www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 96 MAINTENANCE 10.1 MAINTENANCE The basic technical data of the air handling unit, such as the type, parameters and dimensions of the most essential components (filters, heat exchangers, fans, electric motors), can be found in the technical data sheet that is supplied with each unit. All maintenance work on air handling units should be carried out with the unit switched off.
  • Page 97 If the throttle is dirty and does not operate freely, it should be cleaned according to one of the following methods: • using a hoover with a soft suction nozzle, • by blowing with compressed air, • washing with water and non-corrosive cleaning agents for aluminium. After re-installation, the damper should be carefully sealed, above all on the outside air intake side, to prevent the water heater from freezing.
  • Page 98 AIR FILTERS • Under standard operating conditions for air handling units, filters should be changed approximately twice a year. The need to change the filter (in addition to visually visible contamination) is also indicated by a drop in pressure: EU4 - 150Pa, EU5, EU7 - 200 Pa, EU9 - 300 Pa •...
  • Page 99 damage to some components or subassemblies (motor, bearings, plastic parts, etc.) installed in adjacent sections. ELECTRIC HEATER • The electric heater battery consists of bare heating coils. During operation of the air handling unit, when the heater is switched off, dust may settle on the heating coils. When the heater is restarted, heavy contamination of the surface of the heater can generate unpleasant burning dust odours, even leading to an initial fire hazard.
  • Page 100 washing the air ducts along their entire length with water and non-corrosive aluminium cleaning agents, In the case of very dirty exchangers, a pressurised water jet can be used to clean them. • When cleaning the exchanger with mechanical means, maximum care must be taken not to damage or deform the exchanger panels.
  • Page 101 • Cleaning should be carried out by vacuuming or wiping all surfaces with a wet cloth. For more serious soiling, nylon brushes can be used: the inside of the casing using a hoover, rotor with a hoover or by damp wiping with a cloth dampened in a soft cleaning agent. www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 102 10.2 CONSUMABLES Spare parts are available from the manufacturer's online shop and from the network of authorised service centres www.eshop.vtsgroup.com. Simply enter the factory number MINI-PLEAT AIR FILTERS ePM10 40% (EU5) ePM2,5 65% (EU7) ePM1 80% (EU9) VVS021c VVS030c VVS040c VVS055c VVS075c www.vtsgroup.com...
  • Page 103 BAG AIR FILTERS 600mm ISO ePM 2.5 65% (EU7) ISO ePM 1 80% (EU9) VVS021c VVS030c VVS040c VVS055c VVS075c BAG AIR FILTERS 300mm ISO COARSE 80% (EU5) ISO ePM 2.5 65% (EU7) ISO ePM 1 80% (EU9) VVS021c VVS030c VVS040c VVS055c VVS075c www.vtsgroup.com...
  • Page 104 10.3 CONNECTION DIAGRAM OF THE DEVICE 10.3.1 VENTUS COMPACT HP AHU (1/11) www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 105 10.3.2 VENTUS COMPACT HP AHU (2/11) www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 106 10.3.3 VENTUS COMPACT HP AHU (3/11) www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 107 10.3.4 VENTUS COMPACT HP AHU (4/11) www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 108 10.3.5 VENTUS COMPACT HP AHU (5/11) www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 109 10.3.6 VENTUS COMPACT HP AHU (6/11) www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 110 10.3.7 CENTRAL VENTUS COMPACT HP (7/11) www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 111 10.3.8 VENTUS COMPACT HP AHU (8/11) www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 112 10.3.9 AHU VENTUS COMPACT HP (9/11) www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 113 10.3.10 VENTUS COMPACT HP AHU (10/11) www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 114 10.3.11 CENTRAL VENTUS COMPACT HP (11/11) www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
  • Page 115 10.4 HEALTH AND SAFETY INSTRUCTIONS The connection and commissioning of the air handling unit should be carried out by qualified personnel and in accordance with the recommended regulations and guidelines relating to the operation of electrical equipment. Under no circumstances should the appliance be connected to a power source before the protection system is activated.
  • Page 116 SUPPLEMENTARY INFORMATION 11.1 TECHNICAL INFORMATION FOR REGULATION (EU) N327/2011 IMPLEMENTING DIRECTIVE 2009/125/EC SR-FS FANS #9-1 #9-2 #9-3 Fan Set Model [m³/h]. [kW] [Pa] [rpm] SR-FS-P-225-0.3 65,40 73,30 SR-FS-P-225-0.3 0,43 1 288 3 600 SR-FS-P-225-0.7 62,00 68,10 SR-FS-P-225-0.7 0,85 1 642 1 065 4 500 SR-FS-P-250-0.3...
  • Page 117 11.2 ASSOCIATED INSTRUCTIONS Refer to the detailed instructions and make the connections and configurations according to the documentation available at www.vtsgroup.com and the instructions supplied with the equipment. In particular, you should familiarise yourself with: • Installation, Operation and Maintenance Manual - VENTUS Software - uPC3 control / VTS Ventilation Software for air handling units (Ventus - Application uPC3) uPC3 controller - connection diagram, •...
  • Page 118 GENERAL DISMANTLING PROCEDURE • Disconnection of all media. • Removal of heating and cooling agents from the installation. • Dismantling of inspection panels. • Dismantling of electrical and automation systems. • Removal of all accessories and components from the control unit. •...
  • Page 119 11.4 NOTES Routine checks, carried out by qualified technical personnel or service personnel authorised by VTS, guarantee long-term, reliable and trouble-free operation of the equipment. Our service personnel is available at all times to provide support for commissioning, maintenance and in the event of any emergency situation relating to the operation of the unit.
  • Page 120 Original version of instructions in Polish. Other language versions are machine translated. VTS reserves the right to make changes without notice www.vtsgroup.com OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
