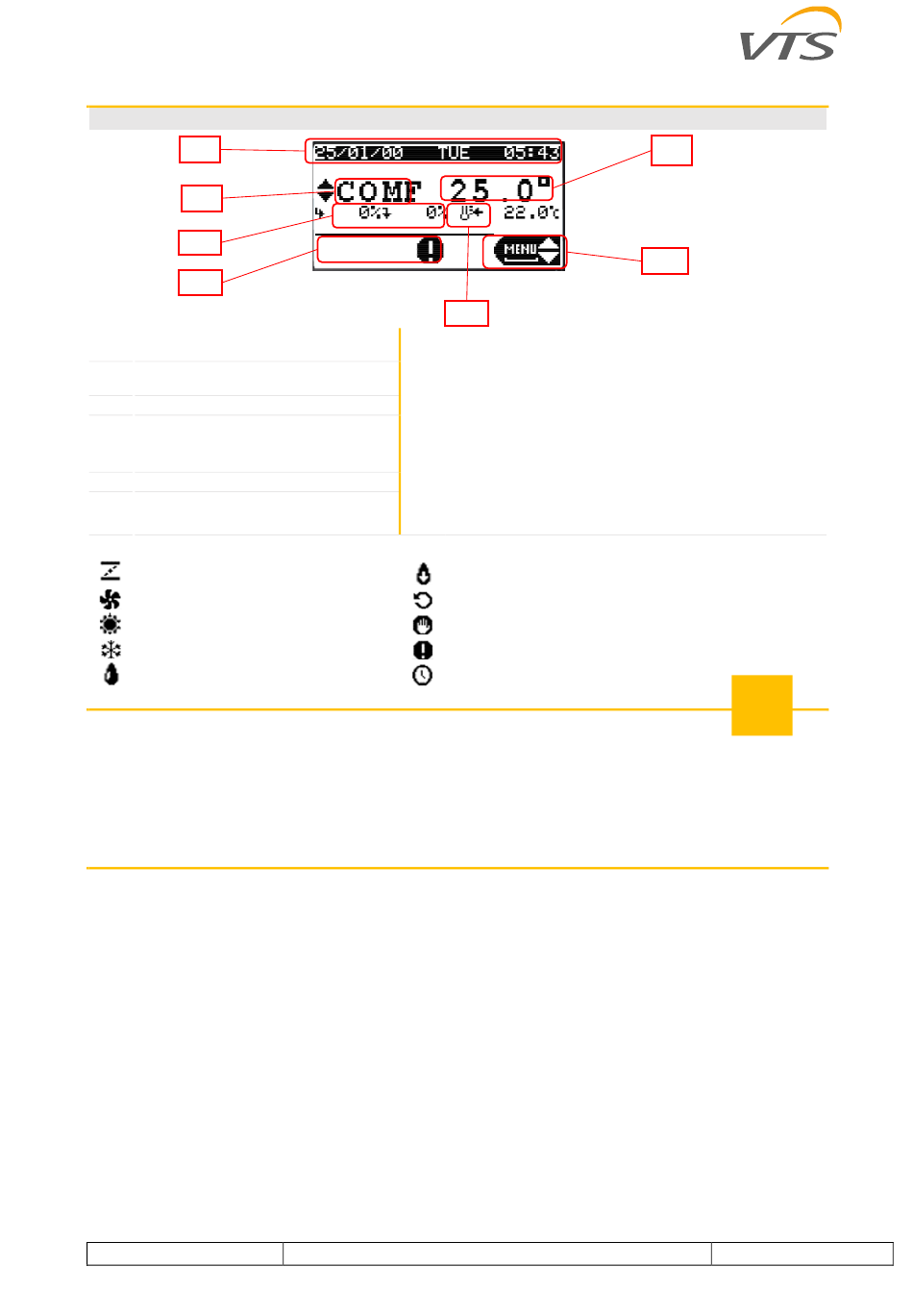

HMI ADVANCED NAVIGATION cont.
6
7
8
9
6 Current date and time.
7 Current work profile
8 Current fan controls
9 Air handling unit status (fans
running/stopping, heating/cooling,
activation of recovery
10 Current leading temperature value
11 Lead temperature setpoint
Operating status icon:
13
Opening/closing the throttles
Fan operation
Heating
Cooling
Moistening
! The parameters available in the LCD display window depend on the type of air handling unit and
the application of the Control system. Therefore, in the case of AHUs without a heater, you will
not see the options related to the heating section.
!
The HMI Advanced cannot be used as a room temperature sensor.
www.vtsgroup.com
13
12 HMI Advanced work module:
•
Info" module (viewing the operating status of
the control panel - available without logging in),
•
Set" module (change of settings of the
operating parameters: capacity, temperatures,
humidity, CO2 and setting of the timer -
accessible without logging in),
•
Menu" module (allows configuration changes
of the air handling unit and its components as
well as programming of the EC motors, only
available after logging in
Dehumidification
Active recovery
Detention on request
Emergency stop
Active calendar
OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
