2.2.3
CONNECTING AIR DUCTS
INSTALLATION OF AIR DUCTS
www.vtsgroup.com
OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)

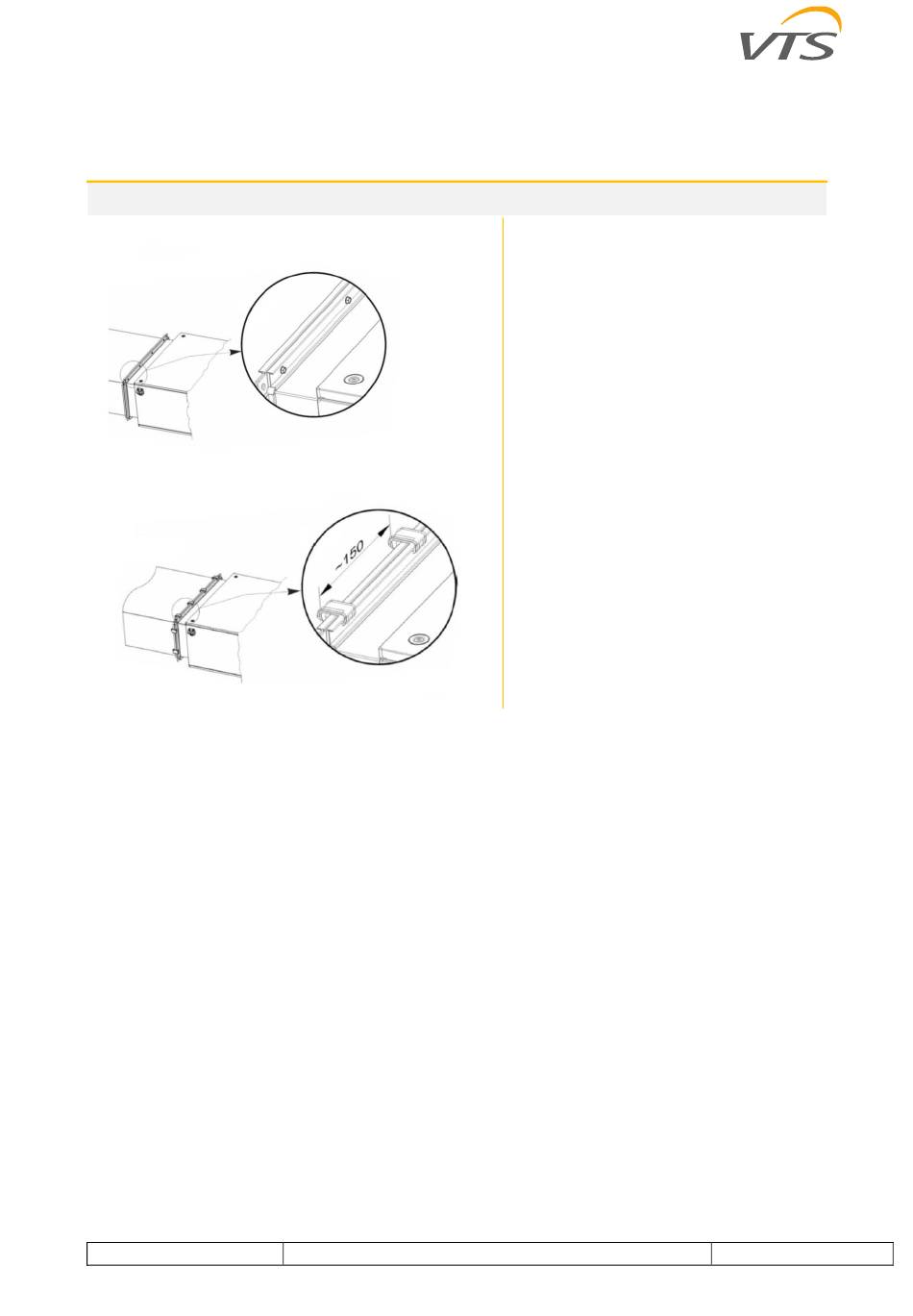

Air ducts should be connected to the air
handling unit with flexible connections
(optional equipment) that dampen unit
vibrations and compensate for the
misalignment of duct and air handling
unit outputs.
Flexible connections are fitted with
sealed flanges. Flexible flanges should
be connected to the ducts using self-
tapping screws or additional clamping
elements.
The components used to connect the
ducts are not included in the standard
delivery.
Air ducts must not support their weight
!
on the air handling unit
15
