6.2 CONNECTION TERMINAL 1 (T1)

Terminal 1 (T1) is connected at the factory to the uPC3 controller and is a dedicated terminal
for the connection of peripheral Control elements that exist outside the base unit of the unit
and therefore could not be connected at the factory. Additional Control elements outside the
VTS range can also be connected to Terminal 1 (T1). Terminal 1 is located in the Control
switchgear.

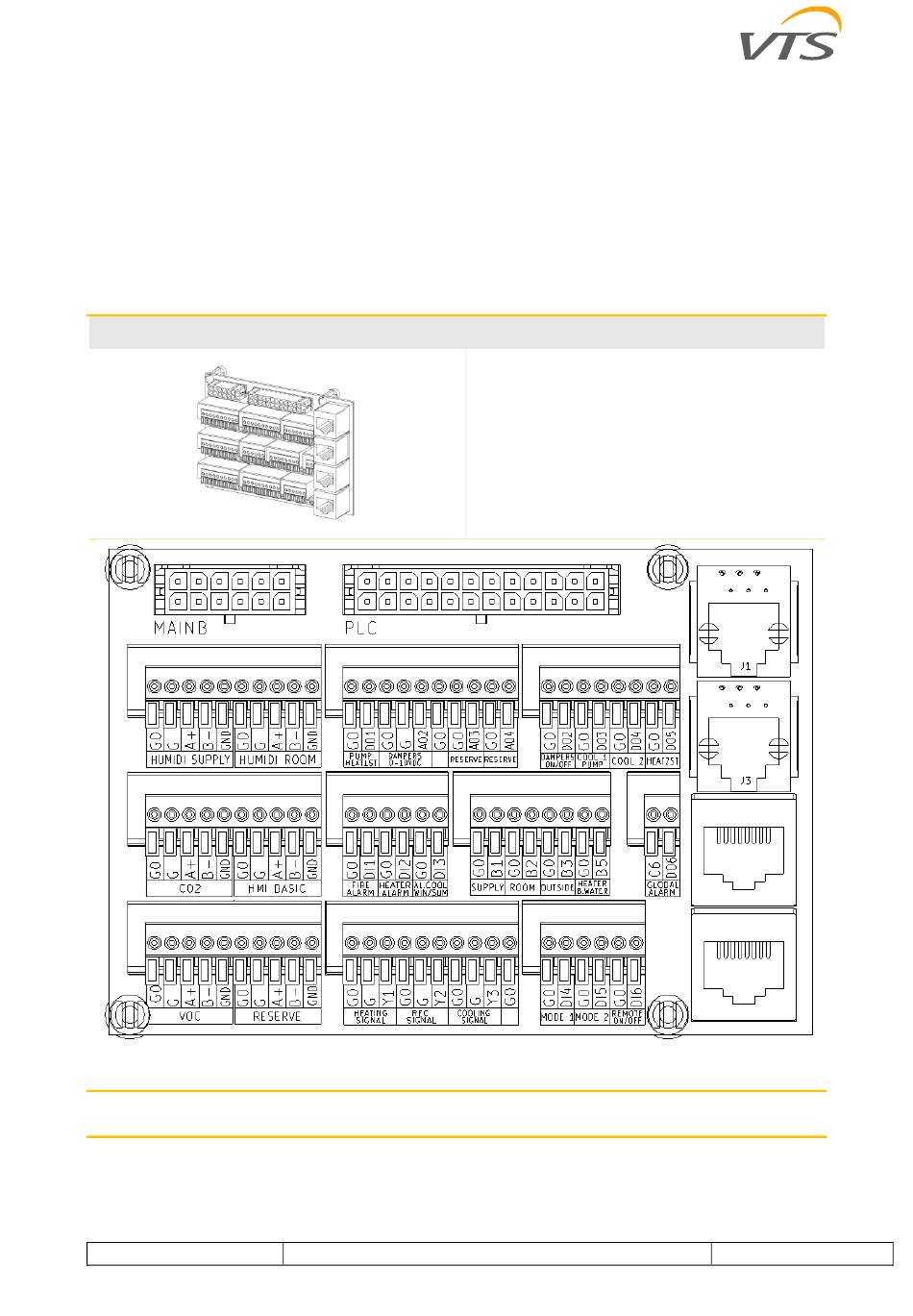

CONNECTION TERMINAL 1 (T1)
Terminal 1 (T1) has universal function designations. In some configurations, the contact designations
may conflict with the connection instructions. In this case, the connection instructions are valid.
www.vtsgroup.com
A - Terminal 1 (T1) - place for connecting
peripheral Control elements (signal of water
valve actuators, duct sensors, etc.).
B - connection of the water pump of the main
heater.
C - Panel power connection and main switch.
