VTS Medical Systems VENTUS COMPACT VVS021c Instructions For Use Manual page 112

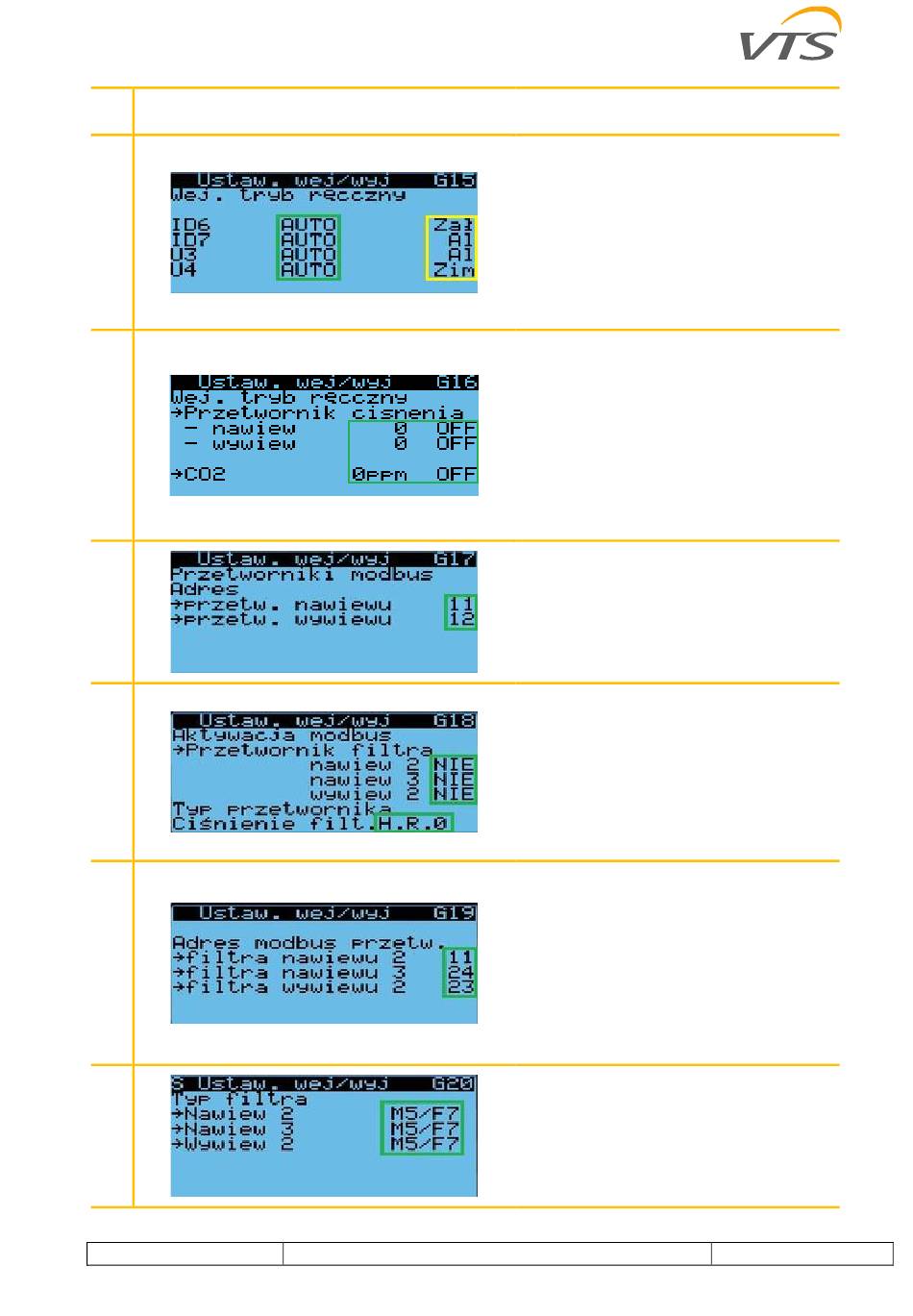

G15
G16
G17
G18
G19
G20
www.vtsgroup.com OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
•
"ID5" - selection of ID5 digital input mode
between automatic or manual
•
"ID6" - selection of ID6 digital input mode
between automatic (resulting from the
actual signal applied to the input) or manual
(OFF/ON)
•
"ID7" - selection of digital input mode ID7
between automatic or manual
•
"U3" - selection of U3 digital input mode
between automatic or manual
•
"U4" - selection of digital input mode U4
between automatic or manual
•
"Supply" - selection of the operating mode
of the duct supply pressure transducer
between automatic (resulting from the
actual signal read by the transducer) or
manual (expressed in Pa)
•
"Exhaust" - selection of the operation mode
of the duct exhaust pressure transmitter
between automatic or manual
•
"CO2" - selection of the operating mode of
the channel CO2 transmitter between
automatic or manual (expressed in ppm)
•
"Supply air transducer" - Modbus address
of the channel supply
transducer
•
"Exhaust transducer" - address of the
ducted exhaust pressure transducer on the
Modbus
•
"Filter transducer - supply 2" - activation
of pressure transducer 2 for supply filter
•
"Filter transducer - supply air 3" -
activation of pressure transducer 3 for the
supply air filter
•
"Filter transducer - extract 2" - activation
of 2nd pressure transducer for extract filter
•
"Transducer type" - type of selected
additional pressure transducers for filters
•
"Modbus address of supply air filter
transducer 2" - address in Modbus network
of transducer 2 for supply air filter
•
"Modbus address of supply air filter
transmitter 3" - address in Modbus network
of transmitter 3 for supply air filter
•
"Modbus address
converter 2" - address in Modbus network
of converter 2 for exhaust filter
•
"Filter type - supply 2" - filter type for the
2nd transmitter for the supply filter
•
"Filter type - supply 3" - filter type for the
3rd transmitter for the supply filter
•
"Filter type - extract 2" - filter type for 2nd
transmitter for extract filter
air pressure
of exhaust filter
112
