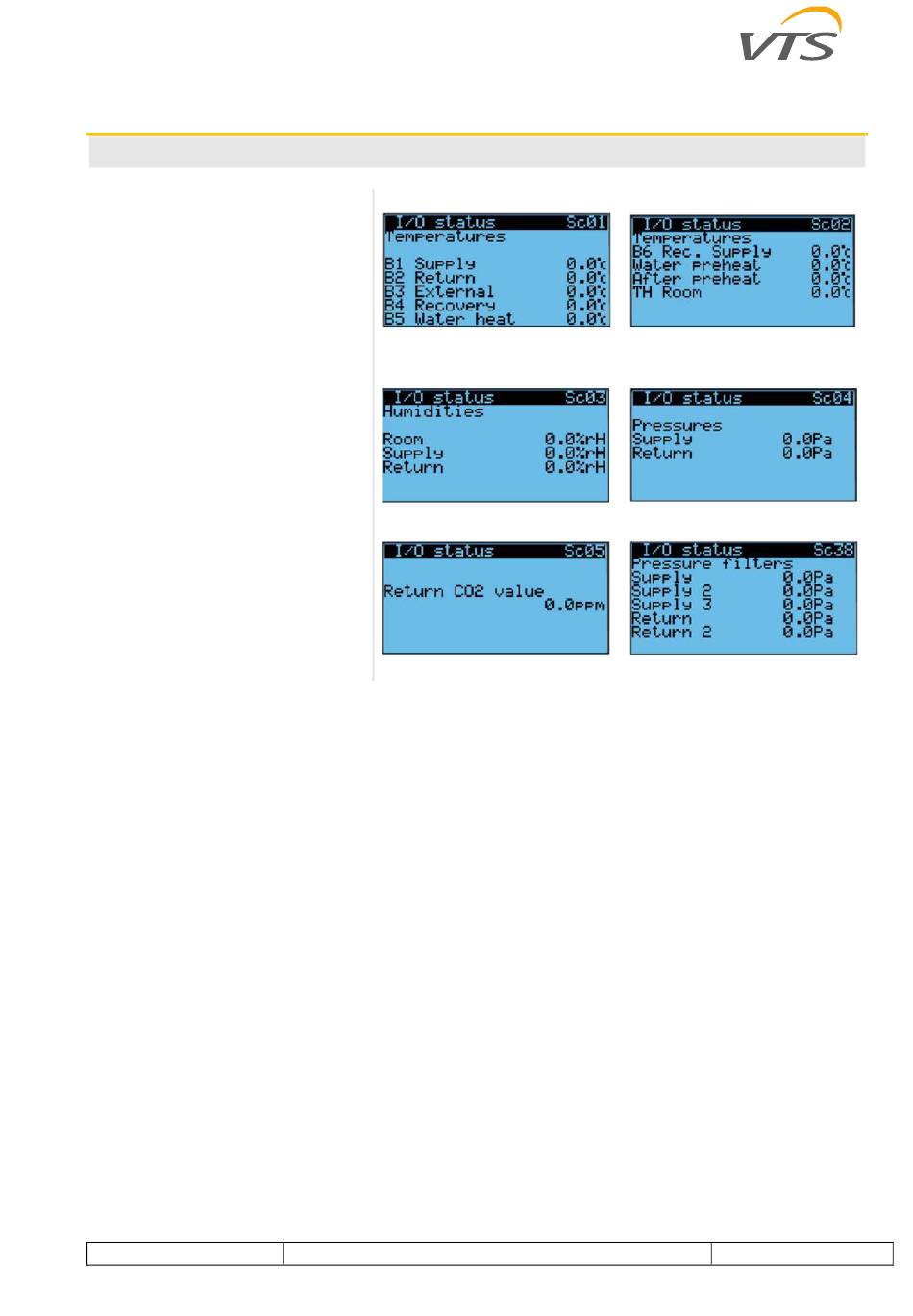

CHECK OF SENSOR READINGS
•
check if the readings
temperature, pressure, CO2 and
humidity sensors are correct (at
the beginning, when the air
handling unit is powered but not
operating, temperatures sent to
the controller from temperature
sensors should oscillate within
the ambient temperature range of
the air handling unit's air, while
the remaining transmitters and
sensors should show typical
values for the given environment
- e.g. most often for the CO2
sensor it will be values below
600ppm for
and initially zero values of flow
and pressure before starting the
fans on transmitters' pressure,
their values should
accordingly within the expected
range once the unit is set up for
operation).
