2.2.2

INSTALLATION OF VENTUS COMPACT AIR HANDLING UNIT

!
! The control panel should be located on:
•
foundation screed,
•
concrete cast into the floor of the steel foundation frame,
•
a specially prepared rigid steel structure
! The foundation, frame or steel structure must be flat and level and should have sufficient strength
to match the weight of the control panel including the weight of the media.
! The foundation, frame or steel structure must be flat and level and should have sufficient strength
to match the weight of the panel.
! In stacked units, the part of the upper unit which projects beyond the contour of the lower unit
must be supported by a suitable substructure (See SUPPORTING THE TOP BLOCKS OF
AHUS).
! The height of the screed or foundation frame must allow for the installation of a drip tray drain
trap. For drip trays installed in the lower sections of the air handling unit, it is necessary to provide
the unit with an additional foundation or to create a recess in the floor directly under the siphon.
(See DRIPPING).
! Any optional section that is present in the upper air path requires adequate support.
!
The dimensions of the base block and additional functions are available in the unit's technical
.
data sheet

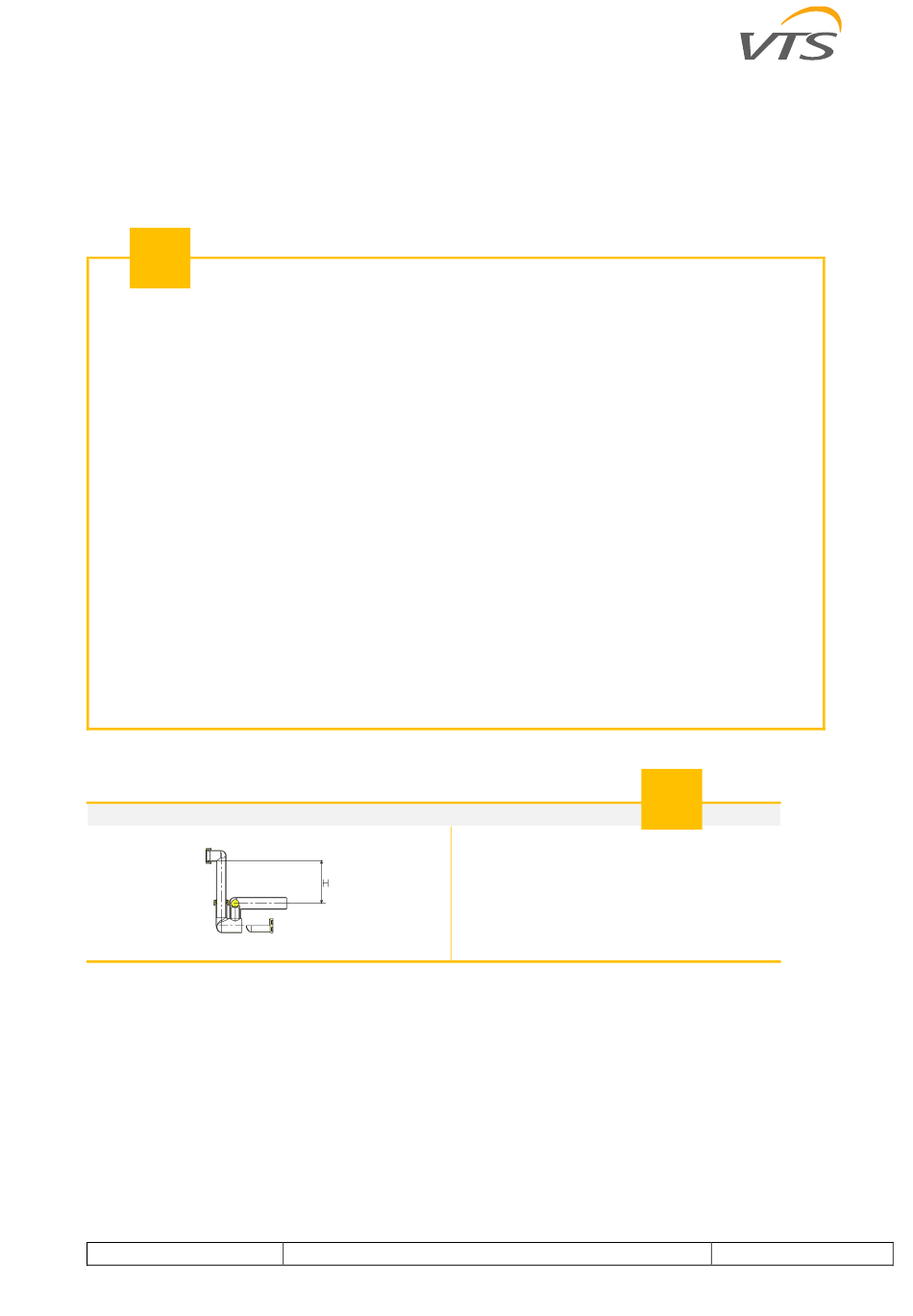

CONDENSATE DRAINAGE
!
The dimensions of the base block and additional functions are available in the unit's technical
.
data sheet
www.vtsgroup.com
! When planning the foundation of the unit,
provision must be made to drain the
condensate from the drip trays.
H [mm] = total fan discharge in mm
water column (Pa*0.1)
