FUNCTION SETTINGS - ADVANCED FEATURES (cont'd)
FUNCTION SETTINGS - ADVANCED FEATURES (cont'd)
www.vtsgroup.com

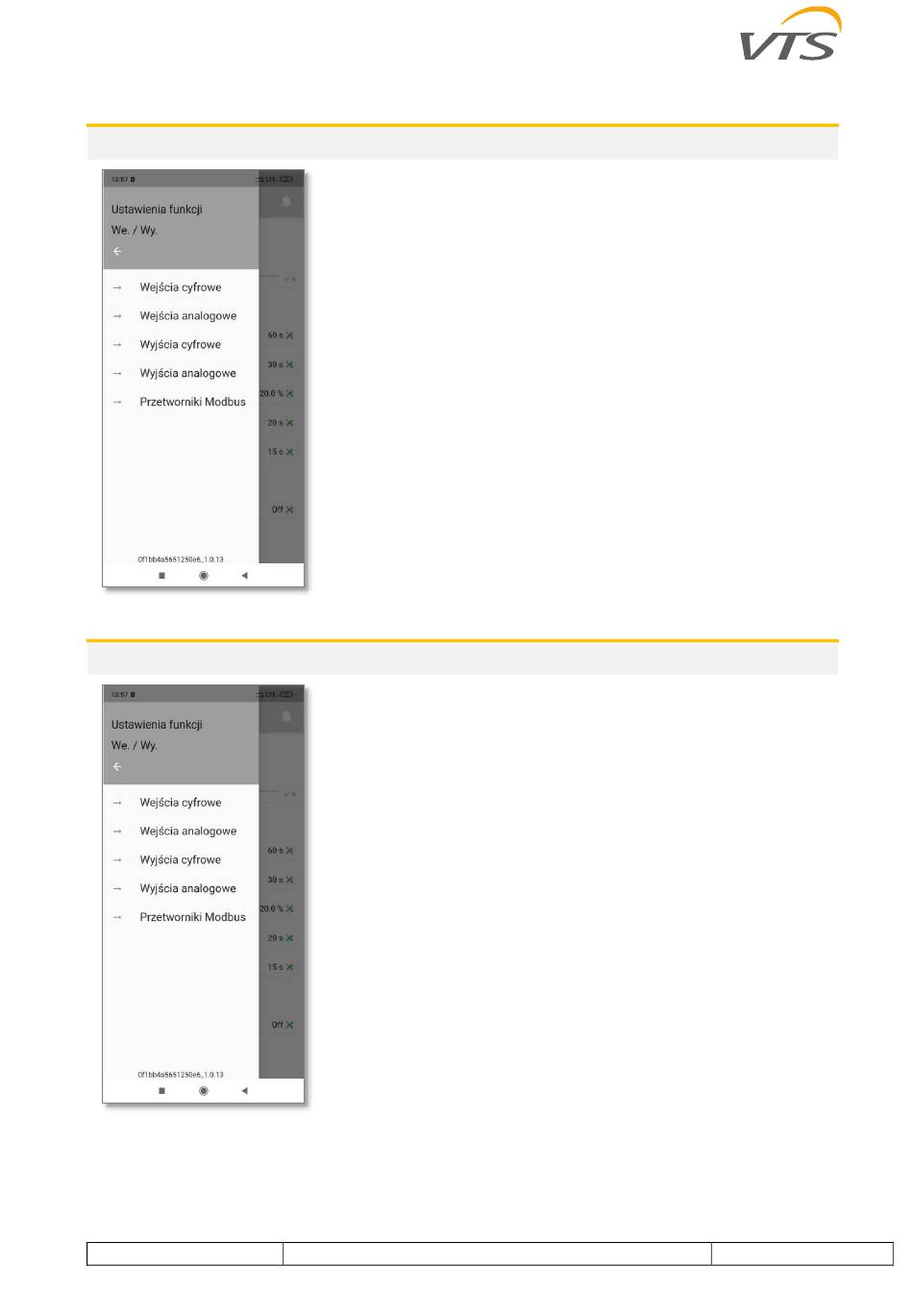

I/O. - Configurable digital and analogue inputs and outputs as well as
ModBus
and analogue inputs and outputs as well as ModBus signals.
The inputs and outputs have been labelled with the functions they are
assigned, e.g. DI1 - Fire alarm - is the digital input responsible for the
fire alarm.
Digital inputs,
Analogue inputs,
Digital outputs,
Analogue outputs,
Modbus transducers - ability to view and edit parameters
relating to transducers: pressure, humidity, CO2,
I/O EXPANSION MODULE
Main board - allows the reading of the parameters of the signals
connected to the main board of the control panel, the
activation/deactivation of the expansion board, as well as the
setting of values such as: maximum pressure values, pressure
offsets,
EC PCB - it is possible to change the settings of the inputs and
outputs present on the PCB
HMI Basic - allows the settings for the HMI Basic panel to be
edited
UNIT
Adjustment
BMS - variables used for communication with BMS systems
Access levels - there are 3 levels of access: user, service
technician and manufacturer.
OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
signals.
79
