IMPLEMENTATION

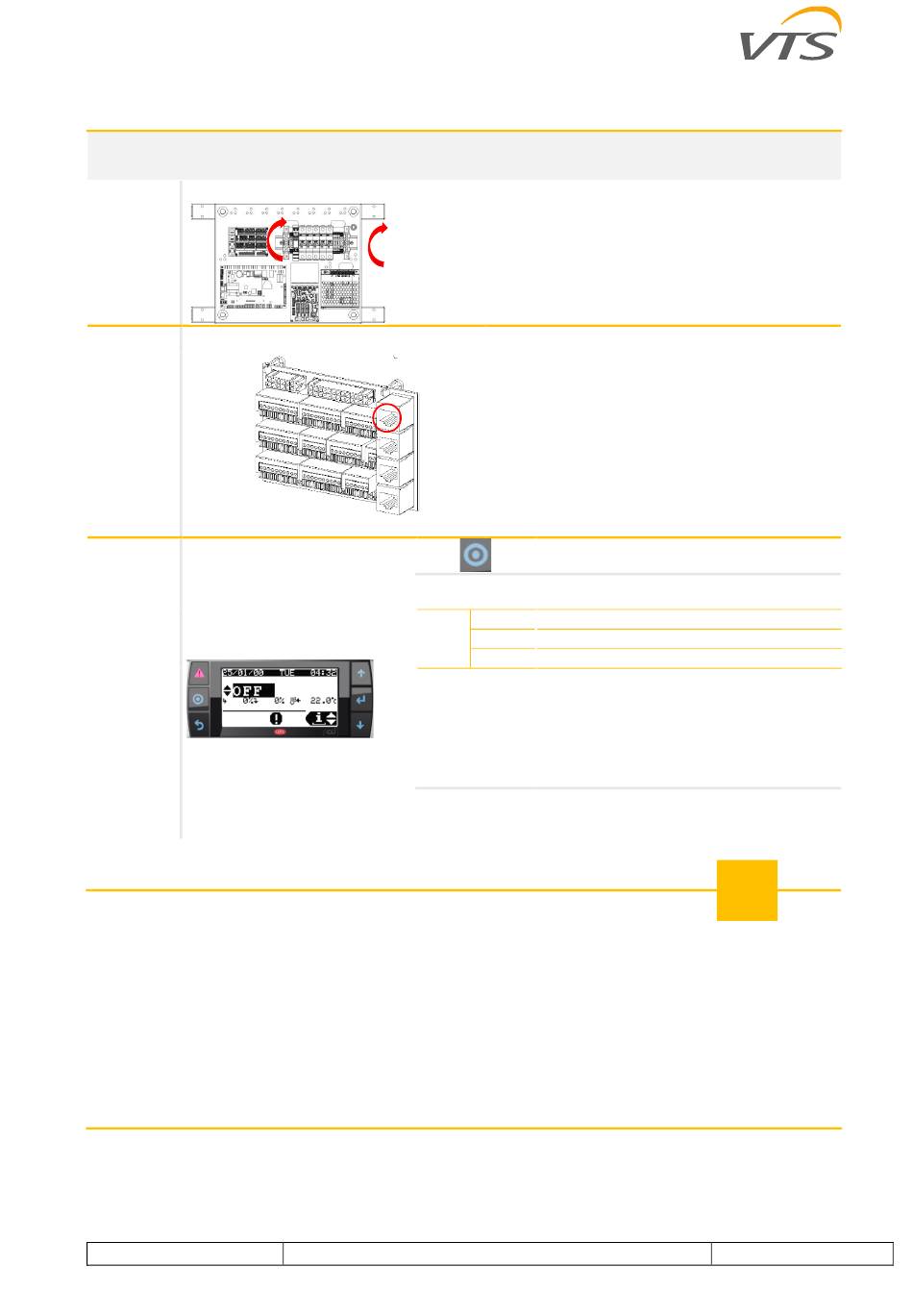

PLUG&PLAY CONTROL PANEL COMMISSIONING
Switch on
the power
supply to
the control
panel
Enable
HMI
Advanced*
Switch to
OFF mode
to any
other mode
(work
profile) as
preferred*
! The start-up of the air handling unit is absolutely blocked by a fire alarm, the tripping of the thermal
fan motor protection, the triple tripping of the electric heater protection and the triple tripping of the
anti-FROST thermostat. Each of these events requires the cause of the alarm to be removed and
then cleared.
! Correct operation of the power supply and proper functioning of the BIOS is indicated by the yellow
and green LEDs on the control PCB.The system is ready for operation half a minute after power-
up.
! - * Changing from OFF to another operating mode is also available from the HMI Basic 2
www.vtsgroup.com
Physical
OFF
ON
StBy
AUTO
OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
Virtual
http:/192.168.1.111
Change in device status (operating mode)
Panel operation switched off (voltage
reaching the panel)
One of the user configuration profiles
ECO
OPTI One of the user configuration profiles
COMF One of the user configuration profiles
Standby state
In the StBy state, the set room temperature
is maintained. The fans are periodically
activated to maintain the required air
temperature. This mode is best at night when
there is low or no thermal occupancy in the
building.
Schedule and calendar operation
of the unit.
!
