VTS Medical Systems VENTUS COMPACT VVS021c Instructions For Use Manual page 121

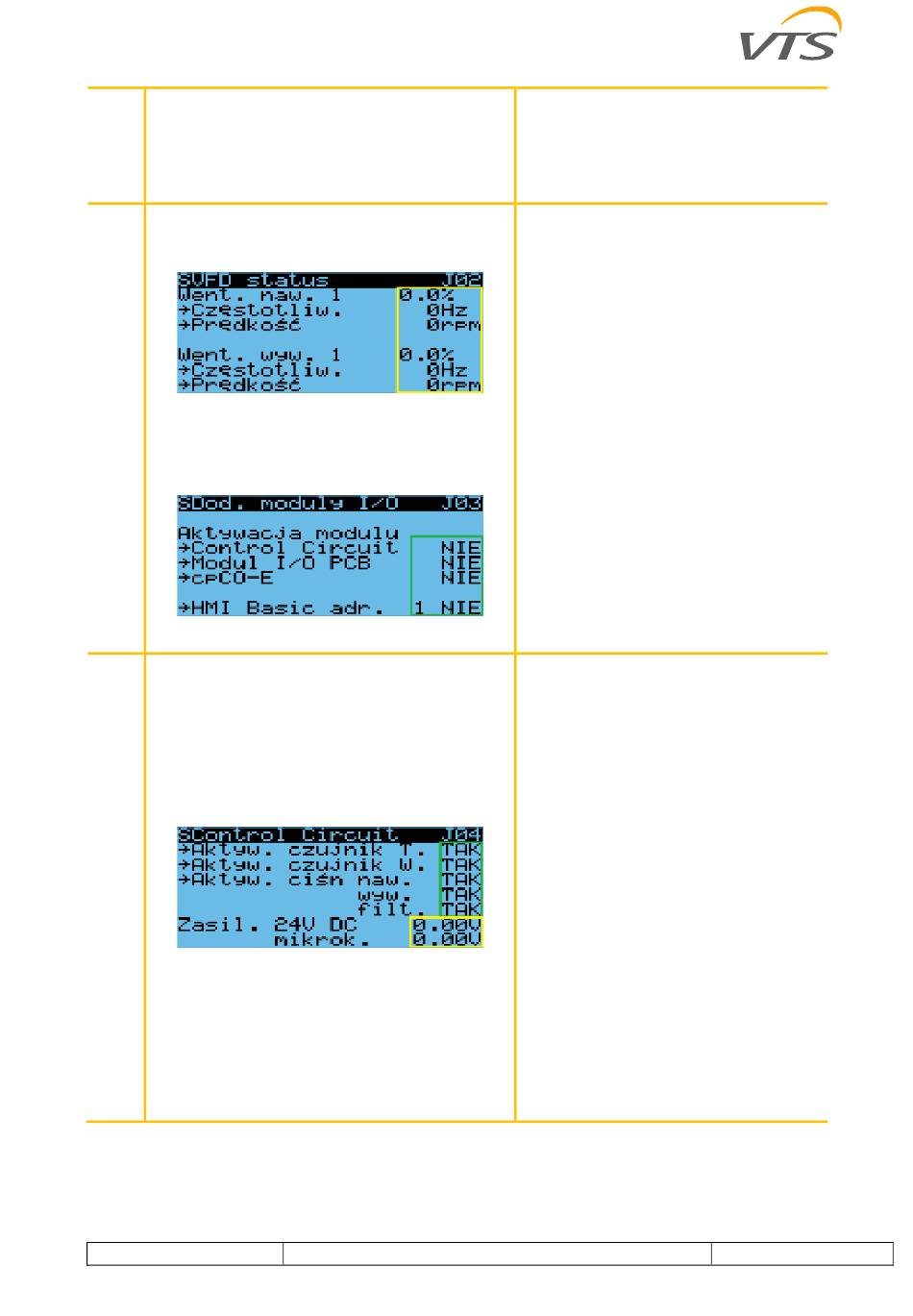

J02
J03
J04
www.vtsgroup.com OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
analogue output responsible for the level
of control of the mixing chamber
•
"Supply" - setting of supply fan control in
Eco mode
•
"Exhaust" - setting of exhaust fan control
in Eco mode
•
"Supply air fan 1" - current control of 1
supply air motor
•
"Frequency" - current
frequency of 1 supply motor
•
"Speed" - current operating speed of 1
fan motor
•
"Exhaust fan 1" - current control of 1
exhaust motor
•
"Frequency" - current
frequency of 1 exhaust motor
•
"Speed" - current operating speed of 1
exhaust motor
•
"Control Circuit"
deactivation of the Control Circuit module
(Mainboard)
•
"I/O PCB module" - Activate/deactivate
I/O module PCB (EC-PCB)
•
"cpCO-E" - activation/deactivation of
cpCO-E module
•
"HMI Basic" - address on the controller's
Modbus and activation/deactivation of
HMI Basic
•
"Temperature sensor activation" -
activation/deactivation of the exhaust
temperature sensor before recovery (B2)
of the Control Circuit module
•
"Humidity sensor
activation/deactivation of the exhaust
humidity sensor before recovery (B2) of
the Control Circuit module
•
"Supply air pressure activation" -
activation/deactivation of the supply air
fan pressure transducer of the Control
Circuit module
•
"Activation of exhaust pressure" -
activation/deactivation of the exhaust fan
pressure transmitter of the Control Circuit
module
•
"Activation of filter
Activation / deactivation of the filter
control pressure transducers of the
Control Circuit module
•
"24V DC power supply" - current value
of the Control Circuit module supply
voltage
•
"Microcontroller power supply" - current
value of the Control Circuit module's
microcontroller power supply voltage
operating
operating
- activation /
activation" -
pressure" -
121
