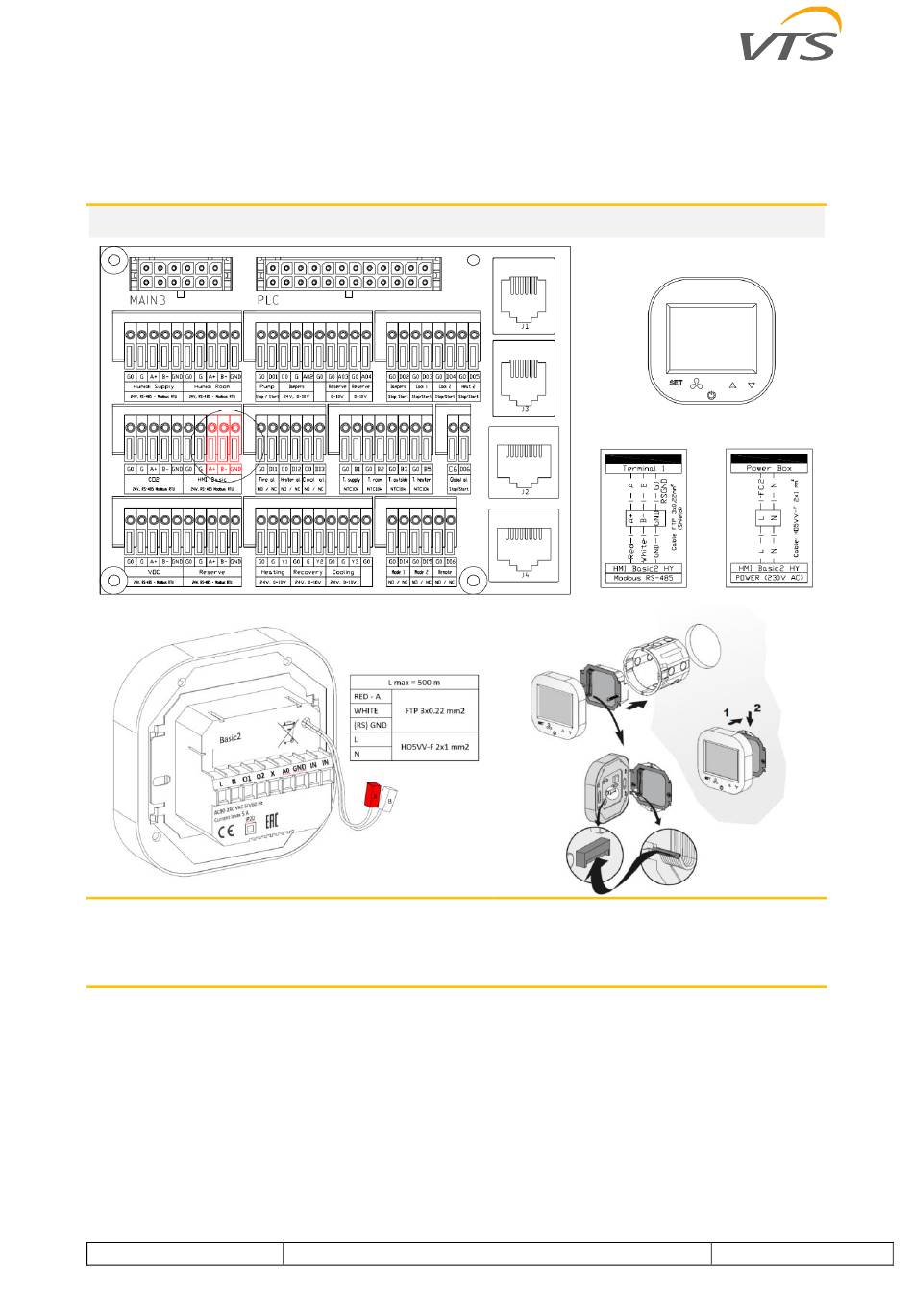

6.11.2 HMI BASIC (2HY)
HMI BASIC 2HY
HMI connections are powered by 110-230V AC mains voltage. To ensure correct operation, separate power
and control cables must be used, not exceeding the recommended length of 500m. The following cable types
are recommended:
•
supply: H05VV-F 2x1 mm
•
communication: FTP 3x0.22 mm
www.vtsgroup.com
2
2
OIMM VENTUS COMPACT - ver. 6.0.0 (06.2024)
55
