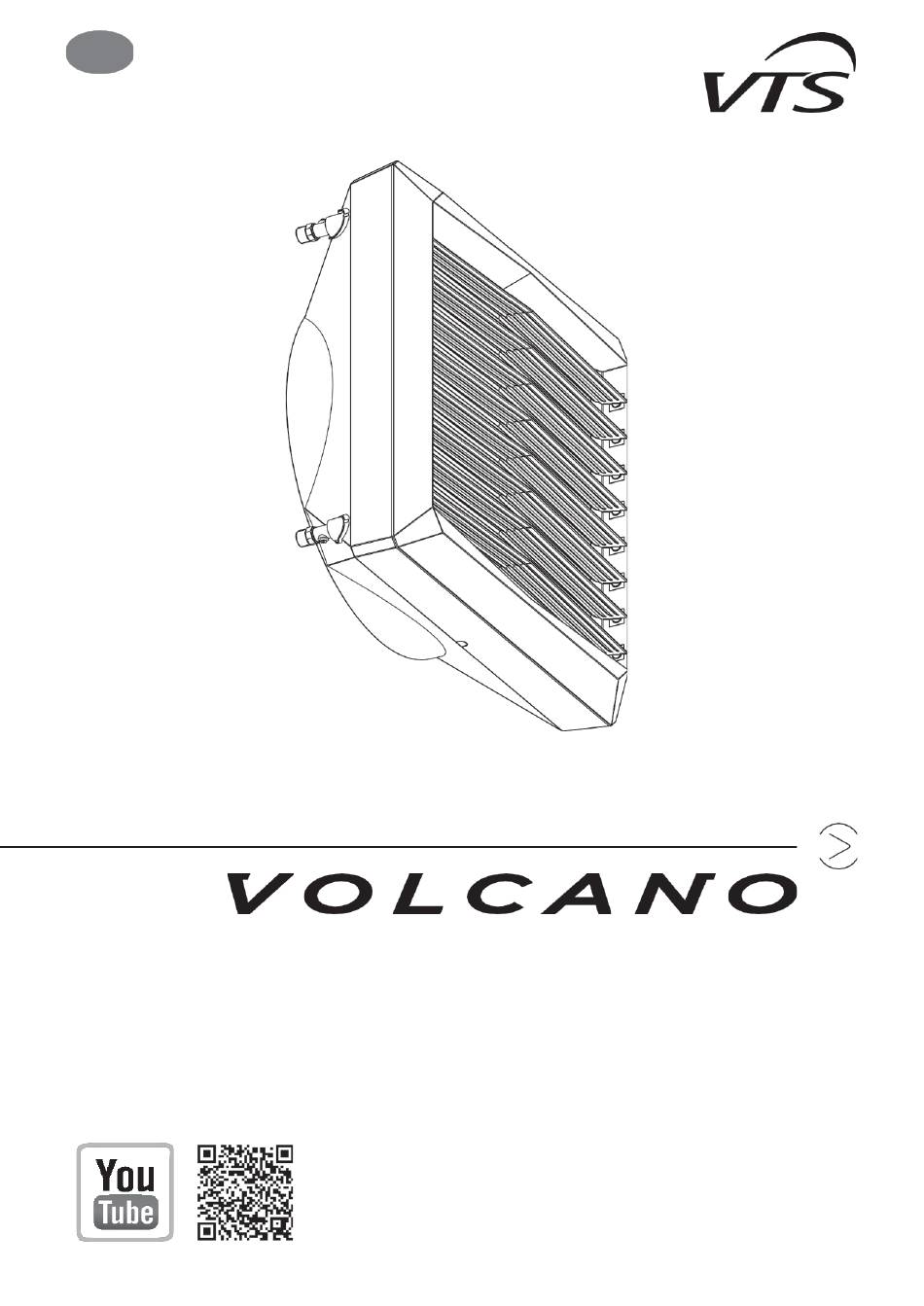

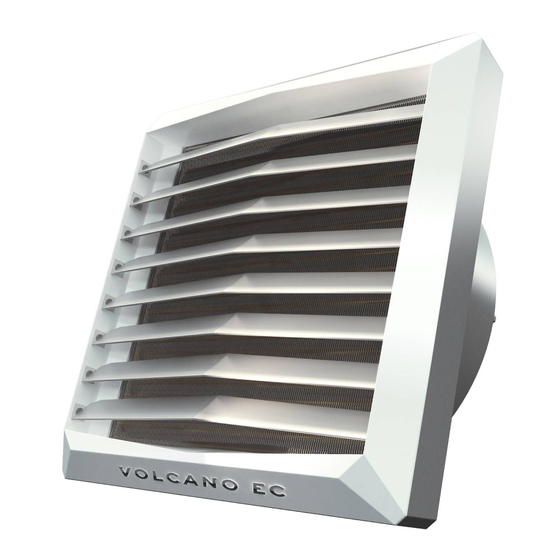

- Page 1 Technical documentation VOLCANO VR Mini VOLCANO VR Mini 3 VOLCANO VOLCANO VOLCANO Check us on VOLCANO VOLCANO VR-D Mini VOLCANO VR-D VR-ver. 5.0 (06.2022)
- Page 2 VOLCANO VR Mini VOLCANO VR Mini 3 VOLCANO VOLCANO VOLCANO VOLCANO VOLCANO VR-D Mini VOLCANO VR-D TABLE OF CONTENTS 1. INTRODUCTION 1.1 Precautions, requirements, recommendations 1.2 Transport 1.3 Initial steps taken before instalation 2. DESIGN, USE, PRINCIPLE OF OPERATION 2.1 Intended use 2.2 Principle of operation 2.3 Construction of the device 2.4 Overall dimensions...
- Page 3 2.2 PRINCIPLE OF OPERATION The heating medium (hot water) gives up heat to the heat exchanger using a highly developed heat exchanger, ensuring great heating power (Volcano VR Mini – 3-20 kW, VR Mini 3 – 4-27 kW, VR 1 – 5-30 kW, VR 2 – 8-50 kW, VR 3 – 13-75 kW, VR 4 – 10-90 kW). A highly effective axial fan (1000-5700 m /h) draws air in from the room, pumps it through the heat exchanger and then sends it back into the room.
- Page 4 Connecting ferrules (male thread ¾”) are on the back panel of the unit. Our series of types includes a single-row heat exchanger in VOLCANO VR1 and two-row heat exchanger in VOLCANO VR Mini/VR2 and in VOLCANO VR3/VR Mini 3 three-row heat exchanger and four-row heat exchanger in VOLCANO VR4. The glycol concentration in the heating medium can be up to 50%.
- Page 5 – inlet air temperature; T – outlet air temperature; P – heating capacity; Q – water flow; Q - air flow rate; Δp – pressure drop in the heat exchanger Volcano VR Mini 3 [°C] Parameters T 90/70 [°C] 70/50 [°C] 45/35 [°C] 40/30 [°C]...
- Page 6 VOLCANO VR Mini VOLCANO VR Mini 3 VOLCANO VOLCANO VOLCANO VOLCANO VOLCANO VR-D Mini VOLCANO VR-D – inlet water temperature; T – outlet water temperature; T – inlet air temperature; T – outlet air temperature; P – heating capacity; Q –...
- Page 7 – inlet water temperature; T – outlet water temperature; T – inlet air temperature; T – outlet air temperature; P – heating capacity; Q – water flow; Q - air flow rate; Δp – pressure drop in the heat exchanger Volcano VR3 [°C] Parameters T...
- Page 8 – outlet water temperature; T – inlet air temperature; T – outlet air temperature; P – cooling capacity; Q - air flow rate VOLCANO VR4 VOLCANO VR Mini 3 Parameters Tz/Tp [°C] Parameters Tz/Tp [°C] 7/12 [°C] 7/12 [°C] Pg [kW] Pg [kW] [°C]...
- Page 9 Volcano VR Mini Volcano VR Mini 3 fan speed air flow m³/h 2100 1650 1100 2000 1550 1000 noise level for Volcano AC* dB(A) noise level for Volcano EC* dB(A) AC motor electric power** EC motor electric power** electricity consumption**...
- Page 10 * for vertical air guides adjustment distance between units – recommended distance 6-12m (Volcano VR1, VR2, VR3), 3-7m (Volcano VR Mini), in order to ensure even hot air diffusion range of air stream * for horizontal air guide adjustment ** for symmetric air guide adjustment at an angle of 45°...
- Page 11 Examples of arrangement of air heating units mounted on a wall Top view 4.1 INSTALLATION WITH A BRACKET The bracket is optional. In order to attach a bracket to the device, use crown drill bits to drill holes in the top and bottom panels of the heating unit (in places marked by 6), and insert sleeves into the holes.
- Page 12 Marks L [mm] NOTE! In case of VOLCANO VR Mini 3 and VOLCANO VR4 heaters we recommend to connect the power supply to the upper connector in order to additionally improve the heat exchanger efficiency EXAMPLE OF A HYDRAULIC SYSTEM: 1.
- Page 13 DRAIN TRAY FOR VOLCANO VR1-4 DRAIN TRAY FOR VOLCANO VR Mini / VR Mini 3 1. Secure the trays firmly to the VOLCANO housing with two M4 x 12 screws on each side of the drip tray like is shown on the picture above...
- Page 14 NOTICE The installation must be equipped with disconnectors at all power supply poles. Recommended safety: overload disconnector VOLCANO VR Mini, VR Mini 3, VR-D Mini – 1 A, VOLCANO VR1, VR2 – 2 A, VOLCANO VR3, VR4 VR-D - 4A) and differential current safety. VOLCANO VR Mini, VR Mini 3, VR1, VR2, VR3, VR4, VR-D (fan) are equipped with a terminal block accepting 7 x 2,5 mm electric wires.
- Page 15 3 x 1.5mm wire ● Automation element drawings present the visualizations of model products only.. ● Do not connect more than one VOLCANO VR Mini device to SPEED CONTROLLER - ARW 0.6 ● Power supply voltage: 230V AV +/-10% one controller ●...
- Page 16 VOLCANO VR Mini VOLCANO VR Mini 3 VOLCANO VOLCANO VOLCANO VOLCANO VOLCANO VR-D Mini VOLCANO VR-D MODEL ● resistant sensing element: NTC 10K location ● ingress protection rating: IP66 ● Avoid places directly exposed to sunlight, electromagnetic waves ● mounting method: wall mounted etc.
- Page 17 8. TECHNICAL INFORMATION TO THE REGULATION (EU) NO 327/2011 IMPLEMENTING DIRECTIVE 2009/125/EC Model: VOLCANO VR Mini/ VR VOLCANO VR1/VR2 VOLCANO VR3/VR4 Mini 3 27.7% 30.6% 32.3% Static VSD-No 2016 VTS Plant Sp. z o.o., KRS 0000144190, Polska 1-2-2702-0005 1-2-2701-0291 1-2-2701-0292 0,105kW, 1500m³/h, 70Pa...
- Page 18 VR Mini 3 VOLCANO VOLCANO VOLCANO VOLCANO VOLCANO VR-D Mini VOLCANO VR-D Model: VOLCANO VR Mini EC/ VOLCANO VR1/VR2 EC VOLCANO VR3/ VR4 EC VR Mini 3 28.5% 27.5% Static VSD-No 2016 VTS Plant Sp. z o.o., KRS 0000144190, Polska...
- Page 19 9. SERVICING 9.1 PROCEDURES IN CASE OF DEFECTS VR Mini, VR Mini 3, VR1, VR2, VR3, VR4, VR-D Problem Check points Description ● assembly of the exchanger connections with two wrenches (adjustment), which safeguards against internal twisting of the collectors, ●...
- Page 20 VOLCANO VR Mini VOLCANO VR Mini 3 VOLCANO VOLCANO VOLCANO VOLCANO VOLCANO VR-D Mini VOLCANO VR-D Complaint Form VTS POLSKA Sp. z o.o. Al. Grunwaldzka 472 A 80-309 Gdańsk Polska www.vtsgroup.com The company submitting the notification: The company that installed the equipment: Date of notification: Type of device: Factory number*:...
