a. Remove any SFP or QSFP modules that might be in the PCIe cards.
b. Rotate the riser locking latch on the left side of the riser up and toward the fan modules.
The riser raises up slightly from the controller module.
c. Lift the riser up, shift it toward the fans so that the sheet metal lip on the riser clears the edge of
the controller module, lift the riser out of the controller module, and then place it on a stable, flat
surface.
5. Remove the PCIe card from the riser:
a. Turn the riser so that you can access the PCIe cards.
b. Press the locking bracket on the side of the PCIe riser, and then rotate it to the open position.
c. Swing the side panel off the riser.
d. Remove the PCIe card from the riser.
6. Install the PCIe card into the same slot in the riser:
a. Align the card with the card socket in the riser, and then slide it squarely into the socket in the
riser.
Make sure that the card is completely and squarely seated into the riser socket.

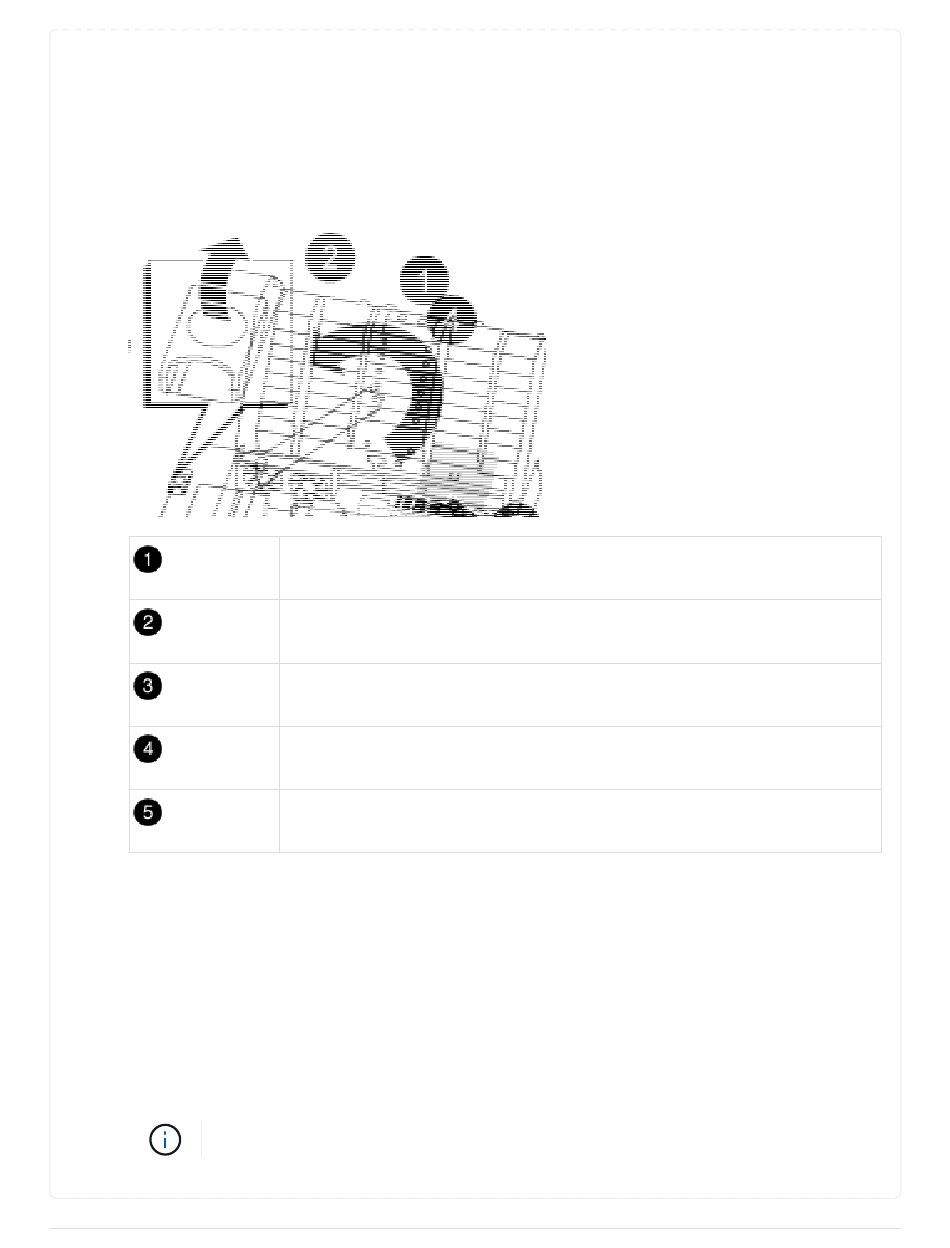

Air duct
Riser 2 (middle riser) or 3 (right riser) locking latch
Card locking bracket
Side panel on riser 2 or 3
PCIe cards in riser 2 or 3
