mezzanine card from the impaired controller module to the replacement controller module.

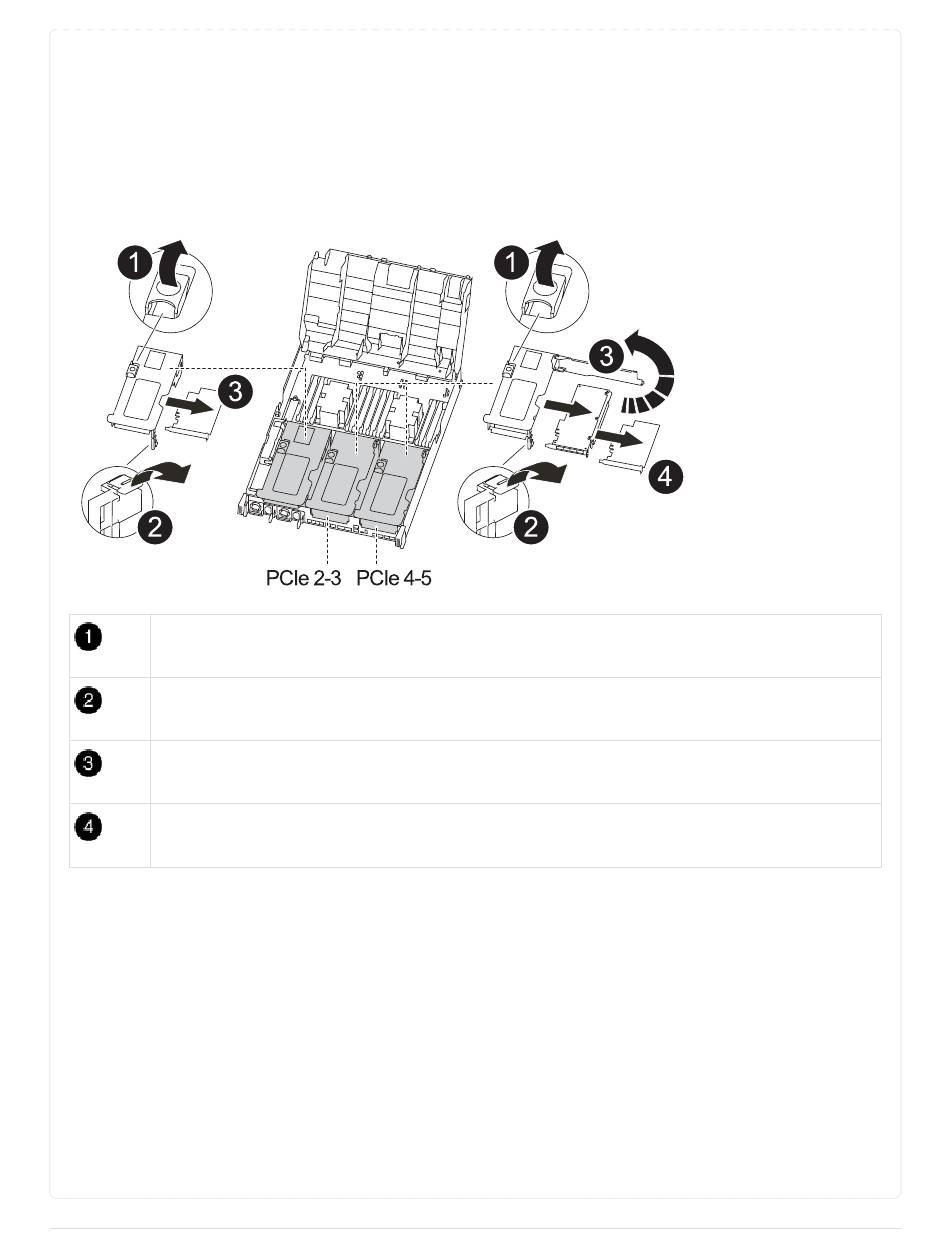

Moving PCIe riser 1 and 2 (left and middle risers):
Animation - Move PCI risers 1 and 2
Moving the mezzanine card and riser 3 (right riser):
Animation - Move the mezzanine card and riser 3
Riser locking latch
PCI card locking latch
PCI locking plate
PCI card
1. Move PCIe risers one and two from the impaired controller module to the replacement controller
module:
a. Remove any SFP or QSFP modules that might be in the PCIe cards.
b. Rotate the riser locking latch on the left side of the riser up and toward air duct.
The riser raises up slightly from the controller module.
c. Lift the riser up, and then move it to the replacement controller module.
d. Align the riser with the pins to the side of the riser socket, lower the riser down on the pins, push
the riser squarely into the socket on the motherboard, and then rotate the latch down flush with
the sheet metal on the riser.
e. Repeat this step for riser number 2.
