NetApp ASA C Series Install page 215

Step Perform on each controller module
Cable the HA interconnect ports:
• e0b to e0b
• e1b to e1b
[drw asac800 ha pair cabling]
Cable the cluster interconnect ports:
• e0a to e0a
• e1a to e1a
[drw asac800 tnsc clust cabling]
Cable the management ports to the management network switches [Illustration showing
location of the management ports on the back of the system]
DO NOT plug in the power cords at this point.
2. To perform optional cabling, see:
[Option 1: Connect to a Fibre Channel host]
◦
[Option 2: Connect to a 10GbE host]
◦
[Option 3: Connect to a single direct-attached NS224 drive shelf]
◦
[Option 4: Connect to two direct-attached NS224 drive shelves]
◦
3. To complete setting up your system, see
==== Option 2: Cable a switched cluster
Cluster interconnect and management network ports on the controllers are connected to switches while
the HA interconnect ports are cabled on both controllers.
Before you begin
Contact your network administrator for information about connecting the system to the switches.

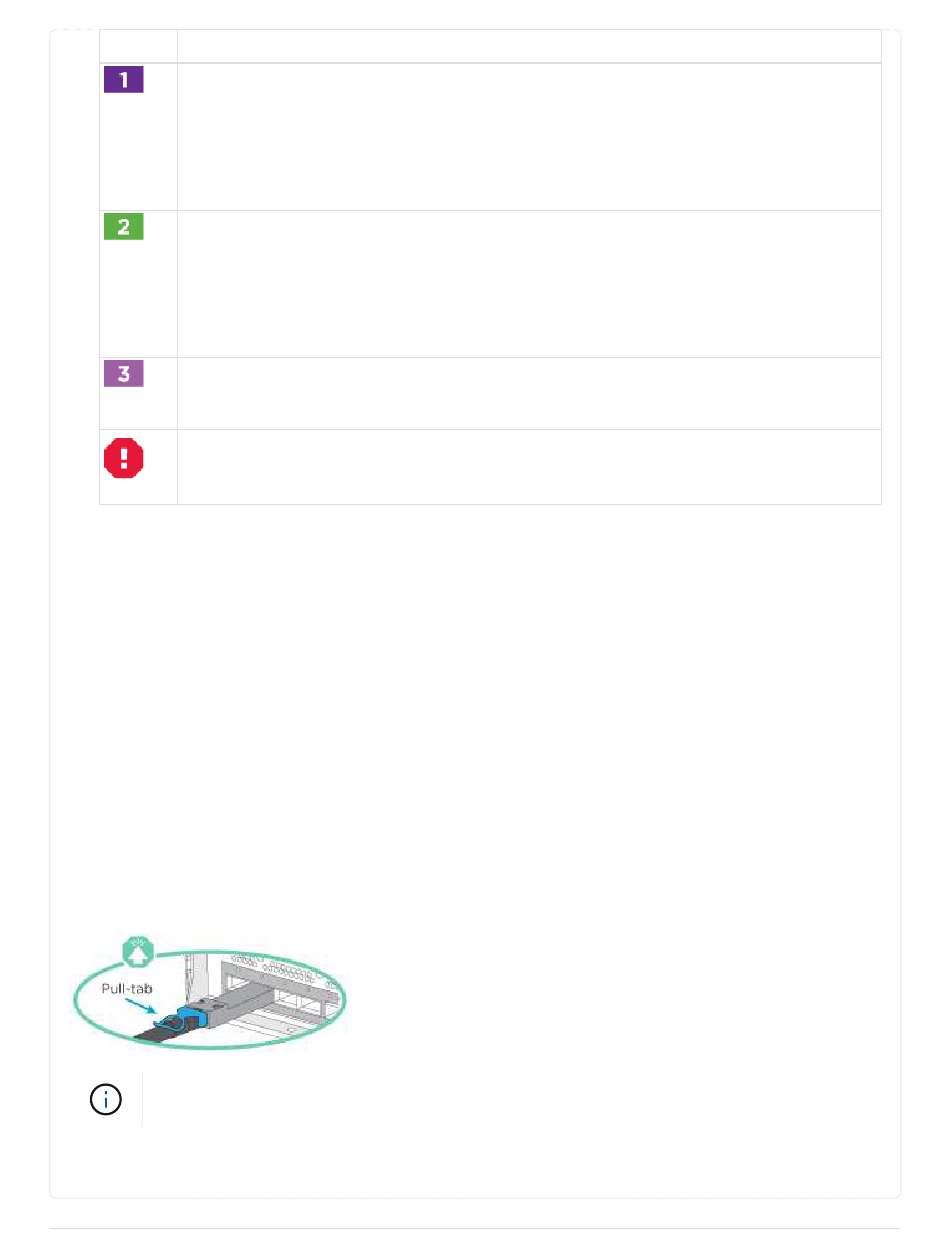

Be sure to check the illustration arrow for the proper cable connector pull-tab orientation.
As you insert the connector, you should feel it click into place; if you do not feel it click,
remove it, turn it around and try again.
Steps
Step 4: Complete system setup and configuration.
213
