Administrator's Guide for the VSX Series
System Back Panel Views

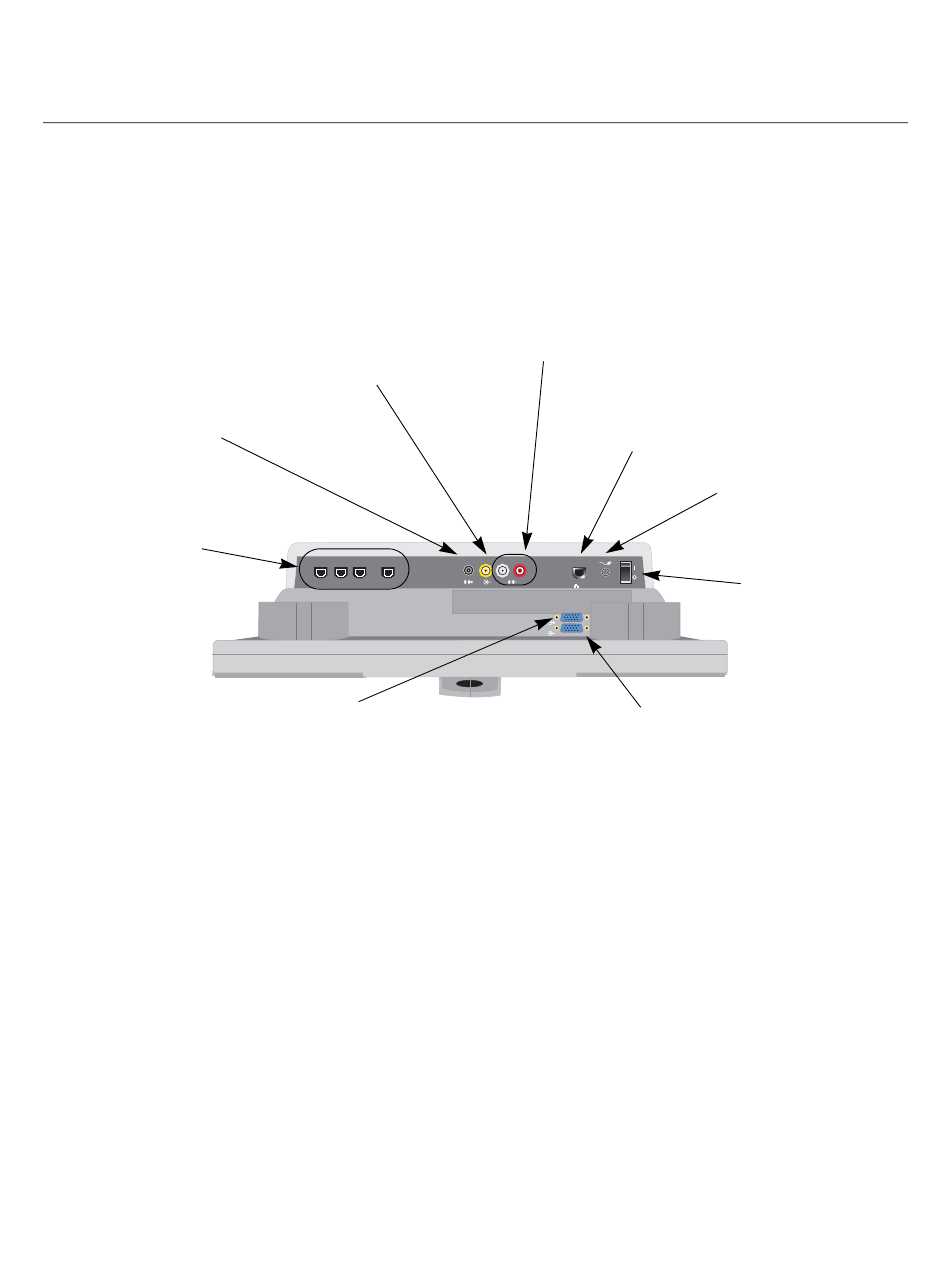

VSX 3000 Back Panel
Stereo connector
Optional: Connect
headphones or
desktop speakers
BRI connectors
(IP with ISDN systems only)
Optional: Connect to BRI
network
2 - 2
The connectors face downward on the VSX 3000 system. This is a view from
underneath the system.
Composite video connector
Optional: Connect camera or
VCR/DVD video output
4
3
2
1
Reserved for
future use
Audio connectors
Optional: Connect
VCR/DVD audio outputs
LAN connector
Required (except for
ISDN-only installations):
Connect to LAN
DC IN 12V
LAN
VGA input
Optional: Connect PC to use
system as a computer monitor
www.polycom.com/videodocumentation
Power connector
Required: Connect to
power supply
Power switch
(one of three)
