Polycom VSX Series Administrator's Manual page 28

Administrator's Guide for the VSX Series

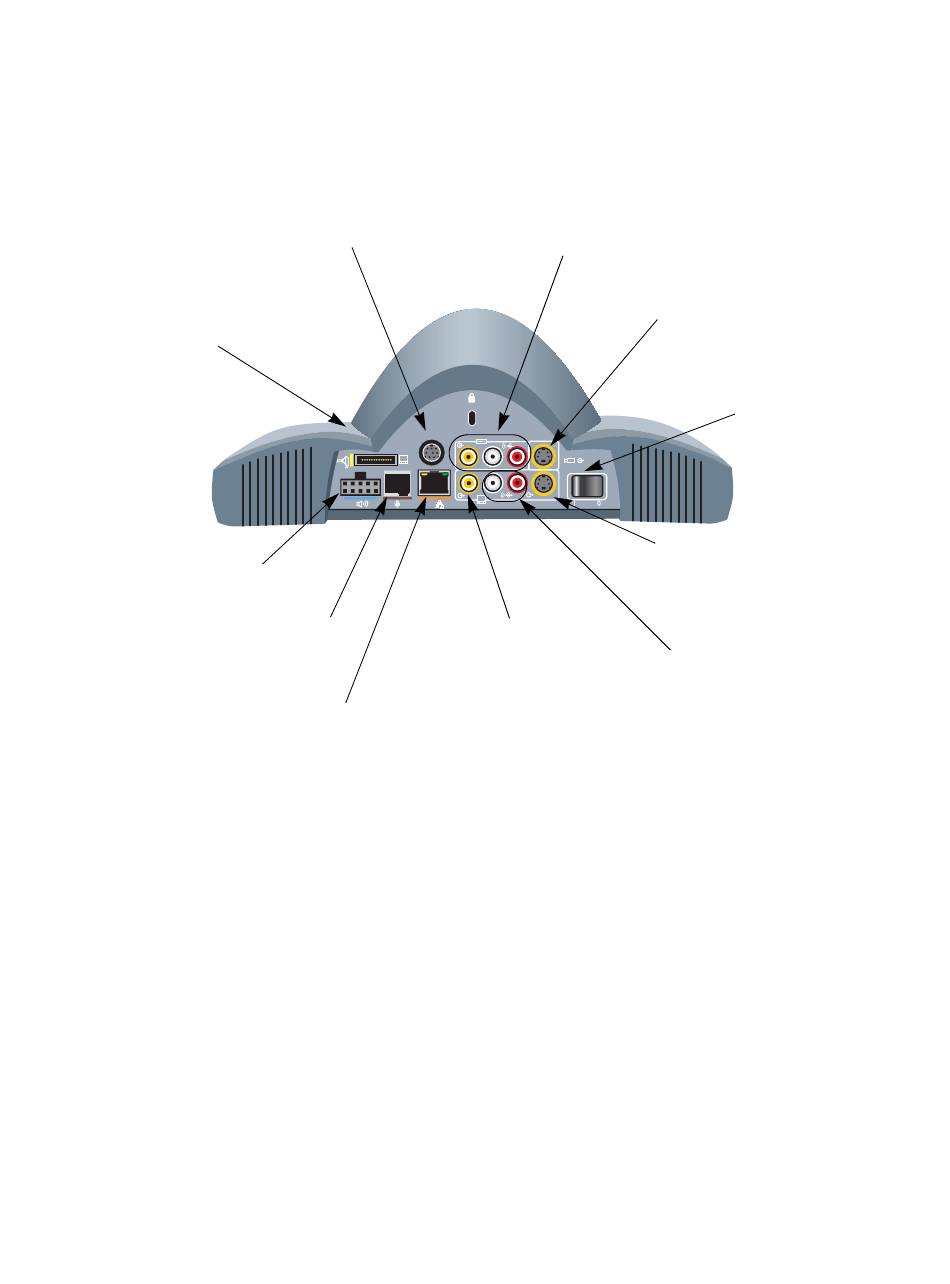

VSX 7000 Back Panel
VGA output
Optional: Connect additional
display adapter for use with a
TV or VGA monitor or a
projector
Power
connector
Required: Connect
subwoofer
Conference link connector
Required: Connect microphone
pod, VTX 1000, or Visual
Concert VSX
LAN connector
Required (except for
ISDN-only installations):
Connect to LAN
2 - 4
RS-232 port
Optional: Connect a touch-panel,
second camera control, or other
RS-232 device
VGA
2
3
VCR/DVD inputs
Optional: Connect VCR/DVD output to play
content into calls
0101
2
1
LAN
Composite video connector
Optional (required for
composite TV monitors):
Connect VCR video input to
record calls, or to composite
monitor
S-Video input
Optional: Connect a
second camera
Power switch
S-Video output
Required (except for
composite monitors):
Connect to TV monitor
Audio outputs
Optional: Connect VCR
audio input to record calls,
or connect to external
speaker system
