Administrator's Guide for the VSX Series
Connecting an ImageShare II
2 - 34
Refer to Setting up the Visual Concert VSX for additional set up information. The
Quick Tips for Visual Concert VSX provides information for people using the device
in meetings.
If you have purchased the ImageShare II device for use with the VSX 8000 system,
connect it as follows:

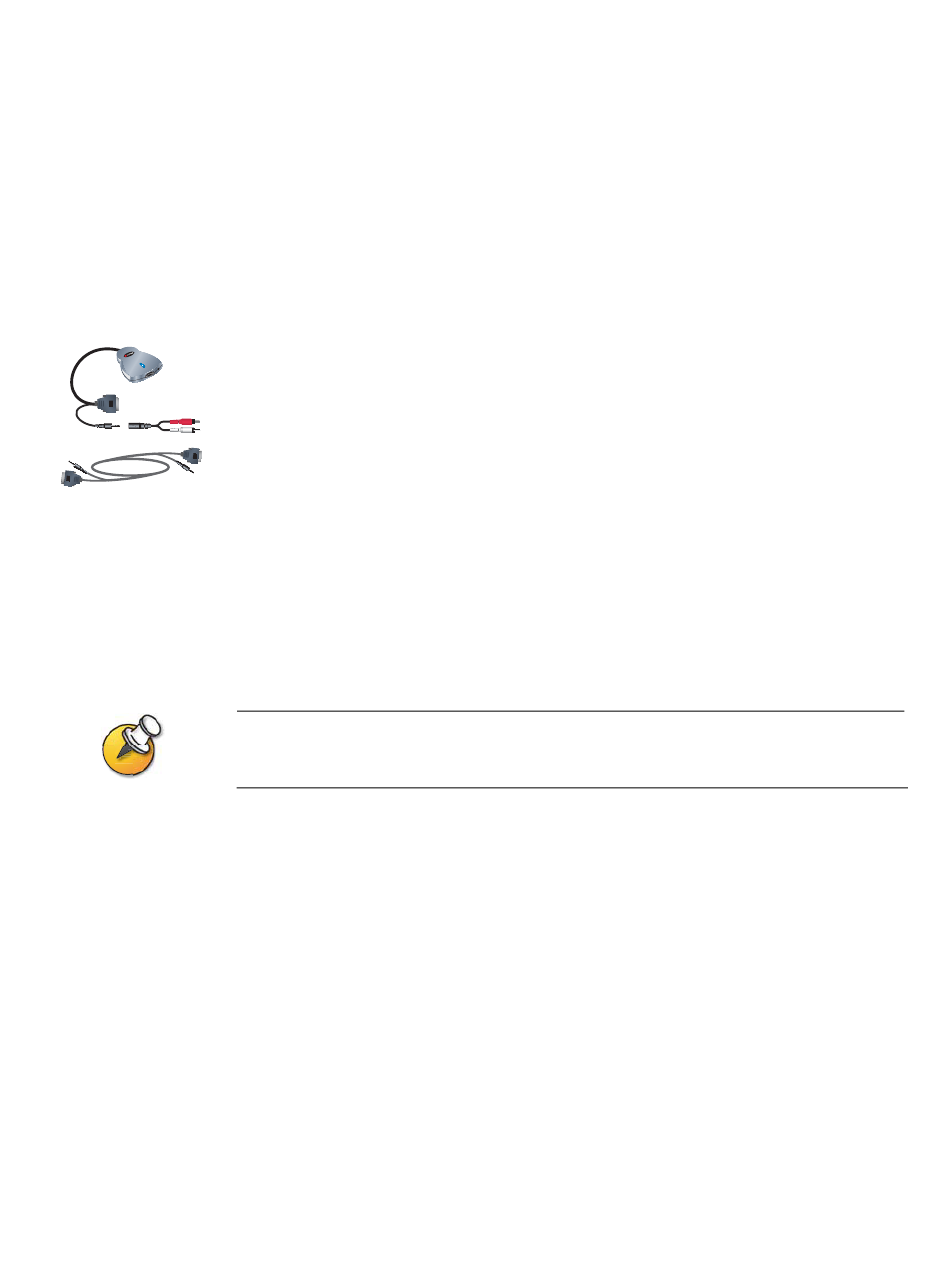

To connect an ImageShare II data collaboration unit to the system:
1. Connect the VGA portion of the ImageShare II unit's cable to the VSX 8000
system's VGA input.
2. Connect the audio connector on the ImageShare II unit's cable to an audio
adapter.
3. Connect the audio adapter to the VCR audio input connectors, to the left of the
infrared sensor connector.
4. When you are ready to connect a PC, use the PC cable to connect the PC's VGA
monitor output and headphone output to the ImageShare II unit.
You will need to change the system's audio configuration to send audio from your
computer to the far site. Refer to
If you have connected a mixer, the VSX 8000 mixes the audio signals from the mixer and
from the ImageShare II unit.
Designing Audio Behaviors on page
www.polycom.com/videodocumentation
4-15.
