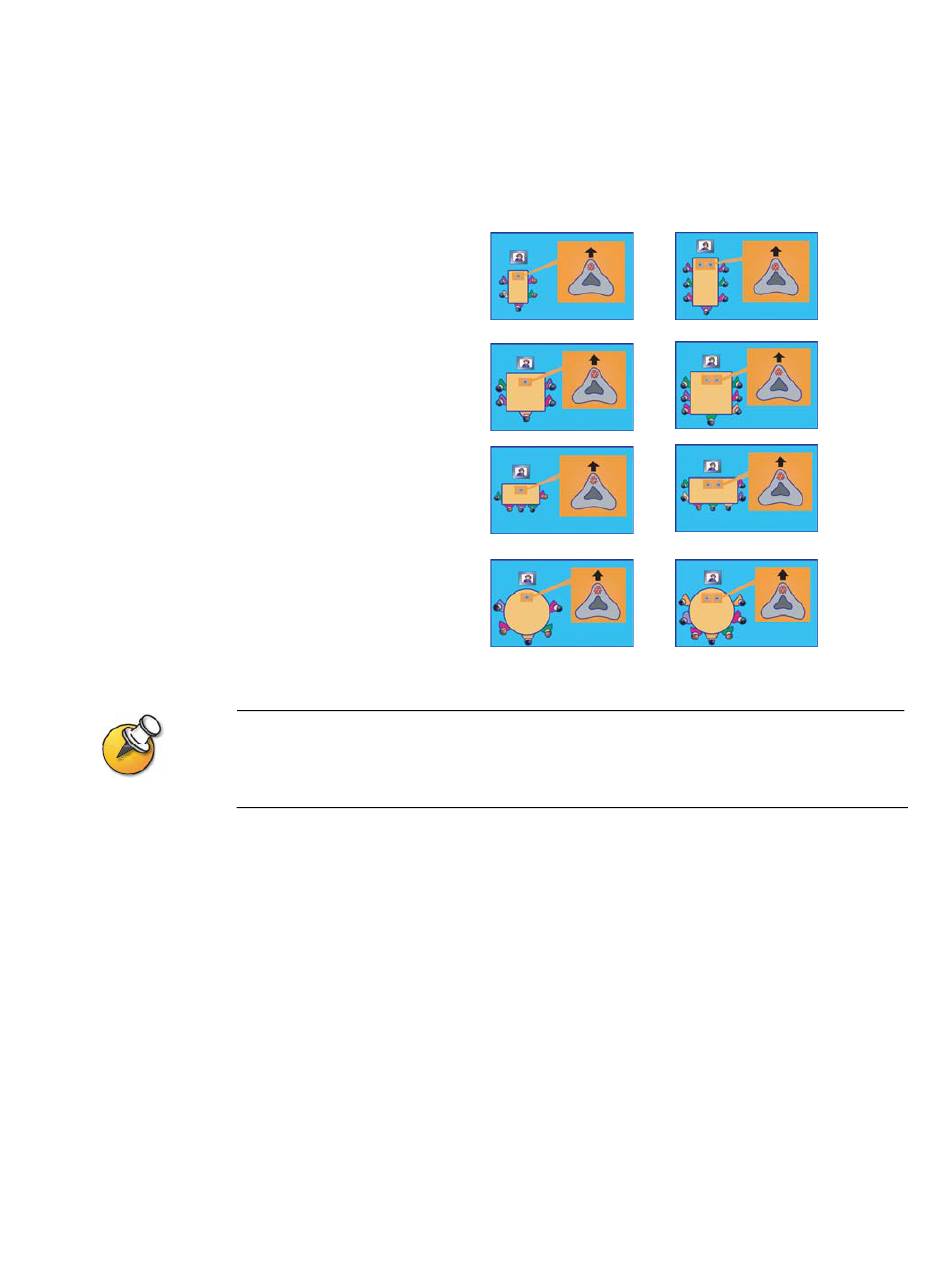

The following illustrations show microphone placement for different room types.
In all room configurations, the logo on each microphone pod should be pointing
toward the monitor. The microphone pod closest to the monitor should be parallel
with, or in front of, the person nearest the monitor.
Long Table
Square Table
Wide Table
Round Table
After you have configured audio settings and tested the microphone pods as described in
Designing Audio Behaviors on page
people will not move them during meetings.
One Microphone Pod
4-15, mount or fasten the microphones in place so that
www.polycom.com/videodocumentation
Two Microphone Pods
