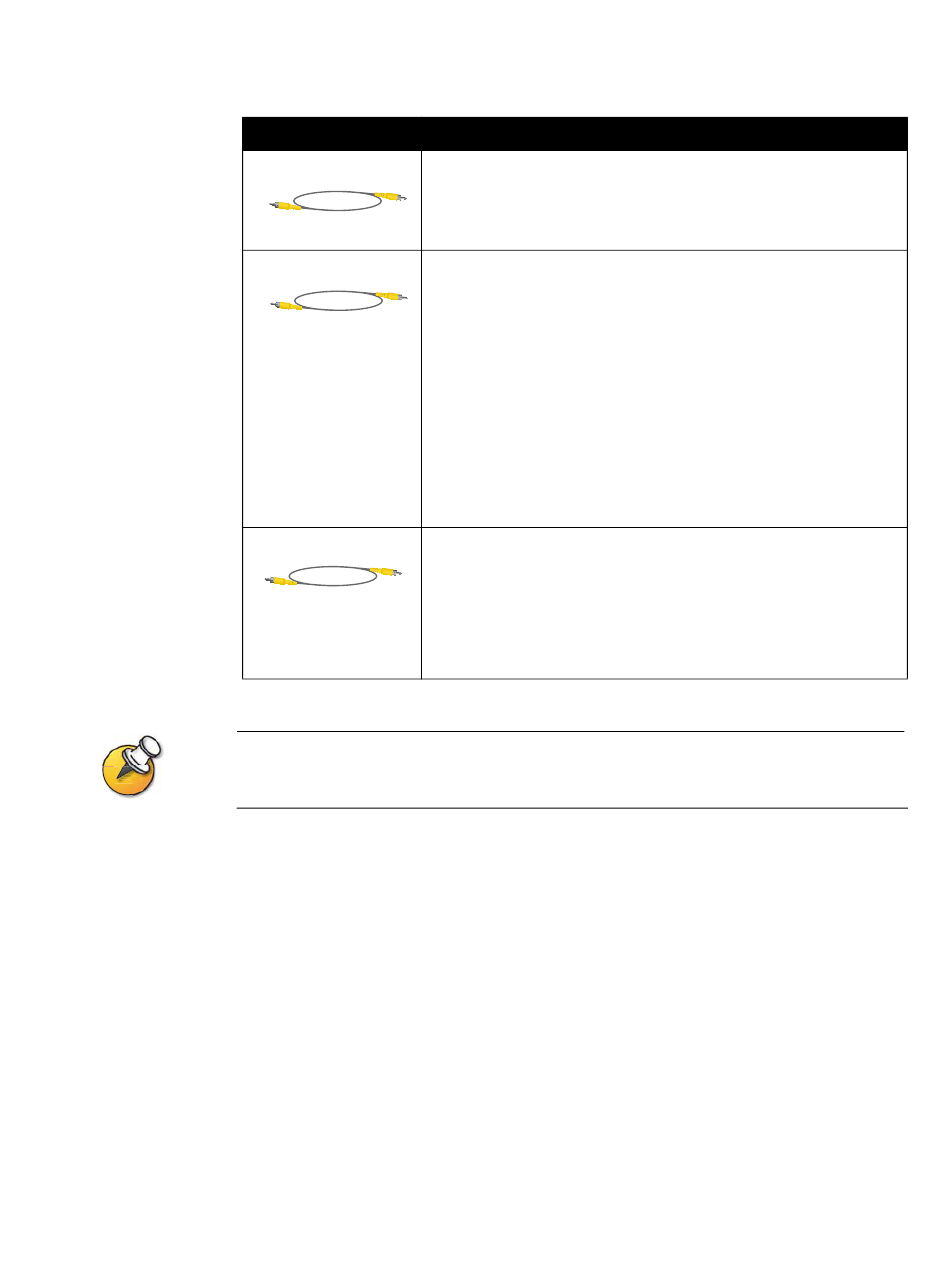

To connect a second camera:
For this system...
VSX 3000
VSX 7000
VSX 8000
After you have finished setting up the system, you will need to configure the camera's
behavior. Refer to Configuring Camera Settings and Video Quality Options on page
Do this
1. Connect a single RCA cable to the composite video connector
on the camera and to the yellow connector on the back of the
system.
2. Connect the camera's power pack or cord to a power outlet.
1. Connect an S-video cable to the camera and to the camera 2
connector on the back panel of the system.
or
Connect a single RCA cable to the composite video connector
on the camera and to the VCR/DVD video input.
2. PTZ cameras: Connect the camera's control cable to the
system's RS-232 port.
3. Connect the camera's power pack or cord to a power outlet.
Note: If you connect cameras or other devices to both the
camera 2 S-video connector and the camera 2 composite
connector, the system only accepts the signal from the S-video
connector.
1. Connect one end of the yellow S-video cable to the camera.
2. Connect the other end of the S-video cable to the camera 2
S-video connector on the system's rear panel.
3. PTZ cameras: Connect the camera's control cable to one of
the system's RS-232 ports.
4. Connect the camera's power pack or cord to a power outlet.
