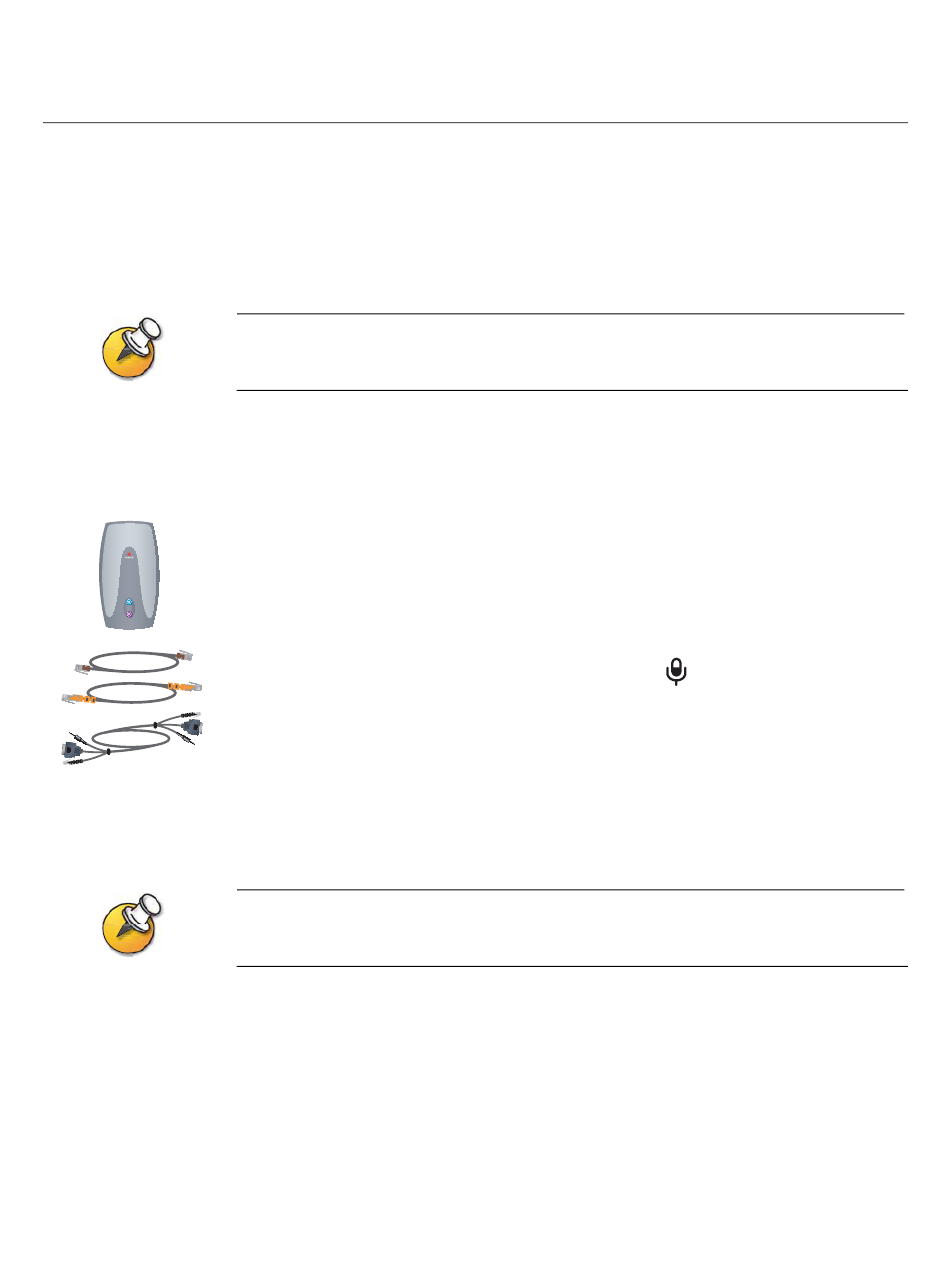

Connecting a Visual Concert VSX
Visual Concert VSX
© Polycom, Inc.
If you have a VSX 6000 or VSX 7000 system, you can share content from your
computer using a Visual Concert VSX data collaboration unit.
If you have a VSX 8000 system, you can share content from your computer using
an ImageShare II data collaboration unit.
After you have finished setting up the system, you will need to configure the system to work
with the data collaboration equipment. Refer to
You may connect a Visual Concert VSX unit to the VSX 6000 or VSX 7000 system
along with two microphone pods.
To connect a Visual Concert VSX data collaboration unit to the system:
1. Connect a conference link cable to the available connector on the microphone
pod and to one of the conference link connectors
unit.
The Visual Concert VSX and microphone pod(s) may be placed in any order.
2. Connect the LAN uplink connector on the Visual Concert VSX to the LAN. The
LAN uplink connector is on the side farthest from the buttons.
This allows the Visual Concert VSX to provide LAN connections for up to three
computers.
Do not connect the Visual Concert VSX unit's LAN uplink connector to the VSX system
system. The two devices require separate LAN connections.
The Visual Concert VSX provides VGA output at a screen resolution of 1024 x 768
pixels, with a refresh rate of 60 Hz.
The screen resolutions and refresh rates of the connected laptop and the Visual
Concert VSX must be set the same. If they are not the same, other people may not
see the entire image.
Chapter 2 - Setting Up Your System Hardware
Configuring Content Display on page
on the Visual Concert VSX
4-9.
2 - 33
