Administrator's Guide for the VSX Series
2 - 14

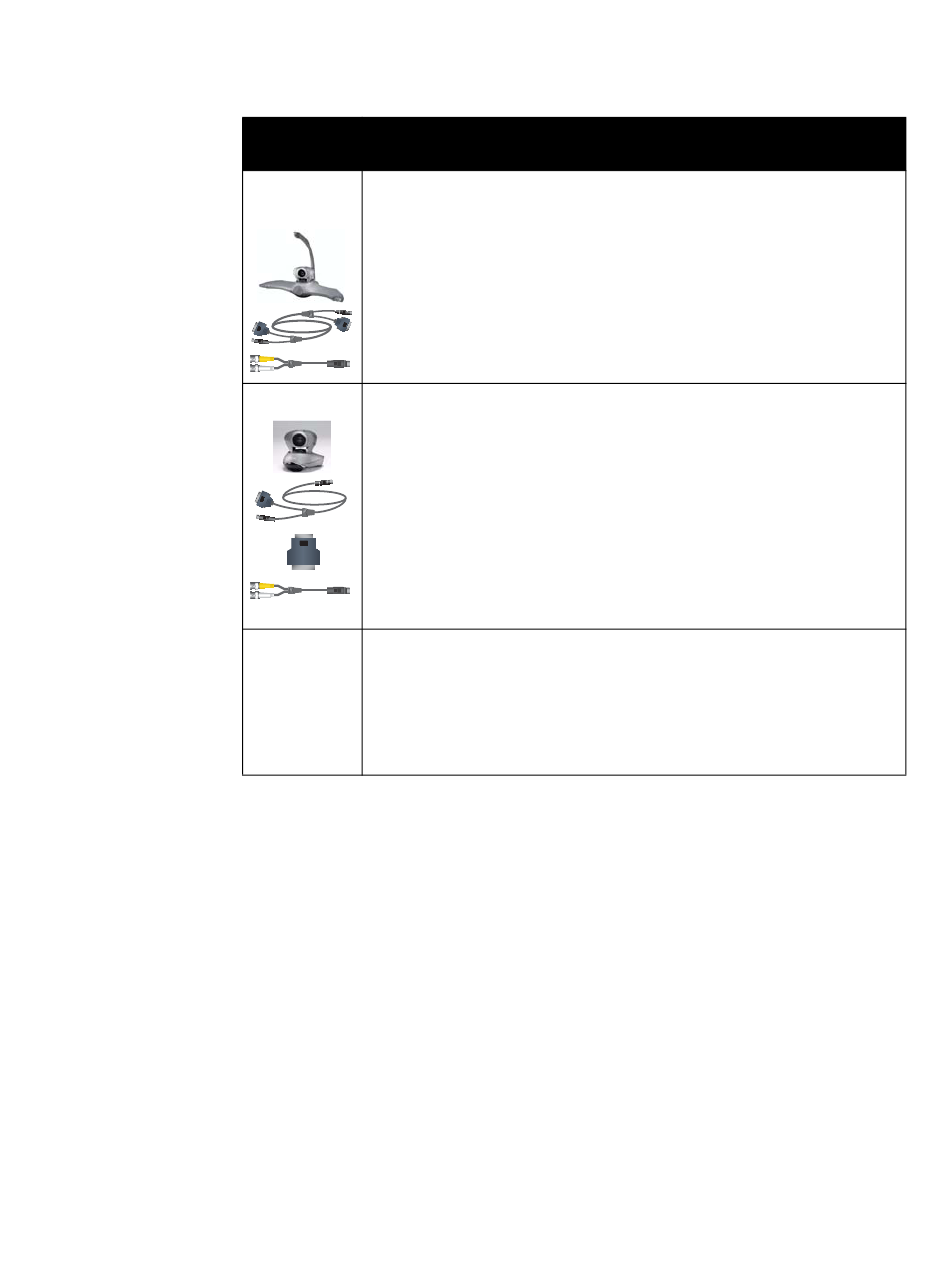

To connect Camera 1 to the VSX 8000 system:
For this
camera... Do this
PowerCam 1. Connect one end of the video and control cable to the S-video
Plus connector and the DB-15 connector on the PowerCam Plus camera.
2. Connect the S-video cable connector on the free end of the cable to
an S-video to BNC adapter.
3. Connect the adapter's yellow BNC connector to the camera 1 C
connector, and the white connector to the camera 1 Y connector on
the system's rear panel.
4. Connect the camera cable's DB-15 connector to the camera control
connector on the rear panel of the system
PowerCam 1. Connect the single end of the video and control cable to the
PowerCam.
2. Connect the S-video cable connector to an S-video to BNC adapter,
and connect the adapter's yellow BNC connector to the camera 1 C
connector, and the white connector to the camera 1 Y connector on
the system's rear panel.
3. Connect the camera cable's DB-9 connector to the DB-15 to DB-9
adapter.
4. Connect the DB-15 to DB-9 adapter to the camera control connector
on the rear panel of the system.
Other 1. Connect the camera's video cable to an S-video to BNC adapter.
camera
2. Connect the adapter's yellow BNC connector to the camera 1 C
connector, and the white connector to the camera 1 Y connector on
the system's rear panel.
3. Connect the camera's PTZ cable to the camera 1 control cable. You
may need to use the DB-15 to DB-9 adapter supplied with the system.
