System Back Panel Views

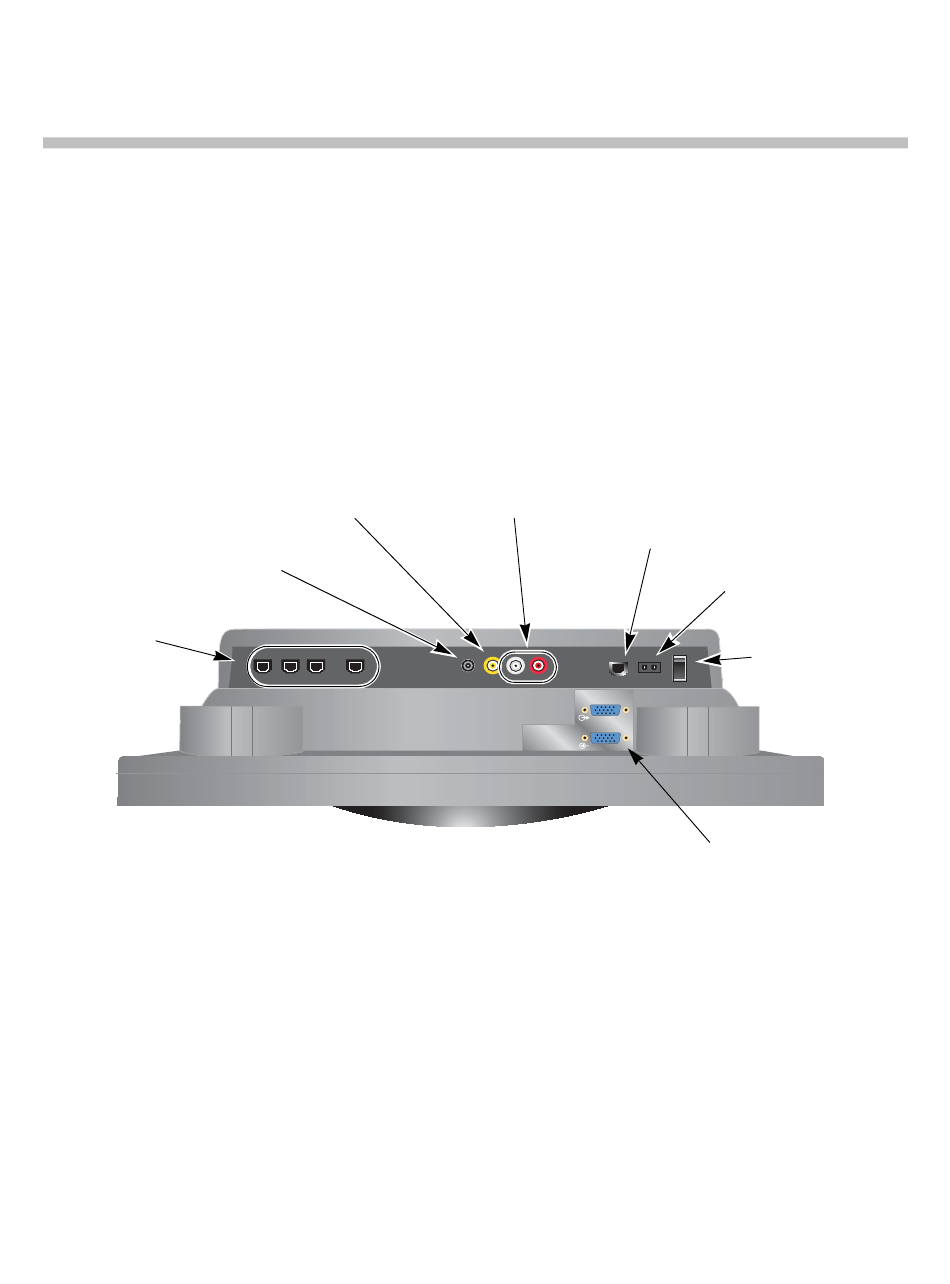

VSX 3000A Connector Panel
Composite video input to system
For video from camera or VCR/DVD
Audio output from system
For desktop speakers
BRI ports
For ISDN calls
(Not present on
IP-only
systems)
The connectors face downward on the VSX 3000A systems. This is a view from
underneath the system.
Audio input to system
For audio from VCR/DVD
LAN port
For IP,
People+Content IP,
and VSX Web
Power connector
For power supply
Power switch
(one of three)
VGA input to system
For computer to use system as
a computer monitor
A
A - 1
