R L
EMOVING THE IBRARY FROM THE
Warning
Warnung
Advertencia
If the library is installed in a rack, remove it as described below.
! ! ! !
1. 1. 1. 1.

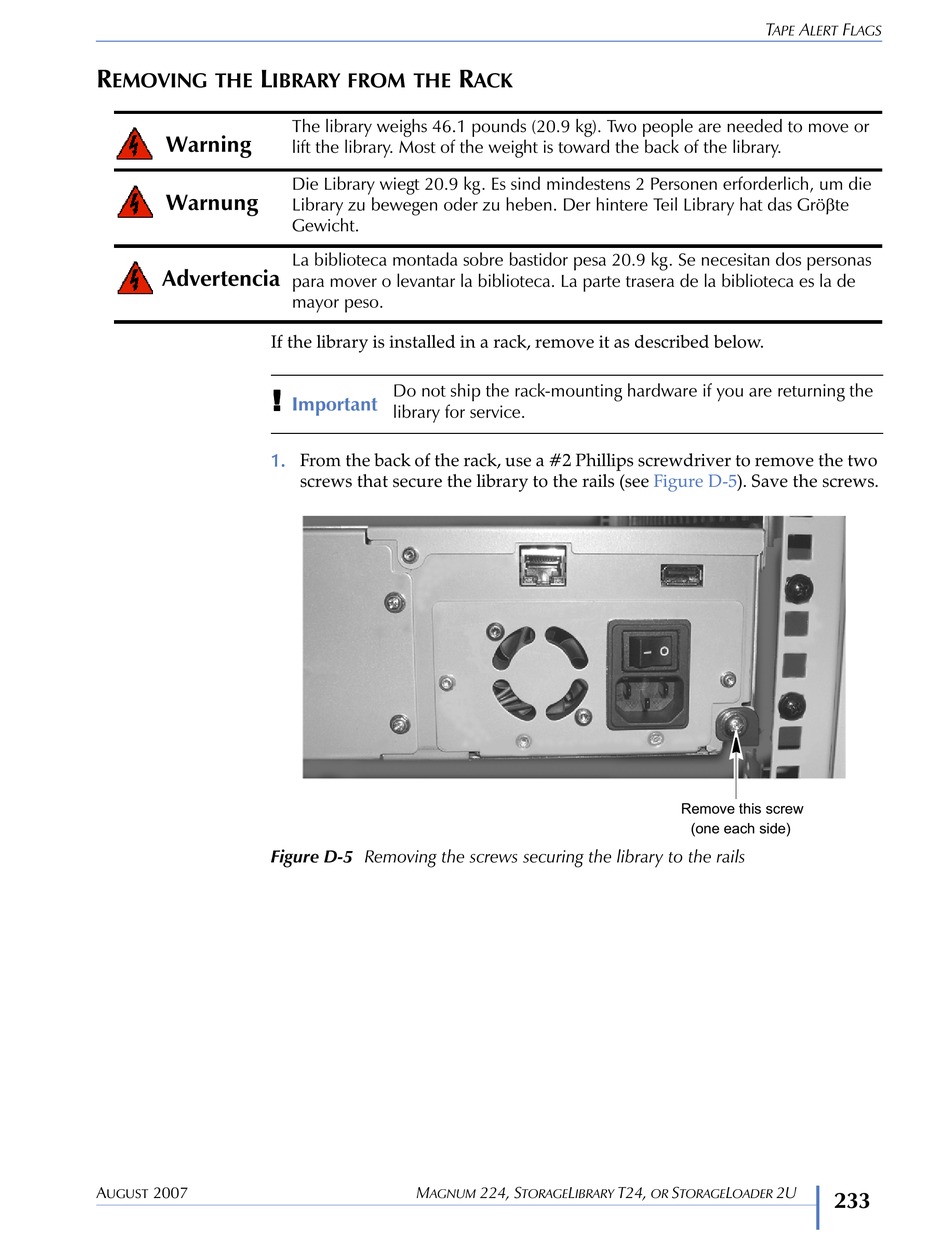

Figure D-5 Removing the screws securing the library to the rails

A 2007
UGUST
R
The library weighs 46.1 pounds (20.9 kg). Two people are needed to move or
lift the library. Most of the weight is toward the back of the library.
Die Library wiegt 20.9 kg. Es sind mindestens 2 Personen erforderlich, um die
Library zu bewegen oder zu heben. Der hintere Teil Library hat das GröEte
Gewicht.
La biblioteca montada sobre bastidor pesa 20.9 kg. Se necesitan dos personas
para mover o levantar la biblioteca. La parte trasera de la biblioteca es la de
mayor peso.
Do not ship the rack-mounting hardware if you are returning the
Important
library for service.
From the back of the rack, use a #2 Phillips screwdriver to remove the two
screws that secure the library to the rails (see
M
AGNUM
ACK
Figure
224, S L T24,
TORAGE IBRARY OR
T A F
APE LERT LAGS
D-5). Save the screws.
Remove this screw
(one each side)
