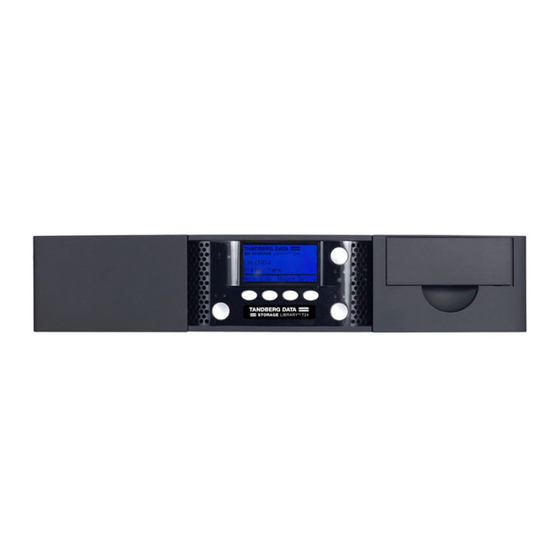

Tandberg Data StorageLoader 2U LTO Quick Start Manual

StorageLoader 2U LTO
Quick Start Guide
Accessories
Power LVD SCSI 68-pin HD
cord
to HD cable and LVD
terminator*
* LVD SCSI configuration only.
SCSI terminator. The StorageLoader 2U LTO ships from the factory with these accessories.
** To prepare your own labels, refer to the Tandberg Data Bar Code Label Specification for LTO Cartridges available at: www.tandbergdata.com.
Additional Items
Host computer with
adapter card installed
Hybrid cable
Tools
Fibre Channel cable
Power cord (for use
outside Europe)
Backup software
Data and Cleaning
cartridges (available
from Tandberg Data or
your supplier)
WARNING! The library weighs 44 lbs (20 kg). Two people are needed to move or lift the library. Most of the weight is toward the back of the library.
WARNUNG! Die Library wiegt 20 kg. Es sind mindestens 2 Personen erforderlich, um die Library zu bewegen oder zu heben. Der hintere Teil der
Library hat das Größte Gewicht.
¡PRECAUCIÓN! La biblioteca montada sobre bastidor pesa 20 kg. Se necesitan dos personas para mover o levantar la biblioteca. La parte trasera
de la biblioteca es la de mayor peso.
— These accessories are included with your library
Ethernet
cable
Important:
Both LTO-2 and LTO-3 tape drives require Ultra 160 rated SCSI cabling, and an Ultra 3 or LVD 160 Active
— You must have -or- obtain some or all the following items to complete the installation
You need a host computer with a host bus adapter card installed. Refer to the
documentation that came with the computer and LVD SCSI or Fibre Channel (FC) adapter
card. The StorageLoader 2U LTO is configured for LVD SCSI or Fibre Channel.
Important: Both LTO-2 and LTO-3 tape drives are Ultra 160 SCSI devices and require a
minimum Ultra 160 non-RAID SCSI host bus adapter card (LVD SCSI configuration only).
If your SCSI controller has a 68-pin
VHDCI connector, you will need to
obtain a VHDCI-to-HD SCSI cable.
You will need a #1 Phillips screwdriver.
If you have a Fibre Channel adapter card installed, you need to obtain a FC cable.
If you plan to use the library outside Europe, you must supply your own power
cord (see the Product Manual at www.tandbergdata.com for information about an
International 220 VAC power cord).
You need a backup software application to manage your backup operations. Refer to
the documentation that came with the backup software and make sure it supports the
library. See www.tandbergdata.com for compatibility information.
Tape Ultrium 3 (slate blue)
Drive Read
LTO-3 Yes
LTO-2 No
Shipping Rack-mount kit
lock (fasteners and
instructions included)
Ultrium 2 (purple) Ultrium 1
Write Read Write
Yes Yes Yes
No Yes Yes
Page 1 of 8
Bar code labels**
Multi-language packet
and Warranty
HD Connector
VHDCI Connector
(black) LTO Ultrium
Read Write Cleaning Cartridge
Yes No Yes
Yes Yes Yes
