Figure 7-1 Serial Cable Routing-Full Height Tape Drive; Figure 7-2 Serial Cable Routing-Half Height Tape Drives; Figure 7-3 Power Cable Routing-Full Height Tape Drive; Figure 7-4 Power Cable Routing-Half Height Tape Drives - Tandberg Data Magnum 224 Product Manual

C 7—M
HAPTER AINTENANCE

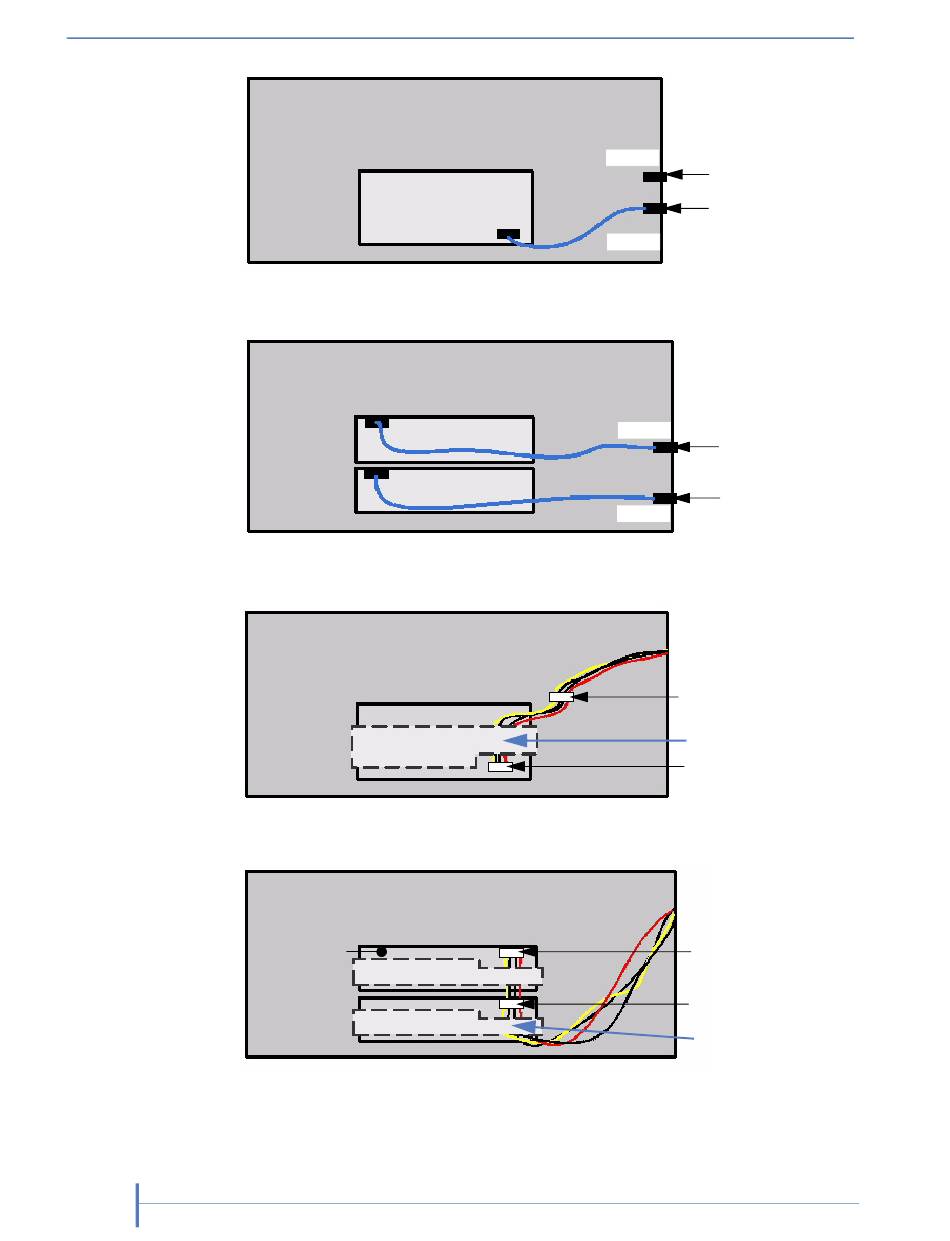

Figure 7-1 Serial cable routing—full height tape drive
Figure 7-2 Serial cable routing—half height tape drives
Figure 7-3 Power cable routing—full height tape drive
Figure 7-4 Power cable routing—half height tape drives
P M
RODUCT ANUAL
162
Library
Full Height
Tape Drive
Library
HH Tape Drive
HH Tape Drive
Library
FH tape drive
TD carrier
Library
Half height
tape Drive
TD carrier
Serial cable
Drive 2
Top serial
connector (not used)
Bottom serial
connector
Drive 1
Serial cable
Drive 2
Second serial
connector
Bottom serial
Drive 1
connector
Power cable
Middle power connector
(not used in this config)
Route through carrier
Bottom power connector
Power cable
Top power
connector (upper TD)
Middle power
connector (lower TD)
Route under and
through carriers
(S)
(S)
(P)
(P)
1017472
