Power
+5VDC
DATA-
DATA+
GND
Key
©2007 RDX is a registered trademark of ProStor Systems, Inc.
Part No. 433822-01
USB
PIN SIGNAL PIN SIGNAL
1
2
1
VCC
2
VCC
3
USB0-
4
USB1-
5
USB0+
6
USB1+
7
GND
8
GND
9
Key
10 USBOC
9
10
Product Registration
Register this product at
www.tandbergdata.com/register

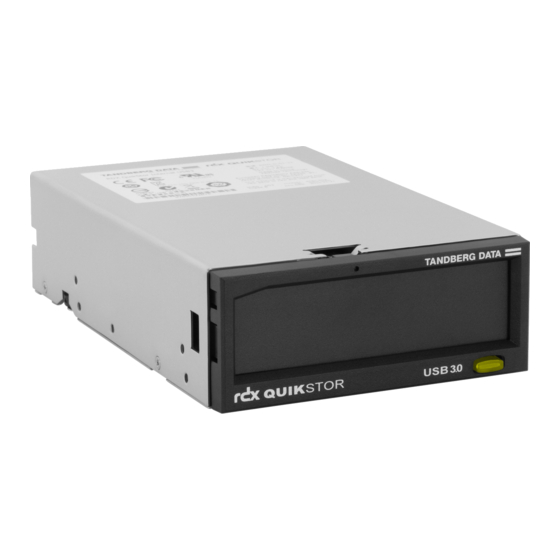

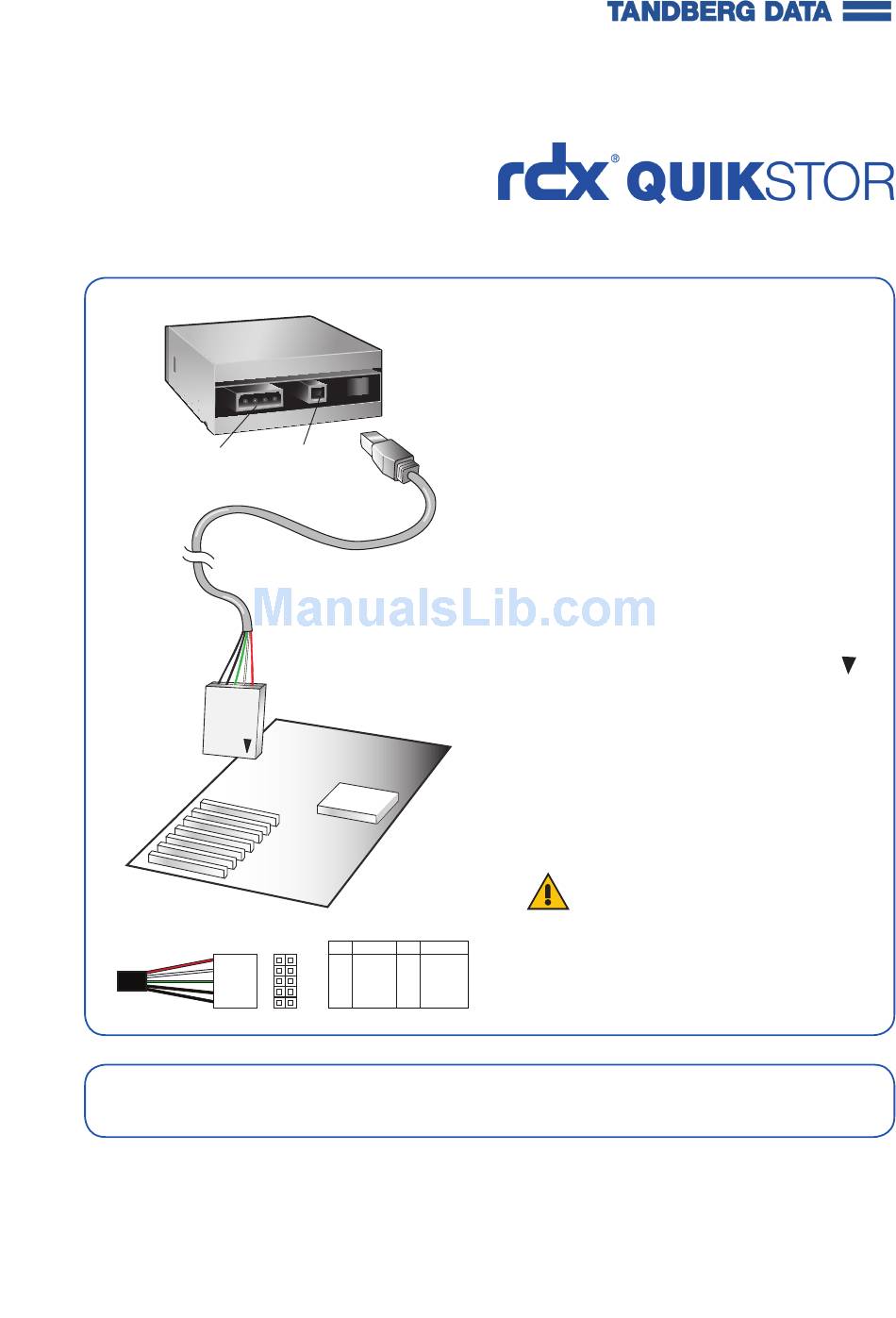

Internal USB version

Installation Guide

1 Turn off the computer
2 Mount the RDX QUIKSTOR in the
PC. The Eject/Power LED should
be on the lower right. Secure the
unit by using the four mounting
screws provided.
3 Connect the USB and power cables
to the RDX QuikStor
4 Connect the USB cable to the host
PC mother board or USB HBA.
Pin 1 location is marked on the
cable connector with a triangle (
Consult your motherboard/
HBA manual for the Pin 1 location
on the mating USB connector
5 Turn on the computer
Warning:
• Connecting the USB Cable incorrectly
to the PC will result in damage.
• Verify PIN layout on the motherboard
versus cable connector PIN OUT.
www.tandbergdata.com
).
