2.5.3

Outputs 7 and 8

Outputs 7 and 8 are programmable and provide a combined output of 1 A. Each
individual output is capable of providing:
•
•
Note:
You can power Aperio hubs from outputs 7 and 8. See Powering the Aperio hubs
on page 36 for information on connecting power to Aperio hubs.
By default, Outputs 7 and 8 are set to De-energized in the Configurator. If
you are using Outputs 7 and 8 to power hubs, do not change this setting.
TX3 Aperio Door Controller System Installation and Operation Manual
v. 1.6
LT-1160 Copyright 2019
Door Strike 1
Maglock 1
External
power
supply
NC C NO NC C NO NC C NO NC C NO NC C NO NC C NO
OUTPUT 1 OUTPUT 2

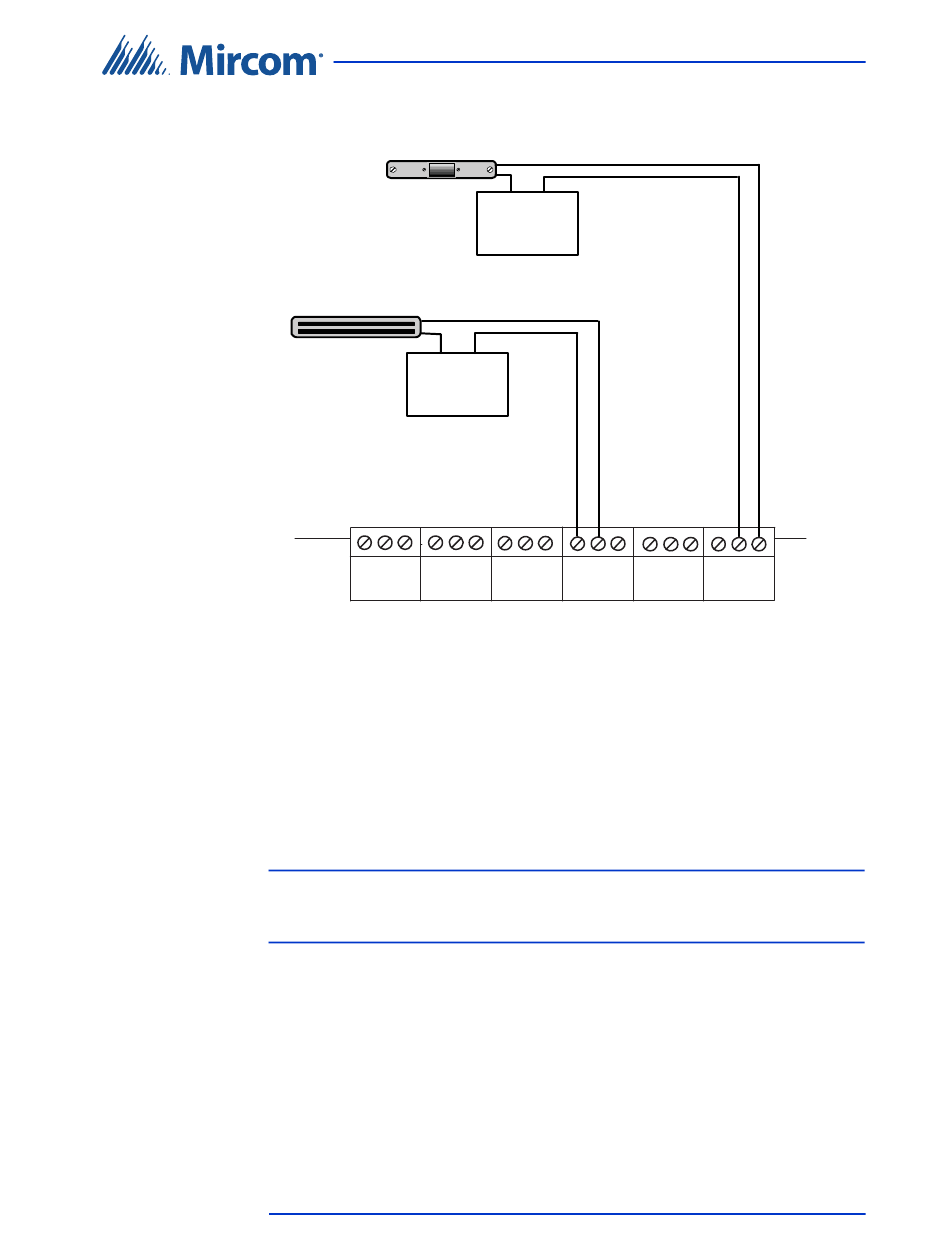

Figure 16. Controller Output Terminal Sample Connections
12 VDC
500 mA of current (700 mA maximum)
Outputs 7 and 8 are capable of providing a maximum output of
700 mA each, for a combined output of 1 A. For example, if
output 7 provides 700 mA, then output 8 provides 300 mA.
External
power
supply
Common
Normally Common
Closed
OUTPUT 3 OUTPUT 4 OUTPUT 5
Installation and Setup
Normally
Open
OUTPUT 6
29
