TX3 Series

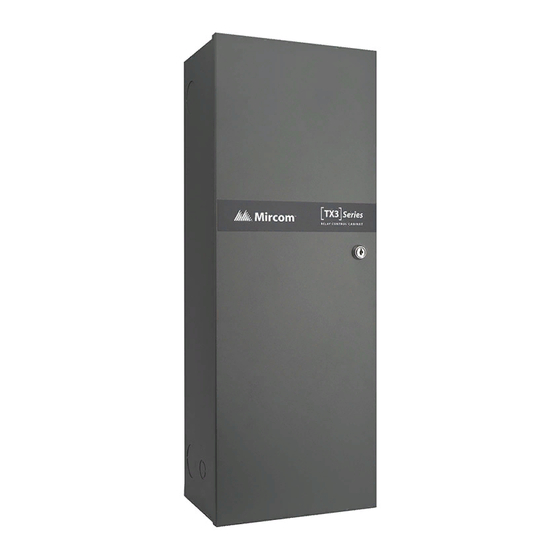

ELEVATOR RESTRICTION SYSTEM
Installation Manual
Elevator Restriction System Installation and Operation Manual
Version 1.2
LT-9940
Copyright February 2018
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX3 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mircom TX3 Series

Summary of Contents for Mircom TX3 Series

  • Page 1 TX3 Series ELEVATOR RESTRICTION SYSTEM Installation Manual Elevator Restriction System Installation and Operation Manual Version 1.2 LT-9940 Copyright February 2018...
  • Page 2 Copyright February 2018 Mircom Inc. All rights reserved. Elevator Restriction System Manual rev. 1.2 Microsoft, MS-DOS, Windows, and Windows 2000/NT/XP/Vista/7/8/10 are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mircom 25 Interchange Way...

  • Page 3: Table Of Contents

    Contents Introduction Firmware Versions Terms Card Access System and New Elevator Restriction Firmware Card Access System and Old Elevator Restriction Firmware Telephone Access System and New Elevator Restriction Firmware Telephone Access System and Old Elevator Restriction Firmware Elevator Restriction Unit Overview Warranty and Special Notices About This Manual 1.10...
  • Page 4 List of Figures Figure 1. Elevator Restriction in a Card Access System Figure 2. Elevator Restriction in a Card Access System Figure 3. Elevator Restriction in a Card Access System Figure 4. Elevator Restriction Units (ERU) and a Telephone Access Controller Figure 5.

  • Page 5: Introduction

    Configurator Software to add features and correct any minor inconsistencies. For information about the latest firmware or software visit the Mircom website at www.mircom.com. For warranty and special notices information, see the Warranty and Special Notices chapter on page 40.

  • Page 6: Terms

    Introduction 1.1.1 Old and New Elevator Restriction Firmware This manual is divided into sections for firmware versions 2.4.x and 3.4.x and higher (called new elevator restriction firmware) and versions 2.0.x, 3.0.x, and 3.1.x (called old elevator restriction firmware). 1.1.2 Firmware Compatibility If your job has Elevator Restriction Units, then upgrade your firmware to match Table 1.
  • Page 7 Introduction 1.2.3 Access Level You assign an access level to a card to keep track of access privileges. A card can have only one access level. 1.2.4 Elevator Restriction Unit (ERU) An Elevator Restriction Unit (ERU) controls an elevator cab. It is usually installed in the building’s electrical or telephone room.

  • Page 8: Card Access System And New Elevator Restriction Firmware

    Introduction Card Access System and New Elevator Restriction Firmware Figure 1 is a conceptual diagram of an example system that has three elevator cabs. There is an elevator restriction unit (ERU) restricting each cab, for a total of three elevator restriction units. One card reader controls all three ERUs. ERU 1 ERU 2 ERU 3...

  • Page 9: Card Access System And Old Elevator Restriction Firmware

    Introduction If the access point is installed outside the elevator cab, then the resident must call the elevator first, then swipe a card at the access point. The timer must be long enough for the elevator to descend from the top floor to the lobby, and for the resident to enter the elevator cab and press a button.

  • Page 10: Figure 3. Elevator Restriction In A Card Access System

    Introduction 1.4.2 Firmware Versions Lower than 3.1.x (for Version 3 Panels) and Lower than 2.4.x (for Version 2 Panels) Figure 3 is a conceptual diagram of an example system that has three elevator cabs. There is an elevator restriction unit (ERU) restricting each cab, for a total of three elevator restriction units.

  • Page 11: Telephone Access System And New Elevator Restriction Firmware

    Introduction Telephone Access System and New Elevator Restriction Firmware Figure 4 is a conceptual diagram of an example system with three elevator cabs and a Telephone Access Controller. There is an elevator restriction unit (ERU) restricting each cab, for a total of three elevator restriction units. Telephone Access Controller controls...

  • Page 12: Telephone Access System And Old Elevator Restriction Firmware

    Introduction For example, Resident 1 is configured for ERU 1, 2 and 3, and for Floor Group 1 (floors 1 and 2). When Resident 1 is granted access, she must call one of the cabs controlled by ERUs 1, 2 or 3. Then she must enter the cab and press the button for floor 1 or 2 within the configured amount of time.

  • Page 13: Elevator Restriction Unit Overview

    Introduction For example, Resident 1 is configured for ERU 1 and floor 5. When Resident 1 is granted access, she must call Cab A; the other cabs do not work. Then she must enter the cab and press the button for floor 5 within the configured amount of time.

  • Page 14: Warranty And Special Notices

    Figure 7. Elevator Restriction Unit Warranty and Special Notices Mircom values your business and always attempts to provide you with the very best service. Please see the Warranty and Special Notices chapter on page 40 for information about the warranty and special notices about equipment use.

  • Page 15: About This Manual

    • TX3-ER-8 • TX3-ER-8-A 1.9.1 Additional Documentation For additional documentation, see the following Mircom literature: • LT-995 Touch Screen Configuration and Administration Manual • LT-6616 Elevator Restriction Migration for Firmware Version 3 • LT-6615 Elevator Restriction Migration for Firmware Version 2 •...

  • Page 16: Installing The Elevator Restriction Unit

    Installing the Elevator Restriction Unit Mircom’s Elevator Restriction Units are used with the TX3 card access system to restrict access to elevator floors based on access level. This chapter describes how to • Mount the Elevator Restriction Unit • Wiring •...

  • Page 17: Figure 8. Box For The Tx3-Er-8 Elevator Restriction Unit

    Installing the Elevator Restriction Unit The back cover is 10 1/8 inches wide by 27 inches long. The top two mounting holes are 6 3/16 inches apart. Figure 8. Box for the TX3-ER-8 Elevator Restriction Unit To mount the Elevator Restriction Unit Using the back cover as a template mark the top two mounting hole locations 6 5/32”...

  • Page 18: Wiring

    Installing the Elevator Restriction Unit Place the screws halfway into the wall in the position shown using a suitable screw. Hang the box onto the two screws. Screw the other two screws at the bottom of the panel. Tighten all four screws into place. Wiring Note: Only a qualified elevator service technician should wire the...

  • Page 19: Figure 9. 2012E Elevator Restriction Relay Board

    Installing the Elevator Restriction Unit C om JW 1 RE LAY 1 N O/N C C om JW 2 RE LAY 2 N O/N C C om JW 3 RE LAY 3 N O/N C C om JW 4 RE LAY 4 N O/N C C om J W 5...

  • Page 20: Figure 10. Relay Numbering

    Installing the Elevator Restriction Unit ..Position 8 ..Position 7 ..Position 6 .

  • Page 21: Set The Elevator Restriction Unit Id

    Installing the Elevator Restriction Unit Position 8 Position 7 Position 6 Position 5 Position 4 Position 3 Position 2 Position 1 TX3-ER-8 Elevator Restriction Unit Figure 11. Elevator Restriction Controller Backplane 2.2.4 Wire the 2012E Relay Boards Note: Only a qualified elevator service technician should wire the Elevator Restriction Unit to the elevator controller.

  • Page 22: Figure 12. Elevator Controller Board

    Installing the Elevator Restriction Unit SW2 is shown in Figure 12. Res. JW4 JW2 TX3-ER-8 Elevator Restriction Unit JW1 JW5 16V AC ON OFF RS-485 Terminals Figure 12. Elevator Controller Board Elevator Restriction System Installation and Operation Manual Version 1.2 LT-9940 Copyright 2018...
  • Page 23 Installing the Elevator Restriction Unit The individual switches are numbered 1 to 8 from left to right, and are marked as either ON or OFF. The first six switches (1, 2, 3, 4, 5 and 6) set the ID. Note: Every Elevator Restriction Unit in a given TX3 System requires a unique ID.
  • Page 24 Installing the Elevator Restriction Unit Table 2: Lobby Control Unit SW2 DIP Switch Settings Lobby Control Unit ID # Switch 1 Switch 2 Switch 3 Switch 4 Switch 5 Switch 6 Note: DIP switch 7 is not used and must be left at the default factory setting.

  • Page 25: Wire The Rs-485 Connection

    Installing the Elevator Restriction Unit Wire the RS-485 Connection Maximum length: 4000 ft (1219.2 m) Shielded or unshielded Cat 5 cable Attention: Do not T-tap. Panel 1 Panel 3 Panel 2 First panel on network Last panel on network 120 Ω 120 Ω...

  • Page 26: Connect The Power And Ground

    Installing the Elevator Restriction Unit The TX3-IP Module ribbon cable connects to the P3 connector on the controller board. It has an RJ-45 connector that connects to the Ethernet network using a standard Ethernet cable. See Figure 14. IP Module Ribbon Cable RJ-45 Connector Figure 14.

  • Page 27: Update The Firmware

    LT-995 can be found on the TX3 Configurator Software installation CD, USB flash drive, or on the Mircom website. Configure the System See LT-995 TX3 Touch Screen Administrators Guide for instructions on configuring an elevator restriction system.

  • Page 28: Circuit Board Components

    Circuit Board Components This chapter describes the components of the circuit boards in the Elevator Restriction Unit. This chapter explains • Elevator Restriction Controller Backplane • 2012E Relay Boards • Elevator Controller Board • Specifications Elevator Restriction System Installation and Operation Manual Version 1.2 LT-9940 Copyright 2018...

  • Page 29: Elevator Restriction Controller Backplane

    Circuit Board Components Elevator Restriction Controller Backplane Position 8 Position 7 Position 6 Position 5 Position 4 Position 3 Position 2 Position 1 TX3-ER-8 Elevator Restriction Unit Figure 17. Elevator Restriction Controller Backplane 3.1.1 Connectors on the Elevator Restriction Unit Backplane P1.

  • Page 30: 2012E Relay Boards

    Circuit Board Components 2012E Relay Boards Note: Only a qualified elevator service technician should wire the Elevator Restriction Unit to the elevator controller. Each relay board has 12 Form A or B relay contacts rated at 28 VDC / 0.5 A. Each jumper is selectable as normally open or normally closed.

  • Page 31: Elevator Controller Board

    Circuit Board Components Elevator Controller Board Res. JW4 JW2 TX3-ER-8 Elevator Restriction Unit JW1 JW5 16V AC ON OFF RS-485 Terminals Figure 19. Elevator Controller Board 3.3.1 Connectors USB. Computer connection for firmware download. P1. Not normally used. Used for debugging purposes only. P2.
  • Page 32 Circuit Board Components P3. Connector for the TX3-IP Module (for the TX3-ER-8-A model only). P4. Not used. P5. Expansion to the elevator restriction backplane. P6. Not used. 3.3.2 DIP Switches SW1. Turns the unit’s power ON and OFF for servicing, or to re-start the unit. SW2.

  • Page 33: Specifications

    AC Power Supply 105 VAC to 128 VAC 3.4.3 Power Transformer Mircom Model PS-4P. 16 VAC/ 40 VA, CSA approved Class 2 Power Transformer, plug-in. 3.4.4 Relays Up to eight 2012E Relay Boards can be mounted on the Elevator Restriction Controller Backplane, for a maximum of 96 relays.

  • Page 34: Relay List

    Relay List Use these tables to keep a list of relays. Print out one copy of this chapter for every ERU. Table 3: ERU #____, Position 1 Number on the Relay Number 2012E Relay in the Floor Number Other Information Board Configurator Table 4: ERU #____, Position 2...
  • Page 35 Relay List Table 4: ERU #____, Position 2 (Continued) Number on the Relay Number 2012E Relay in the Floor Number Other Information Board Configurator Table 5: ERU #____, Position 3 Number on the Relay Number 2012E Relay in the Floor Number Other Information Board Configurator...
  • Page 36 Relay List Table 6: ERU #____, Position 4 (Continued) Number on the Relay Number 2012E Relay in the Floor Number Other Information Board Configurator Table 7: ERU #____, Position 5 Number on the Relay Number 2012E Relay in the Floor Number Other Information Board Configurator...
  • Page 37 Relay List Table 8: ERU #____, Position 6 (Continued) Number on the Relay Number 2012E Relay in the Floor Number Other Information Board Configurator Table 9: ERU #____, Position 7 Number on the Relay Number 2012E Relay in the Floor Number Other Information Board Configurator...
  • Page 38 Relay List Table 10: ERU #____, Position 8 (Continued) Number on the Relay Number 2012E Relay in the Floor Number Other Information Board Configurator Elevator Restriction System Installation and Operation Manual Version 1.2 LT-9940 Copyright 2018...

  • Page 39: Warranty And Warning Information

    Mircom System and shall be read in conjunction with: the product manual for the specific Mircom System that applies in given circumstances; legal documents that apply to the purchase and sale of a Mircom System, which may include the company’s standard terms and conditions and warranty statements;...
  • Page 40 Best practices and local authority having jurisdiction determine the frequency and type of testing that is required at a minimum. Mircom System may not function properly, and the occurrence of other system failures identified below may not be minimized, if the periodic testing and maintenance of Mircom Systems is not completed with diligence and as required.
  • Page 41 Moreover, some Mircom Systems do not have a battery monitor that would alert the user in the event that the battery is nearing its end of life. Regular testing and replacements are vital for ensuring that the batteries function as expected, whether or not a device has a low-battery monitor.
  • Page 42 Component Failure. Although every effort has been made to make this Mircom System as reliable as possible, the system may fail to function as intended due to the failure of a component. Integrated Products. Mircom System might not function as intended if it is connected to a non-Mircom product or to a Mircom product that is deemed non-compatible with a particular Mircom System.
  • Page 43 Warranty and Warning Information Warranty Purchase of all Mircom products is governed by: https://www.mircom.com/product-warranty https://www.mircom.com/purchase-terms-and-conditions https://www.mircom.com/software-license-terms-and-conditions Elevator Restriction System Installation and Operation Manual Version 1.2 LT-9940 Copyright 2018...

  • Page 44: Special Notices

    Warranty and Warning Information Special Notices Product Model Number: TX3 AC REN (U.S.): 0.0B AC REN (CANADA): 0.0 Complies With Federal Communications Commission (FCC): • CFR 47, Part 15, Subpart B, Class B • Unintentional Radiators Industry Canada (IC): • ICES-003, ISSUE 4, CLASS B •...
  • Page 45 Warranty and Warning Information equipment. Users should ensure for their own protection that the earth ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This is necessary both for proper operation and for protection.
  • Page 46 Contact your telephone company if you have any questions about your telephone line. In the event repairs are ever needed on the Communicator, they should be performed by Mircom or an authorized representative of Mircom. For information contact Mircom at the address and telephone numbers in paragraph 1.10.
  • Page 47 Equipment Failure If trouble is experienced with the TX3 Telephone/Card Access System, for repair or warranty information, please contact Mircom using the numbers paragraph 1.10. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
