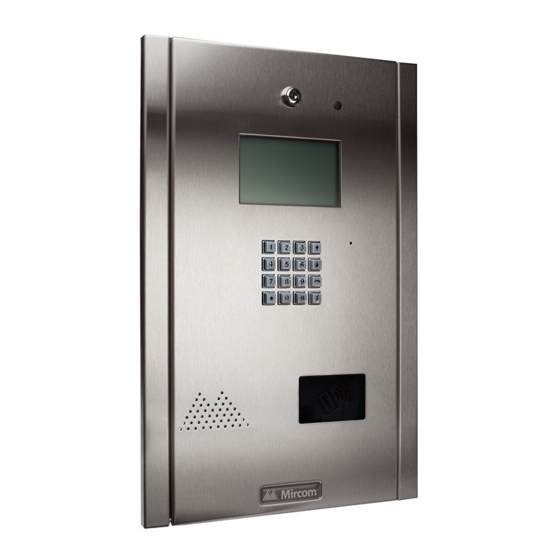

Mircom TX3 Series Quick Reference

Inputs 1 to 5
Input 1 Postal Lock. Input 1 connects to the Postal Lock. Activation of this
input unlocks the main door and starts the main door timer. Daily usage is
limited according to a pre-defined number.
Input 2 Fire Panel. Input 2 connects to the fire alarm panel and receives fire
notification. Activation of this input unlocks the main and auxiliary doors.
Input 3 Main Door Sense. Input 3 connects to the door sense switch.
Activation of the Main Door Sense locks the main door and resets the main
door open timer.
Inputs 4 and 5 General Purpose. Inputs 4 and 5 are general purpose inputs
that, when configured, activate a general purpose output to perform any
required function.
Telephone Lines 1 to 5
TX3 supports full ADC and NSL telephone connectivity from a single
Telephone Access System panel or from a networked system. A single panel
supports up to five ADC and/or NSL telephone lines. Each T/R line is polarity
insensitive and can be reversed.
Note: Non-configurable PBX systems are not supported. For more
information, contact technical support at Mircom.
Jumpers
JW1. Leave open. Short only when updating firmware.
JW2. Leave open. Short only when updating firmware.
JW3. Leave open. Not used.
JW4. Leave open. Not used.
JW5. Leave open. Not used.
JW6. Leave open. Not used.
JW7. Leave open. Not used.
JW8. JW8 defines the operating state of the door strike relay as normally
open or normally closed. A jumper wire connects to either the normally open
(top position for a door strike) or normally closed pin (bottom position for a
maglock).
Connections
USB. Computer connection for firmware download and configuration.
P4. TX3-MDM Modem Board connector.
P5. MD-921 IP Module connector. Only for model numbers ending with
"-A" (for example, TX3-2000-8CH-A).
P6. Key pad and front door LCD display.
P7. Guard Phone Board connector.
Version 2.1
LT-6025
AC Output 1 AC Output 1
Door Strike Door Strike
AC or DC AC or DC
Input Door Input Door
Strike Strike
Supply Supply
Alternative Wiring for
Dry Contact
AC Output 1
T R T R
Door Strike 1 1 5
JW8 JW8
NO
T R T R T R
NC
2 2 3 4
JW8
Telephone Lines 1 to 5 Telephone Lines 1 to 5
AC or DC Input
Door Strike Supply
P7 P7
P5 P5
JW3 JW3
JW4 JW4
Thermal Kit Thermal Kit
P4 P4
Modem Interface Modem Interface
USB Port USB Port
JW5 JW5
Microphone Microphone OUTPUT
2 2 3 4
Connection Connection - S +
INPUT
Speaker Speaker
1 1 5
S +
-
Connection Connection
Inputs 1 to 5 Inputs 1 to 5 RS-485 RS-485
Camera Camera
Supply Supply

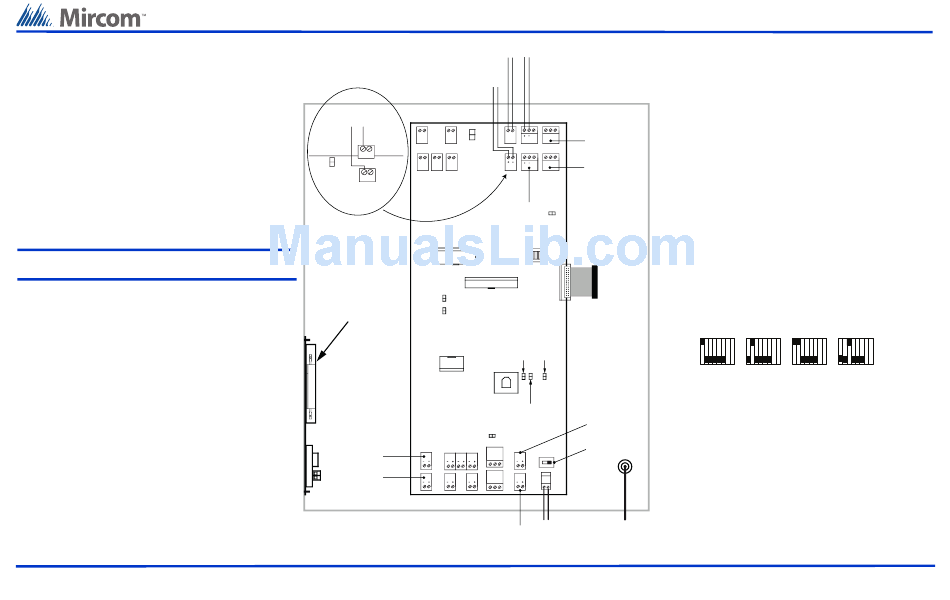

Telephone Access System Installation Quick Reference
AC or DC Input Door Strike
DC Output 1 DC Output 1
Door Strike Door Strike
The power for the door strike is customer supplied and provides AC or DC
power for one of the door strike outputs. The controller converts an AC
supply to a DC output. The reverse is not true. An AC door strike will not
work with a DC power supply. The maximum supply for the AC or DC Input
Door Strike is not to exceed:
• 28 VAC \ 1 A max
• 30 VDC \ 1 A max
NC C NO General Relay General Relay
AC Output 1 Door Strike
Output 4 Output 4
The AC Output Door Strike receives power from the AC Input Door Strike
NC C NO General Relay General Relay
supply. The AC power output remains the same as the power supplied to the
Output 3 Output 3
AC Input Door Strike.
DC Output 1 Door Strike
Aux. Door Aux. Door
Output 2 Output 2
The DC Output Door Strike receives power from the AC or DC Input Door
Relay Relay
Strike supply. When using a DC Input Door Strike supply, the DC power
JW6 JW6
output remains the same as the input.
Connection for Connection for
Display and Display and Outputs 2 to 4
Keypad Keypad
See LT-969 Telephone Access System Installation and Operation Manual.
SW1 SW1
SW1
SW1 sets the Telephone Access controller RS-485 network address and
P6 P6
determines how the IP module get its IP address (if installed).
• Use DIP switches 1 to 6 to set the RS-485 network address.
JW2 JW2 JW7 JW7
• Keep DIP switch 7 at the factory set value.
• Set DIP switch 8 OFF to get IP address from DHCP server.
• Set DIP switch 8 ON to get IP address from TX3 Configurator software.
JW1 JW1
RS-485
LED/LAMP LED/LAMP
Supply Supply
The RS-485 connection consists of an input and output terminal. Connect the
RS-485 output terminal to the RS-485 input terminal of the next controller.
Power Power
ON/OFF Switch ON/OFF Switch
Connect the last controller on the network to the RS-485 input terminal.
OFF ON
Refer to LT-969 for end of line resistors to be used on the first and last nodes
Ground Ground
of network. The RS-485 terminal consists of + (positive), - (negative), and S
Terminal Terminal
(Shield) connections.
Ground Terminal
The Telephone Access system is equipped with a 16 gauge electrical wire
Power terminals for 16 Vac Power terminals for 16 Vac attached to the panel chassis Ground Terminal. Do not disconnect this wire.
16 Guage 16 Guage
transformer use 18 gauge transformer use 18 gauge
Wire Wire
Attach the end of the supplied wire to a suitable grounding wire 16 gauge or
wire (PS-4 or PS-4P) wire (PS-4 or PS-4P)
thicker. Attach the other end to the cold water ground.
for more information read the LT-969 Telephone Access System Manual
TX3 Telephone Access Installation Quick Reference
Address 1 Address 2 Address 3 Address 4
ON
OFF
1 8 1 8 1 8 1 8
available on CD, USB flash drive, or WWW.MIRCOM.COM
