2.4.3.3 Short circuit
When configured as supervised for a short circuit, the active state is open. A
single 47K ohm resistor is required for short supervision.
Note:
2.4.3.4 Supervise for open and short
When configured as supervise for both 'open' and 'short', the active state cannot
be open, therefore the active state is closed.
Two 22K ohm resistors are required for supervision.
Note:
2.4.4

Alarm Delay

Alarm delay is a TX3 Configurator defined parameter that specifies the amount
of time before an input raises an alarm condition. For more information see
section 3.6, Aperio Door Controller Inputs, on page 81.
TX3 Aperio Door Controller System Installation and Operation Manual
v. 1.6
LT-1160 Copyright 2019
Active when open

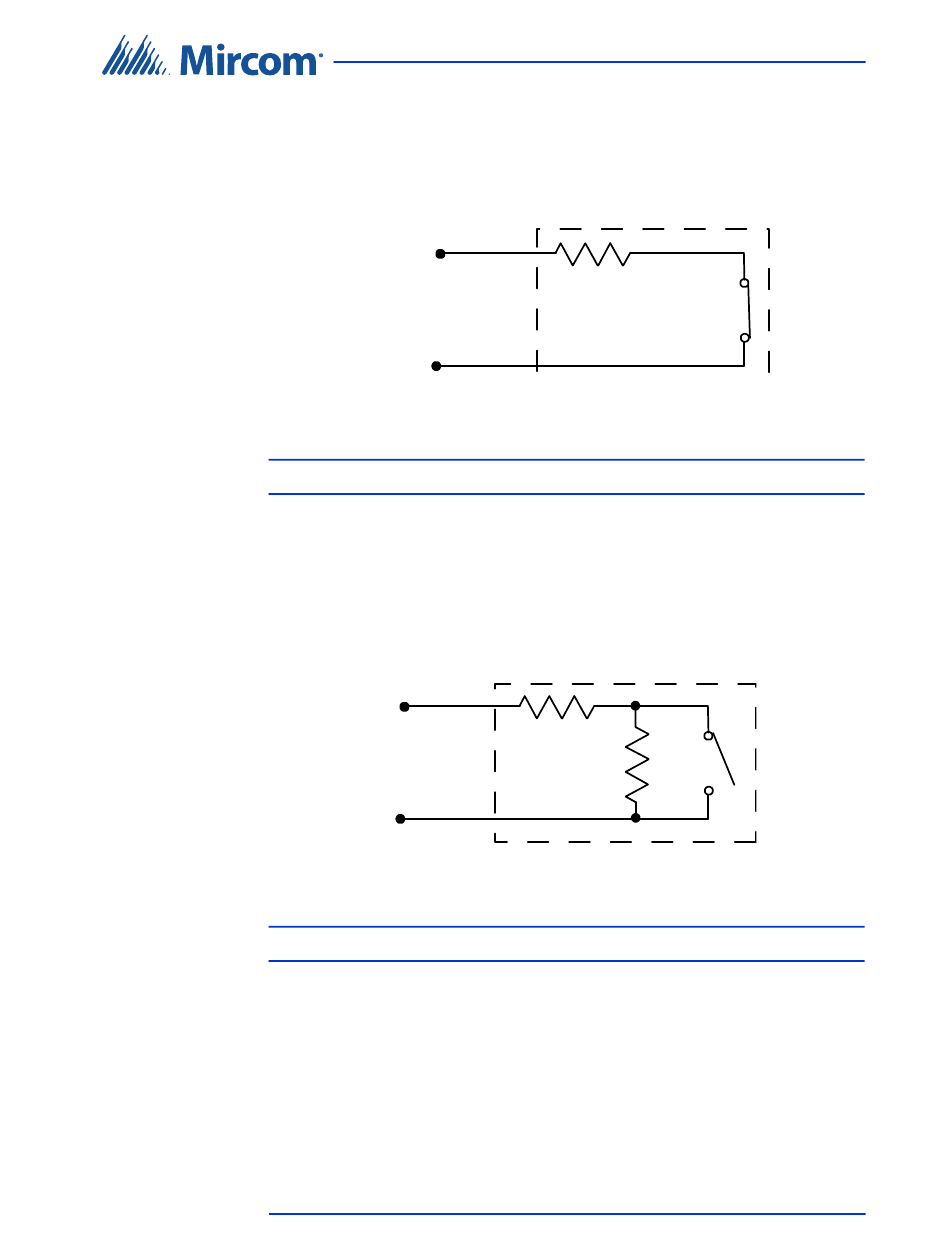

Figure 14. Input - Supervised for Short
The active state cannot be a short state.
Active when short
Figure 15. Input - Supervised for Open and Short
The active state cannot be an open state.
22 K ohms
22 K ohms
Installation and Setup
27
