2.3

Controller Board Description

The Aperio Door Controller controls access points according to how the inputs
and outputs are defined and correlated with each other. Inputs and outputs are
defined by how the access and control points are wired with the controller.
Before you begin you must establish how you want the outputs to behave as a
function of the inputs. For a complete description of correlation and the modes of
operation see section 3.8, Correlations, on page 85.
Keep a record of the wiring for configuration purposes.
2.3.1

Controller Panel LEDs

There are three status LEDs on the front of the Aperio Door Controller:
AC ON LED. AC ON LED illuminates steady green when AC power is present.
Trouble LED. Trouble LED flashes amber at a slow rate when there is a
common trouble condition in the system. Trouble consists of:
TX3 Aperio Door Controller System Installation and Operation Manual
20
LT-1160
Copyright 2019
P4

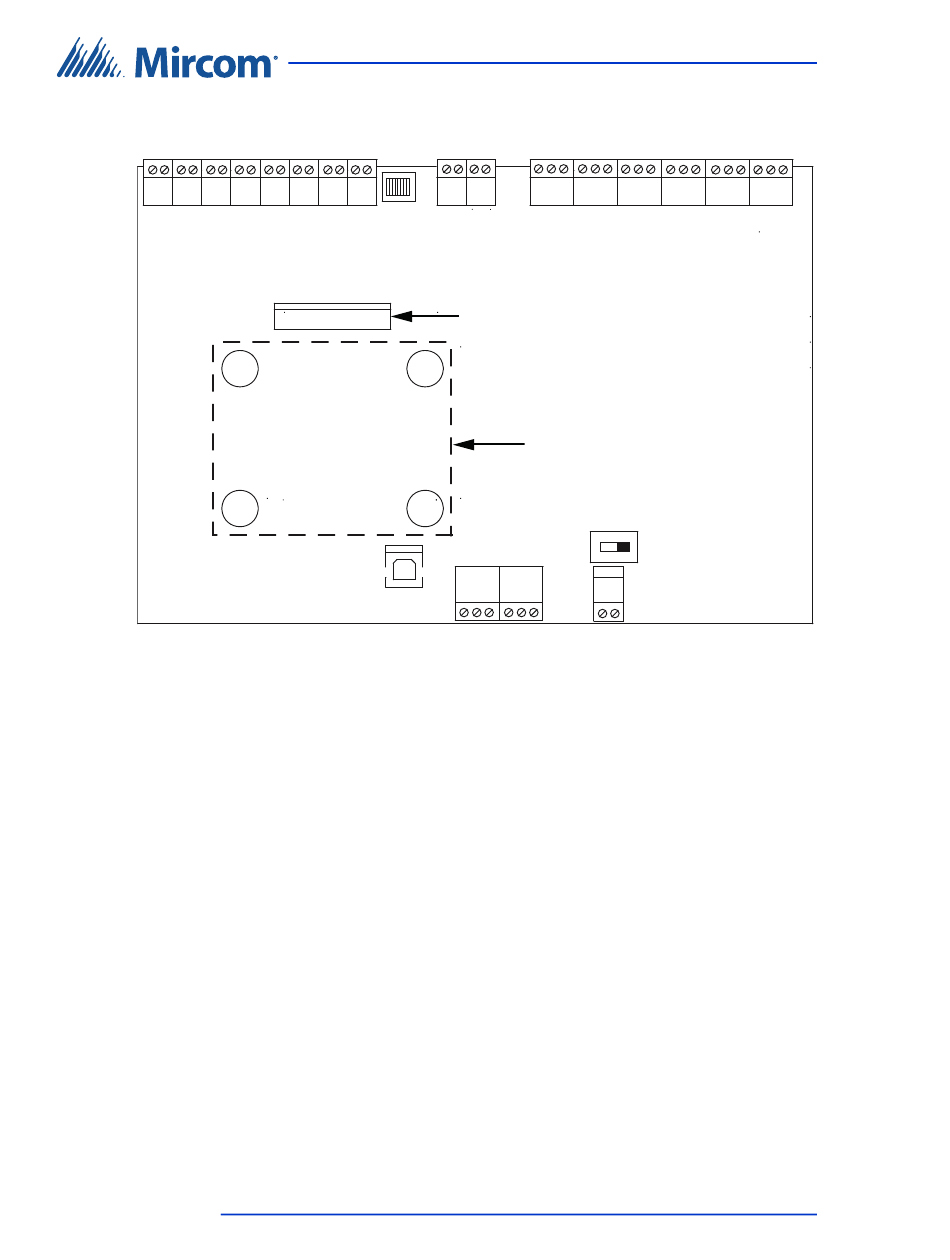

Figure 6.
IP Module Board Location
Interface connection
MD-921 IP Module
Board location
OFF
Installation and Setup
ON
SW1
v. 1.6
