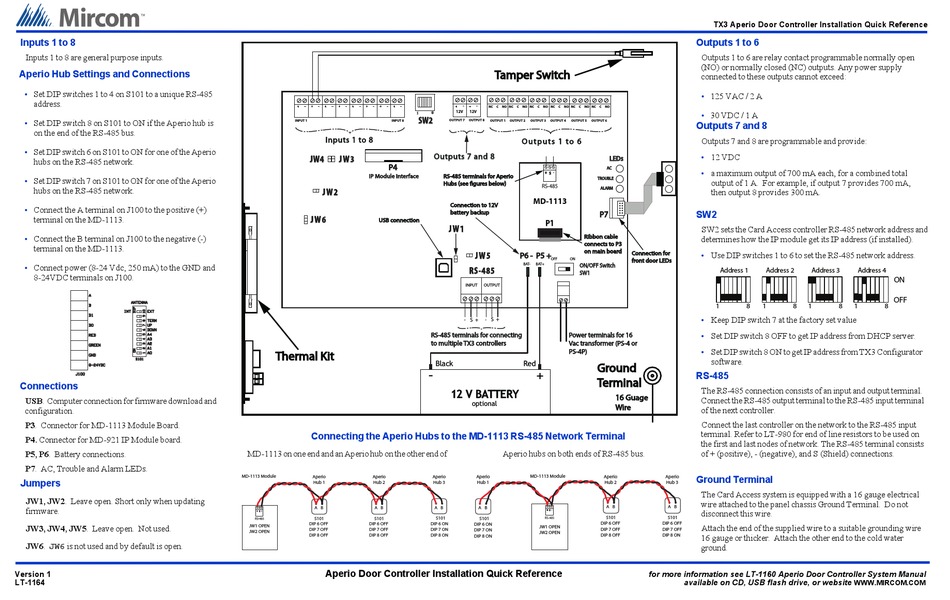

Mircom TX3 Installation Quick Reference

Inputs 1 to 8
Inputs 1 to 8 are general purpose inputs.
Aperio Hub Settings and Connections
Set DIP switches 1 to 4 on S101 to a unique RS-485
•
address.
• Set DIP switch 8 on S101 to ON if the Aperio hub is
on the end of the RS-485 bus.
• Set DIP switch 6 on S101 to ON for one of the Aperio
hubs on the RS-485 network.
• Set DIP switch 7 on S101 to ON for one of the Aperio
hubs on the RS-485 network.
Connect the A terminal on J100 to the positive (+)
•
terminal on the MD-1113.
Connect the B terminal on J100 to the negative (-)
•
terminal on the MD-1113.
Connect power (8-24 Vdc, 250 mA) to the GND and
•
8-24VDC terminals on J100.
A
ANTENNA ANTENNA
B
INT INT EXT EXT
D1 D1
TERM TERM
D0 D0 UP UP
DOWN DOWN
A4 A4
RED RED
A3 A3
A2 A2
GREEN GREEN
A1 A1
A0 A0
GND GND
S101 S101
8-24VDC 8-24VDC
J100 J100
Connections
USB. Computer connection for firmware download and
configuration.
P3. Connector for MD-1113 Module Board.
P4. Connector for MD-921 IP Module board.
P5, P6. Battery connections.
P7. AC, Trouble and Alarm LEDs.
Jumpers
JW1, JW2. Leave open. Short only when updating
firmware.
JW3, JW4, JW5. Leave open. Not used.
JW6. JW6 is not used and by default is open.
Version 1
LT-1164
SW1
SW1 sets the Telephone Access controller network address. Use
DIP switches 1 to 5 to set the network address. DIP switches 6, 7
and 8 should remain at the factory set values.
SW2 SW2
INPUT 1 INPUT 8
Inputs 1 to 8 Inputs 1 to 8
JW4 JW4 JW3 JW3
P4 P4
IP Module Interface IP Module Interface
JW2 JW2
Aperio
JW6 JW6
USB connection USB connection
Hub 1
A B
S101
DIP 6 ON
DIP 7 ON
DIP 8 ON
Thermal Kit Thermal Kit
Connecting the Aperio Hubs to the MD-1113 RS-485 Network Terminal
MD-1113 on one end and an Aperio hub on the other end of
MD-1113 Module Aperio Aperio
Hub 1 Hub 2
A B A B
S101 S101
DIP 6 OFF DIP 6 OFF
JW1 OPEN
DIP 7 OFF DIP 7 OFF
JW2 OPEN
DIP 8 OFF DIP 8 OFF
Aperio Door Controller Installation Quick Reference
Tamper Switch Tamper Switch
NC C NO NC C NO NC C NO NC C NO NC C NO NC C NO
12V 12V
OUTPUT 7 OUTPUT 8 OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6
O u t p u t s 1 to 6 O utpu ts 1 to 6
Outputs 7 and 8 Outputs 7 and 8
AC AC
RS-485 terminals for Aperio RS-485 terminals for Aperio
TROUBLE TROUBLE
Hubs (see figures below) Hubs (see figures below)
ALARM ALARM
MD-1113
Connection to 12V Connection to 12V
battery backup battery backup
MD-1113 Module P7 P7
Aperio
P1 P1
Hub 2
JW1 JW1
Ribbon cable Ribbon cable
connects to P3 connects to P3
on main board on main board
JW5 JW5
P6 - P6 - P5 + P5 +
OFF ON
A B
BAT- BAT+ ON/OFF Switch ON/OFF Switch
RS-485 RS-485
SW1 SW1
S101
INPUT OUTPUT
DIP 6 OFF
JW1 OPEN
DIP 7 OFF
JW2 OPEN
DIP 8 OFF
S +
- S + -
RS-485 terminals for connecting RS-485 terminals for connecting Power terminals for 16 Power terminals for 16
to multiple TX3 controllers to multiple TX3 controllers Vac transformer (PS-4 or Vac transformer (PS-4 or
PS-4P) PS-4P)
Black Red
Ground Ground
-
+
Terminal Terminal
12 V BATTERY 12 V
optional
Aperio hubs on both ends of RS-485 bus.
Aperio Aperio MD-1113 Module Aperio
Hub 3 Hub 1 Hub 2
A B A B A B
S101
S101 S101
DIP 6 OFF
DIP 6 ON DIP 6 ON
JW1 OPEN
DIP 7 ON DIP 7 OFF
DIP 7 ON
JW2 OPEN
DIP 8 ON DIP 8 OFF
DIP 8 ON
TX3 Aperio Door Controller Installation Quick Reference
Outputs 1 to 6
Outputs 1 to 6 are relay contact programmable normally open
(NO) or normally closed (NC) outputs. Any power supply
connected to these outputs cannot exceed:
125 VAC / 2 A
•
• 30 VDC / 1 A
Outputs 7 and 8
Outputs 7 and 8 are programmable and provide:
• 12 VDC
LEDs LEDs
• a maximum output of 700 mA each, for a combined total
output of 1 A. For example, if output 7 provides 700 mA,
then output 8 provides 300 mA.
SW2
Aperio
Hub 3
SW2 sets the Card Access controller RS-485 network address and
determines how the IP module get its IP address (if installed).
Use DIP switches 1 to 6 to set the RS-485 network address.
Connection for Connection for •
front door LEDs front door LEDs
A B
Address 1 Address 2
S101
DIP 6 OFF
DIP 7 OFF
1 8 1
DIP 8 ON
Keep DIP switch 7 at the factory set value
•
• Set DIP switch 8 OFF to get IP address from DHCP server.
• Set DIP switch 8 ON to get IP address from TX3 Configurator
software.
RS-485
The RS-485 connection consists of an input and output terminal.
16 Guage 16 Guage
Connect the RS-485 output terminal to the RS-485 input terminal
Wire Wire
of the next controller.
Connect the last controller on the network to the RS-485 input
terminal. Refer to LT-980 for end of line resistors to be used on
the first and last nodes of network. The RS-485 terminal consists
of + (positive), - (negative), and S (Shield) connections.
Ground Terminal
Aperio
Hub 3
The Card Access system is equipped with a 16 gauge electrical
wire attached to the panel chassis Ground Terminal. Do not
A B
disconnect this wire.
S101
DIP 6 OFF
Attach the end of the supplied wire to a suitable grounding wire
DIP 7 OFF
DIP 8 ON 16 gauge or thicker. Attach the other end to the cold water
ground.
for more information see LT-1160 Aperio Door Controller System Manual
available on CD, USB flash drive, or website
Address 3 Address 4
ON
OFF
8 1 8 1 8
WWW.MIRCOM.COM
