These options are explained in sections 3.8.1 to 3.8.3. The settings for these
options are made in the Add Correlation window (see Figure 43). To open the
Add Correlation window, click Add in the Correlation Configuration window.
Section 3.8.4 explains how to add a correlation to your job.
3.8.1

Event

The Event section is where you define what triggers the correlation. To define
an event, you have to specify the type of event (for example, access is granted at
an access point or an input becomes active) and where the event happens (either
an access point or an input).
To specify the type of event, make a selection from the When list. The choices in
the When list are the following:
•
•
•
•
•
TX3 Aperio Door Controller System Installation and Operation Manual
v. 1.6
LT-1160 Copyright 2019

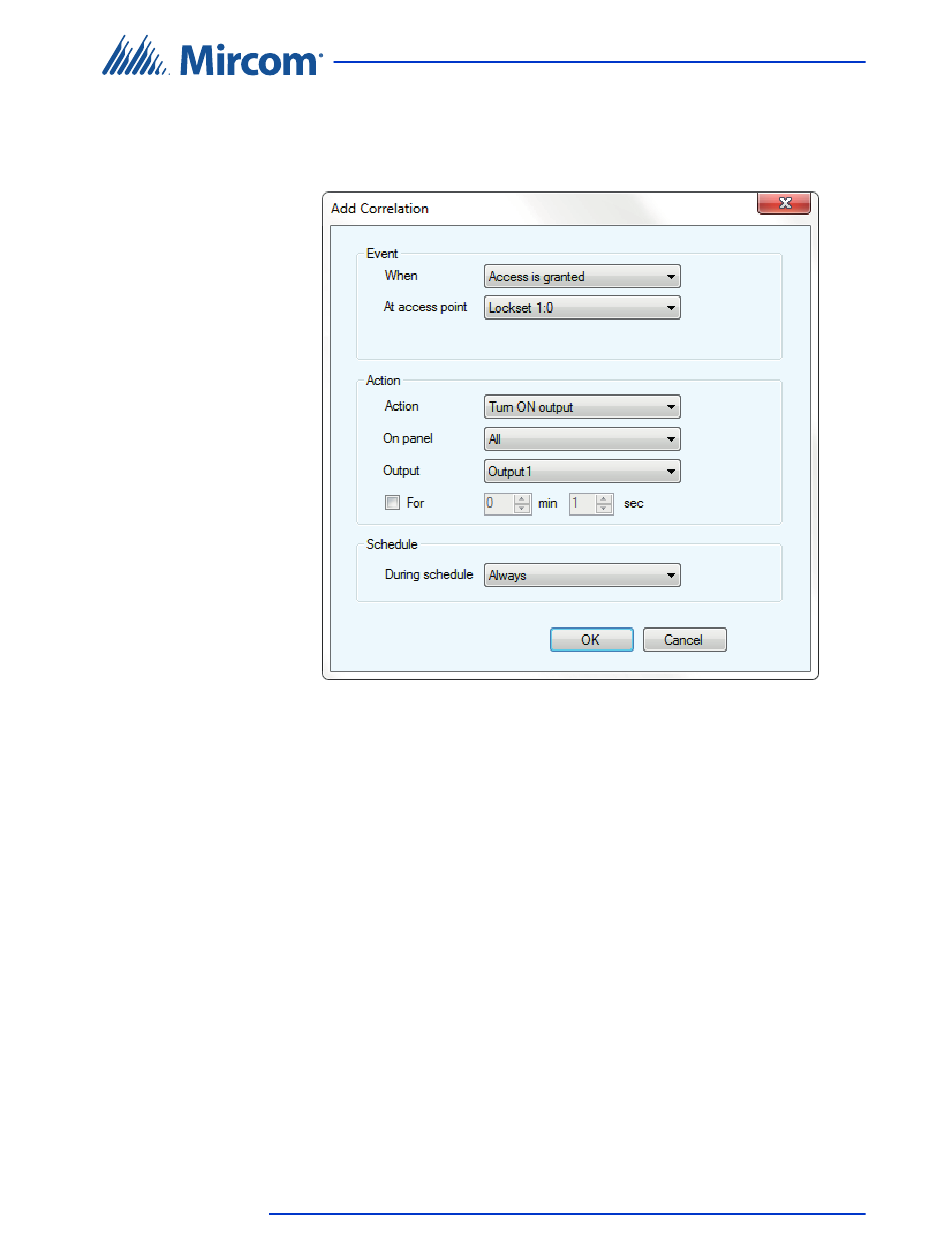

Figure 43. The Add Correlation window
Access is granted (at an access point)
Access is denied (at an access point)
Forced entry alarm (at an access point)
Forced entry alarm restored (at an access point)
Door held open alarm (at an access point)
