To access the outputs for a panel in the TX3 Configurator, expand the panel in the
job tree, select Inputs/Outputs, and then select the Outputs option in the
right pane. The available outputs and settings for the outputs are shown in the
right pane (see Figure 41).
Outputs 1 to 8 in Figure 41 correspond to outputs 1 to 8 on the Aperio Door
Controller panel. If you connected outputs to your Aperio Door Controller panel
(see section 2.5, Connecting the Outputs, on page 28), you must enter the
information regarding these outputs into the TX3 Configurator. If the
information is not entered into the TX3 Configurator, the panel will not be able to
control the outputs properly.
The following information and options can be entered for each output:
•
•
•
These options are explained in more detail in sections 3.7.1 to 3.7.3. Section
3.7.4 explains how to configure these options for an output.
3.7.1

Label

Use this option to provide a descriptive name for the output (for example,
"Aperio hub 1 power" or "Accessible door").
3.7.2

Assigned to

This option is not configurable for Aperio Door Controller panels. All outputs
are general purpose outputs for these panels.
TX3 Aperio Door Controller System Installation and Operation Manual
84
LT-1160 Copyright 2019

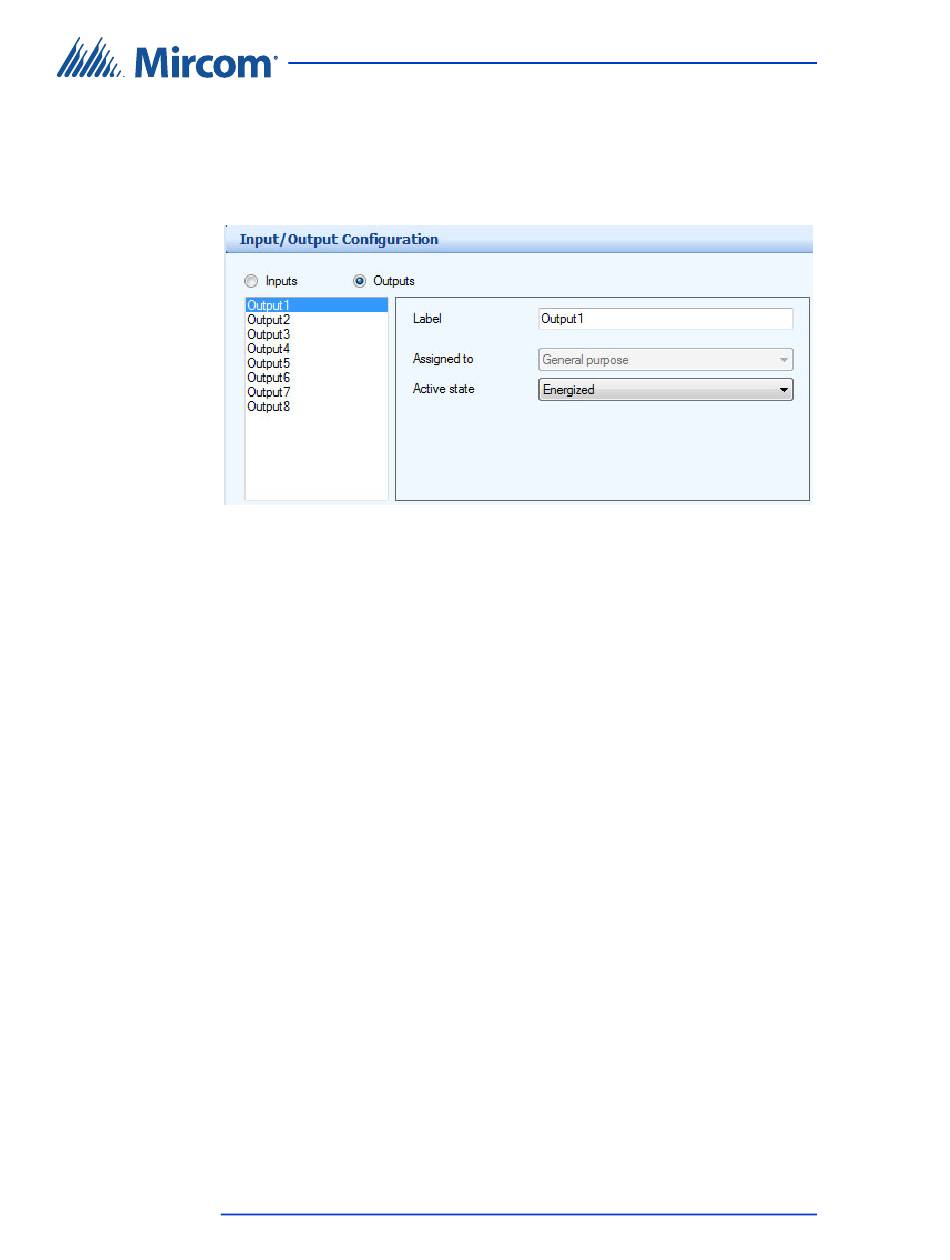

Figure 41. The Outputs configuration window
Label
Assigned to
Active state
Configuration
