Hub RS-485 Address
v. 1.6
LT-1160
The Aperio Programming Applications details page appears with
information about your hubs. The DIP switch value setting tells you
the RS-485 address for your hub
Hub Identifier

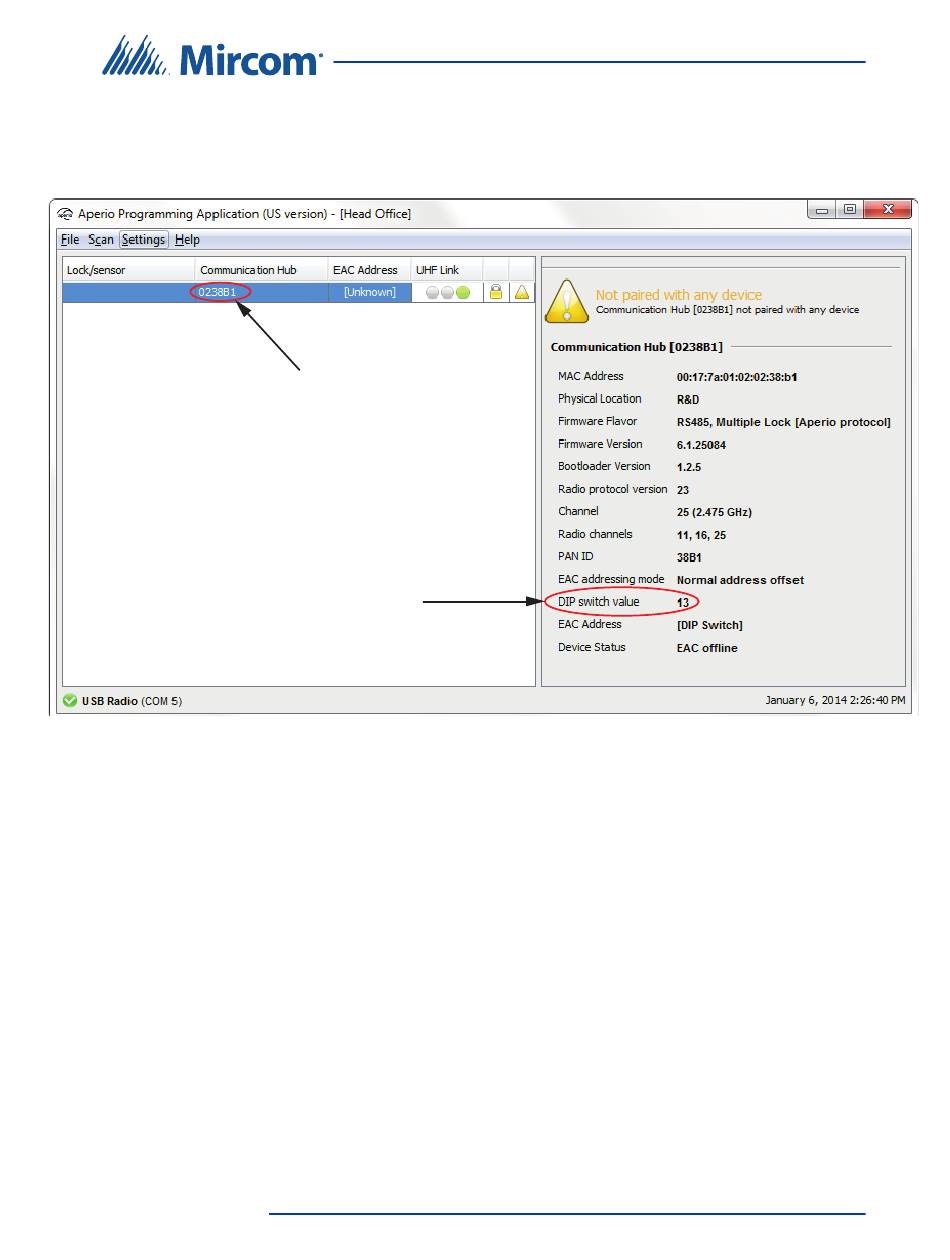

Figure 24.
The communications hub details page in the Aperio
Programming Application
5.
Right-click the hub you want to pair the device to, and then select
Communication hub > Pair with lock or sensor.
The Pair with lock or sensor window appears.
6.
Swipe an access card at the device.
The red LED on the device blinks three times. Proceed to the next step
when the LED stops blinking.
7.
Click Done in the Pair with lock or sensor window.
TX3 Aperio Door Controller System Installation and Operation Manual
Copyright 2019
Installation and Setup
41
