Two 22K ohm resistors are required for supervision.
Note:
2.3.7
Alarm Delay
Alarm delay is a configurator defined parameter that specifies the amount of time
before an input raises an alarm condition. For more information see Chapter 3
Configurable Features.
2.4
Connecting the Outputs
There are 8 outputs located on the top right hand corner of the card access
controller as shown in Figure 5. Outputs 1 to 6 are on the right side and outputs 7
and 8 are in the middle.
Each output is wired for a specific function or for an active state. Determine the
functional requirements for the device and connect the outputs accordingly. For
additional details and a complete description of the different types of
configurable functions see Chapter 3 Configurable Features.
After the installation and setup is complete, the functional state of all outputs
must be configured using the configurator software.
2.4.1
Specific functions
Each output is wired for the following specific functions:
•
•
•
Lock for reader A or B. This output assigns the main access door to either
reader A or reader B. When access is granted at the designated reader, this output
unlocks the door.
Version 1.00.3
TX3-CX Card Access System Installation and Operation Manual
Copyright 2009

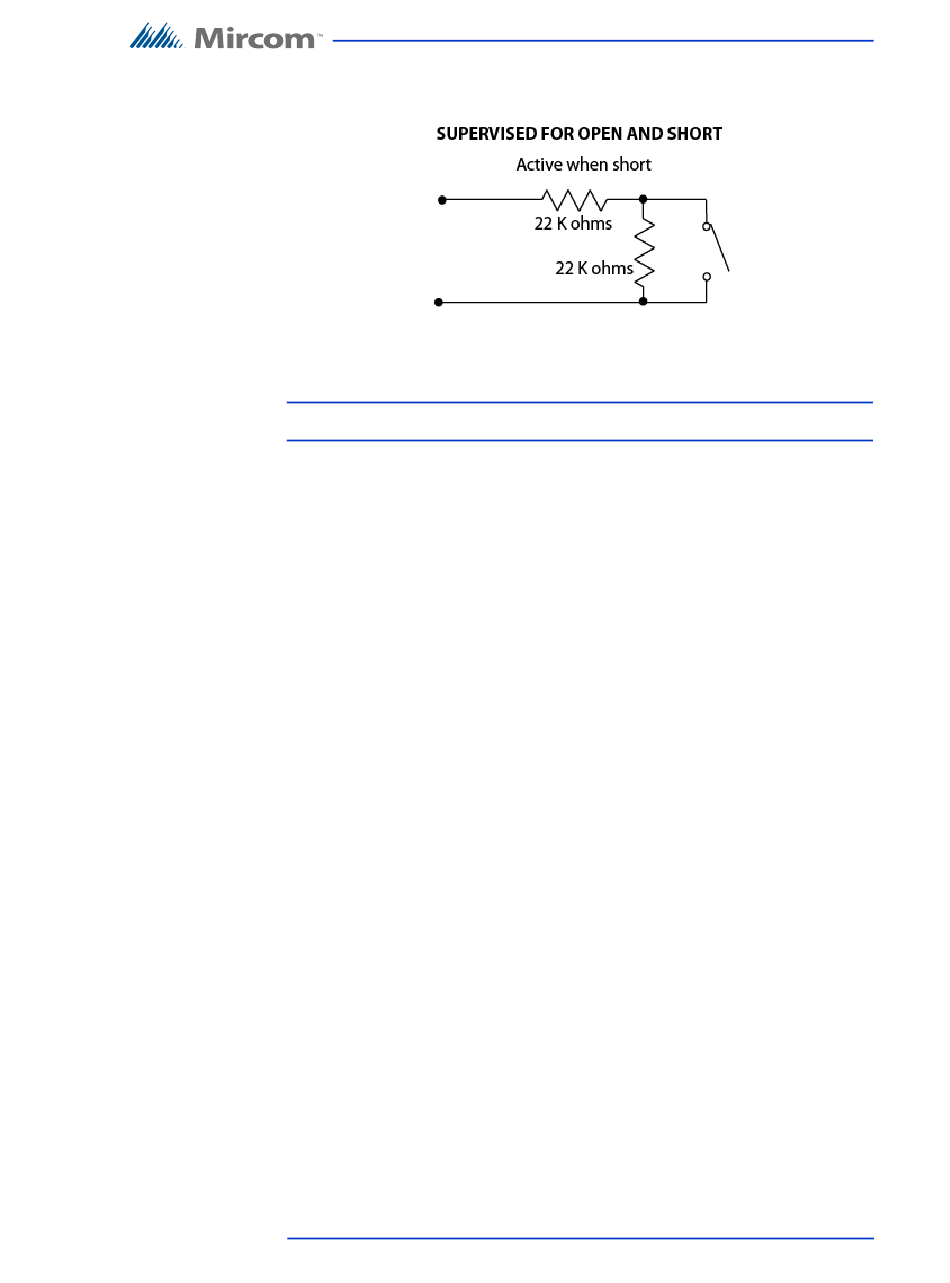

Figure 13. Input - Supervised for Open and Short
The active state cannot be an open state.
Lock for Reader A or B
Handicap lock for Reader A or B
General purpose output
Installation and Setup
25 (56)
