2.3.3

Power Supply

The power supply connection is situated at the bottom right of the main controller
board and receives 16 VAC, 40 VA. Use 18 AWG wiring. An external PS-4 or
PS-4P plug-in transformer connects to the power terminals. Refer to Figure 5 and
Figure 8.
2.3.4

ON/OFF Switch and Battery Back-up

Battery back-up is provided with a 12V 6.5AH battery which fits inside and at the
bottom of the unit. Connect the battery to the connectors located to the left of the
ON/OFF switch SW1 as shown in Figure 9.
Note:
TX3 Aperio Door Controller System Installation and Operation Manual
22
LT-1160 Copyright 2019
OFF
ON/OFF Switch
16 Vac IN
18 AWG

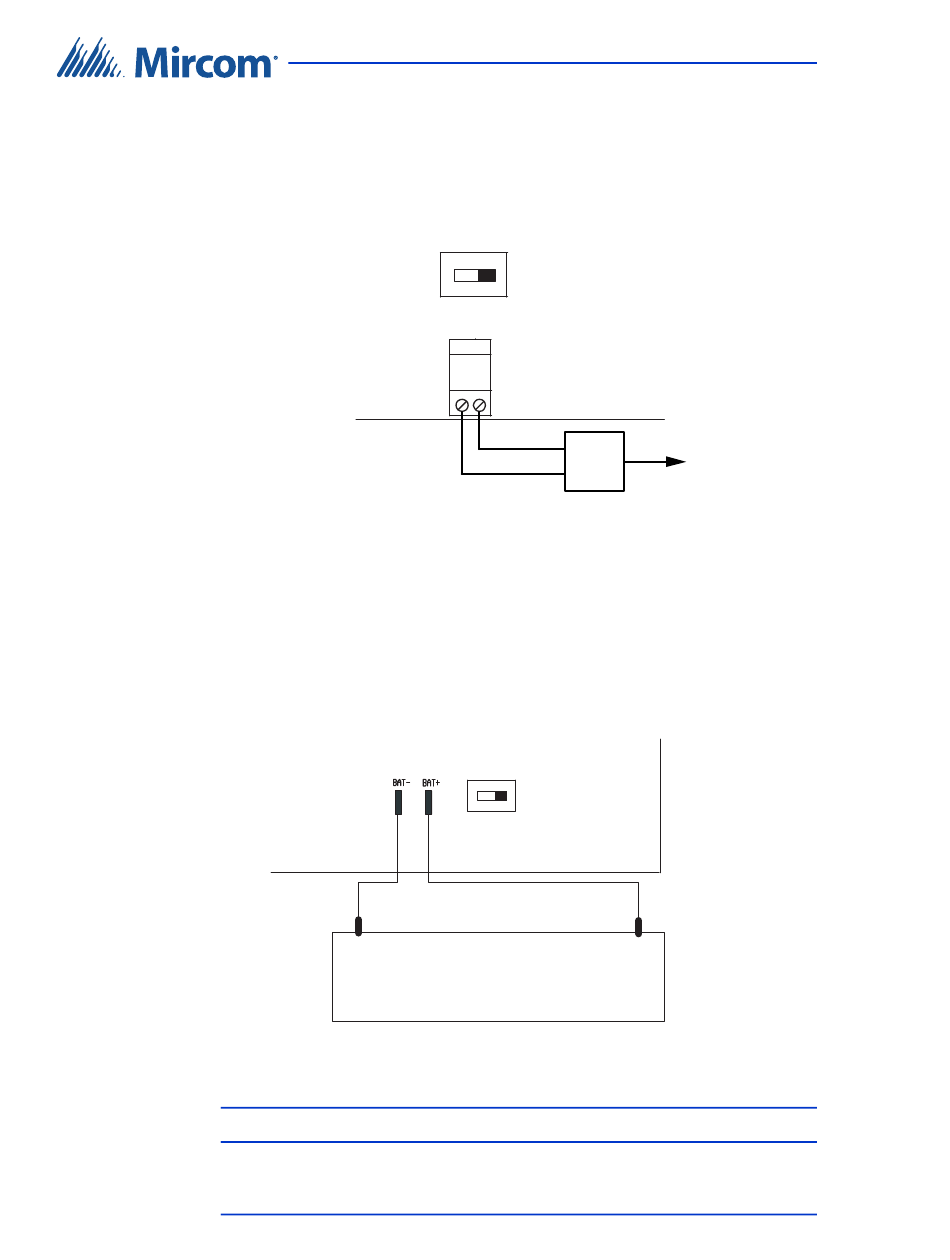

Figure 8. Power Supply
P6 − P5 +
Black
−
12 V BATTERY
Figure 9. Controller Board Battery Wiring
Battery backup is optional.
Installation and Setup
ON
SW1
16 Vac
16 Vac transformer
(PS-4 or PS-4P)
ON/OFF Switch SW1
Red
+
120 Vac
v. 1.6
