Installing And Configuring Aperio Hubs; Choosing Installation Locations; Figure 17 Outputs 7 And 8 Sample Connections - Mircom TX3 Series Installation And Operation Manual

Note:
Figure 17 shows a door strike activated and powered by output 8.
2.6

Installing and Configuring Aperio Hubs

Each TX3-CX-A8 Aperio Door Controller can by default support up to 8 devices
(16 devices with firmware version 3.2.2 and higher) and a maximum of 15
Aperio hubs. Each Aperio hub can support up to 8 devices.
This section covers the following topics.
•
•
•
•
2.6.1

Choosing Installation Locations

When choosing locations to install your TX3-CX-A8 Aperio Door Controllers,
Aperio hubs, and wireless devices, the following conditions MUST be met (see
Figure 18).
A.
B.
TX3 Aperio Door Controller System Installation and Operation Manual
30
LT-1160 Copyright 2019
If you use one or both of Outputs 7 and 8 to power your Aperio hubs,
do not use these outputs in your correlations (see section 3.8,
Correlations, on page 85).
Door Strike

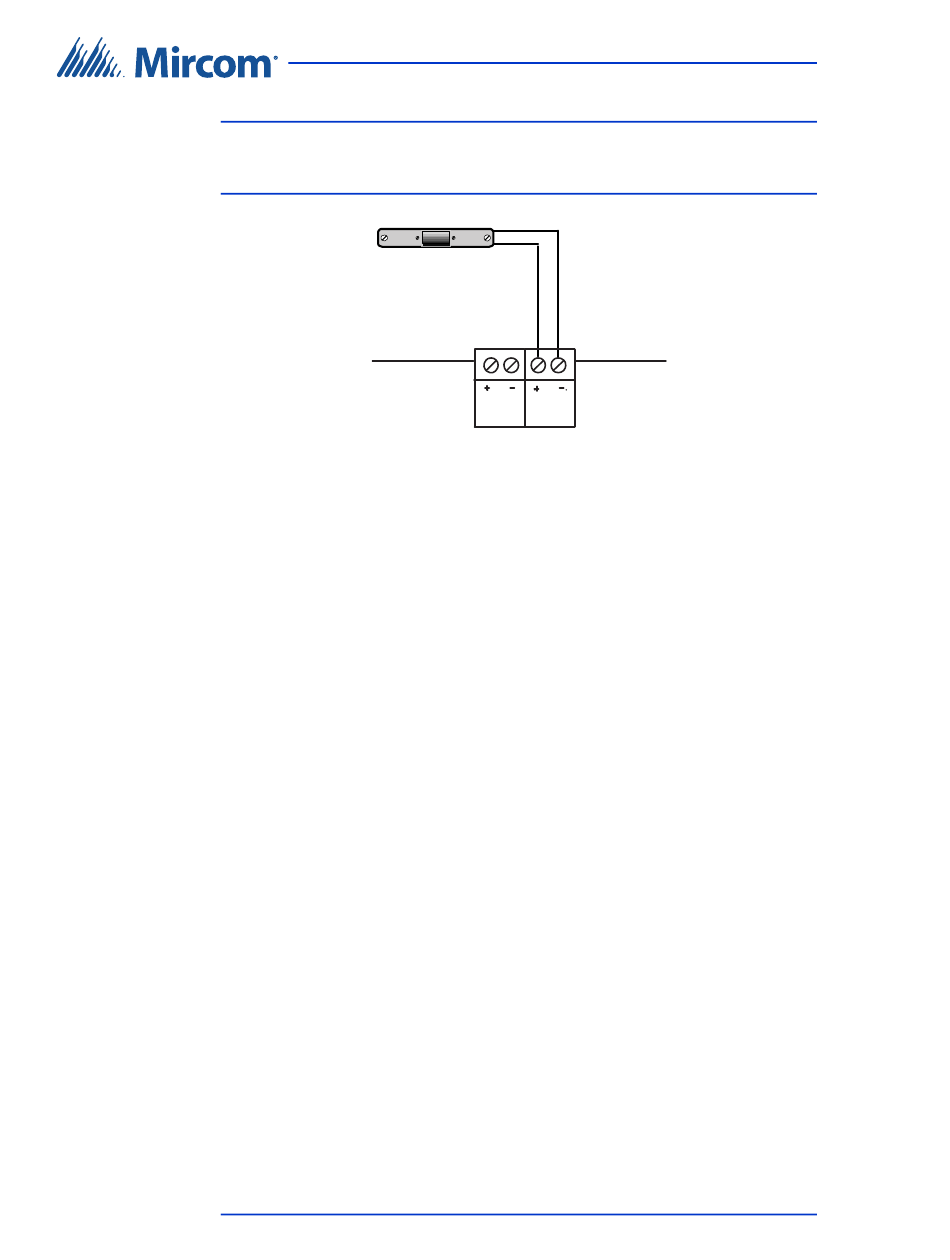

Figure 17. Outputs 7 and 8 Sample Connections
Choosing Installation Locations
Configuring the Aperio Hubs
Installing and Pairing Wireless Devices
Wireless Device Status LEDs
The length of the RS-485 bus connecting the Aperio Door Controller and
the Aperio hubs must be less than 3000 feet.
The distance between any two Aperio hubs must be at least 1 foot.
12V 12V
OUTPUT 7 OUTPUT 8
