JW4
JW3
JW2
2.9
Setting Jumpers
There are seven pre-set jumpers on the controller board as follows (refer to
Figure 35):
JW1. JW1 is used for updating firmware and by default is always open.
JW2. JW2 is used for updating firmware and by default is open. See Updating
Firmware on page 62.
TX3 Aperio Door Controller System Installation and Operation Manual
v. 1.6
LT-1160
Copyright 2019
SW2
JW7
JW8
JW5
JW1

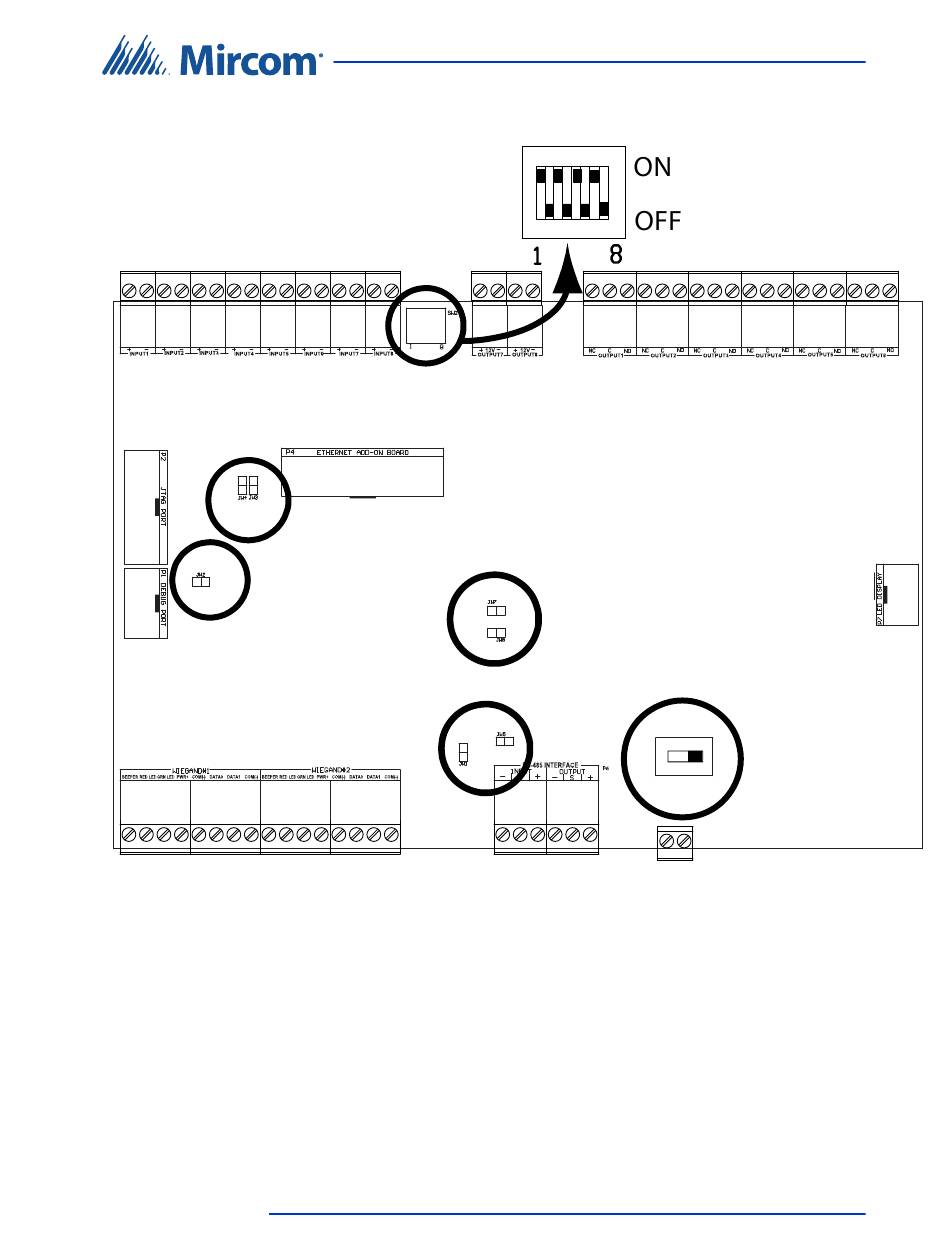

Figure 35.
Location of Jumpers JW1 to JW8 and Switches SW1 and
SW2
Installation and Setup
SW1
OFF
ON
Card Access Controller
Power ON / OFF Switch
61
