To set override credentials on a wireless device
1.
2.
3.
4.
5.
6.
TX3 Aperio Door Controller System Installation and Operation Manual
54
LT-1160 Copyright 2019
(credential type, credential, and the number of bits), see section
2.7.5.1, Reading Credential Information.
Right-click on the wireless device, and then select either Configure or
Lock/sensor > Configure.
Click Next until you reach the Override Credential page.
Select the credential type from the drop-down list. Note the following:
• If your credential type is Low frequency, select
HID Prox and EM Prox from the list.
• If your credential type is iClass, select iClass from the list.
Click Add.
In the Enter new override credential window, enter the
following information:
• Size in bits: the number of bits of the credential
• Credential: the credential value (in hexadecimal)
• Description: (optional) a description for the override credential
Your window should look similar to the following figure.

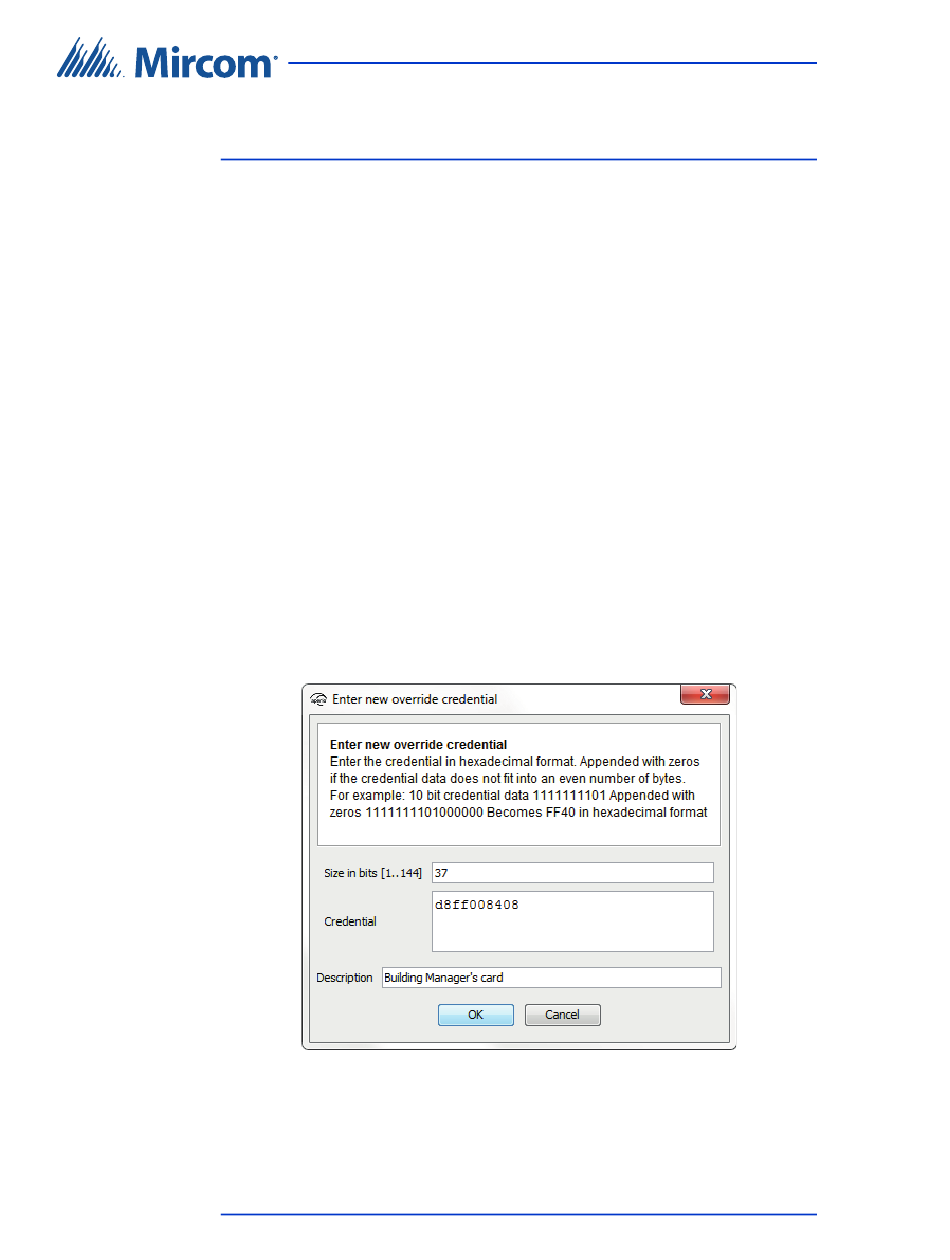

Figure 34. Enter new override credential
Click OK.
Installation and Setup
v. 1.6
